• RS-stocknr. 223-8825
    • Fabrikant Nuvotem Talema
    • Fabrikantnummer 0225P1-2-018K
    Nuvotem Talema
    2 Output Toroidal Transformer, 225VA, 18 V ac
    Afbeelding representeert productcategorie

    Encapsulated with Leads 230Vac Primary Transformers

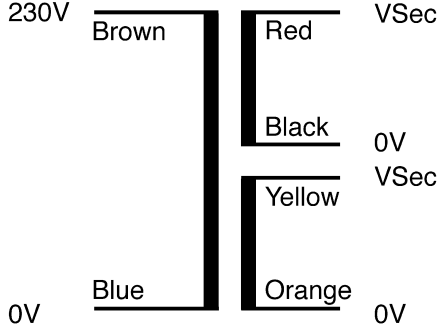

    High quality encapsulated toroidal transformers with a single 230Vac 50/60Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently. Designed for easy mounting with centre hole fixing.

    Fully encapsulated to UL94-V0
    Case material meets UL94-V0, Nylon 6.6
    Small size and low weight compared with traditional stacked lamination types
    Extremely low level of radiated magnetic field
    Very low induced noise (hum)
    Very low iron loss
    Double insulated primary leads
    Low surface temperature
    100% electrical and flash tested
    High quality manufacturing and testing in accordance to EN61558, EN60950, EN60065, VDE0551, VDE0550 and BS415

    Leads PVC insulated 150mm long, 10mm stripped and tinned
    Secondary voltage tolerance <1% at nominal input and full load
    Maximum ambient operating temperature + 40°C
    UL recognised for insulation Class A (105°C)
    EN61558 Approved to insulation Class E (120°C)
    Case material UL94-V0, Nylon 6·6




    • Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
    Selecteer de filters die u nodig heeft om een soortgelijk product te vinden.
    Dimensions112 Dia. x 47mm
    Fixing Hole DiameterM6
    Number of Outputs2
    Power Rating225VA
    Primary Voltage Rating230V ac
    Secondary Current6.25A
    Secondary Voltage Rating18 V ac
    Alles selecteren

    Product beoordelen - Inloggen / Registreren

    € 78,26
    Prijs Each
    • Aantal 1

      € 78,26

    • Aantal 10

      € 72,20

    • Aantal 25

      € 69,35

    • Aantal 50

      € 66,33

    • Aantal 100

      € 63,32

    Op voorraad - levertijd 3 à 4 werkdagen.
