Anti Vibration Mounts

Anti-vibration mounts (a.k.a. AV mounts) act as a low-cost vibration dampener, noise reducer or shock absorber in many machine applications. Anti-vibration mounts have male and female threads and are often made from stainless steel and natural rubber. The range of anti-vibration mounts include:

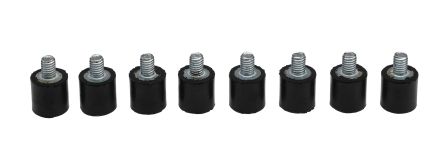

Cylindrical mounts, also known as bobbins are used in compression or shear applications. They include waisted bobbins which have low shear stiffness properties and various thread configurations and hexagon bobbins which are designed so that mountings can be held with a spanner to avoid twisting the rubber during installation. They are commonly found in diesel engines, generator sets, control panels and industrial machinery.

Buffers and rubber bumpers include flat buffers used in compression and have various mounting configurations, and conical buffers which give high levels of deformation under impact/load and provide progressive stiffness to absorb energy which protects equipment. Applications include agriculture, suspension and general industrial machinery.

Failsafe anti-vibration mounts like captive transit are designed with an integral overload stop to control movement of equipment during transit. They are universal, cost-effective, high performing and easy to install. Used in shear compression with 95% vibration reduction. Cab and cone are robust with high horizontal stiffness and excellent vibration isolation properties. They can be supplied with bump and rebound washers for failsafe mounting and low-profile installation. Applications include engines and construction.

Silent marine anti-vibration mounts were designed for use with marine propulsion engines and can accommodate thrust. They are high performing, easy to install and cost-effective. Applications include marine propulsion engines, generating sets, diesel engines, vehicles, pumps and compressors.

Standard rubber anti-vibration mounts are low cost and include turret, flanged circular and sandwich. The turret was designed for static applications in the HVAC industry. The bonded rubber encapsulates the metal parts to avoid corrosion.

Levelling feet allow machinery to be levelled while vibration and noise are reduced. Applications include machine tools, lathes, presses, heavy industrial equipment, conveyors, food processing and pharmaceutical.


...
Lees meer Lees minder

Filters

1 - 20 van 1249 producten worden weergegeven
Resultaten per pagina
Omschrijving Prijs Anti Vibration Mount Type Type Thread Size Diameter Trade Name Bore Diameter Overall Height Foot Height Foot Shape Bore Length Static Load Capacity Material Repeated Shock Deflection Outer Diameter
RS-stocknr. 543-232
FabrikantRS PRO
€ 5,99
1 Bag of 50
Bag(s)
- Feet - 19mm - - 10.2mm - Round - - PE - -
RS-stocknr. 382-2386
FabrikantRS PRO
€ 5,18
1 Bag of 100
Bag(s)
- Feet - 12.5mm - - 7mm - Round - - PE - -
RS-stocknr. 543-248
FabrikantRS PRO
€ 6,98
1 Bag of 50
Bag(s)
- Feet - 15.5mm - - 8.9mm - Round - - PE - -
RS-stocknr. 543-513
FabrikantRS PRO
€ 7,30
1 Bag of 50
Bag(s)
- Feet - 19mm - - 15.9mm - Round - - LDPE - -
RS-stocknr. 126-4927
FabrikantRS PRO
€ 12,18
1 Bag of 4
Bag(s)
Male Buffer Foot Male Only M5 12.5mm - - 15mm - - - - Natural Rubber - -
RS-stocknr. 126-3940
FabrikantRS PRO
€ 13,94
1 Bag of 4
Bag(s)
Male to Male Bobbin Male to Male M5 12.5mm - - 20mm - - - - Natural Rubber - -
RS-stocknr. 126-4289
FabrikantRS PRO
€ 15,66
1 Bag of 4
Bag(s)
Male to Female Bobbin Male to Female M5 16mm - - 10mm - - - - Natural Rubber - -
RS-stocknr. 126-4330
FabrikantRS PRO
€ 14,04
Each
Aantal stuks
Male to Female Bobbin Male to Female M10 6mm - - 45mm - - - - Natural Rubber - -
RS-stocknr. 189-3277
FabrikantRS PRO
€ 2,60
Each (In a Pack of 4)
Aantal stuks
Male Buffer Foot Female Foot, Male Only M8 40mm - - 27mm - - - - Natural Rubber - -
RS-stocknr. 189-3278
FabrikantRS PRO
€ 2,858
Each (In a Pack of 4)
Aantal stuks
Male to Female Bobbin Male to Female M8 25mm - - 22mm - - - - Natural Rubber - -
RS-stocknr. 126-4279
FabrikantRS PRO
€ 17,61
1 Bag of 2
Bag(s)
Male to Male Bobbin Male to Male M10 38mm - - 38mm - - - - Natural Rubber - -
RS-stocknr. 189-3279
FabrikantRS PRO
€ 1,313
Each (In a Pack of 4)
Aantal stuks
Male to Female Bobbin Male to Female M6 20mm - - 20mm - - - - Natural Rubber - -
RS-stocknr. 126-3934
FabrikantRS PRO
€ 5,62
Each
Aantal stuks
Female Buffer Foot Anti-Vibration Mount M10 40mm - - 25mm 25mm Cylindrical - 86.4 - - -
RS-stocknr. 189-3289
FabrikantRS PRO
€ 1,313
Each (In a Pack of 4)
Aantal stuks
Male to Female Bobbin Male to Female M6 20mm - - 15mm - - - - Natural Rubber - -
RS-stocknr. 196-1325
FabrikantRS PRO
€ 2,118
Each (In a Pack of 4)
Aantal stuks
Male to Male Bobbin Male to Male M6X20 20mm - - 20mm - - - - Rubber, Steel - -
RS-stocknr. 126-3882
FabrikantRS PRO
€ 81,55
Each
Aantal stuks
- - M10 144mm - - 36mm 36mm Round - 330 Natural Rubber - -
RS-stocknr. 126-4280
FabrikantRS PRO
€ 22,09
1 Bag of 2
Bag(s)
Male to Male Bobbin Male to Male M8 45mm - - 36mm - - - - Natural Rubber - -
RS-stocknr. 196-1334
FabrikantRS PRO
€ 5,995
Each (In a Pack of 2)
Aantal stuks
Male to Male Bobbin Male to Male M10X30 50mm - - 50mm - - - - Rubber, Steel - -
RS-stocknr. 126-4281
FabrikantRS PRO
€ 16,74
Each
Aantal stuks
Male to Male Bobbin Male to Male M10 60mm - - 60mm - - - - Natural Rubber - -
RS-stocknr. 189-3299
FabrikantRS PRO
€ 18,95
Each
Aantal stuks
Marine Mount Marine Mount M12 - - - 40mm - - - - Rubber - -
