Adjustable Height Mount 10 Degree Articu

Datasheets
Wetgeving en compliance
Conform
Land van herkomst: IN
Productomschrijving

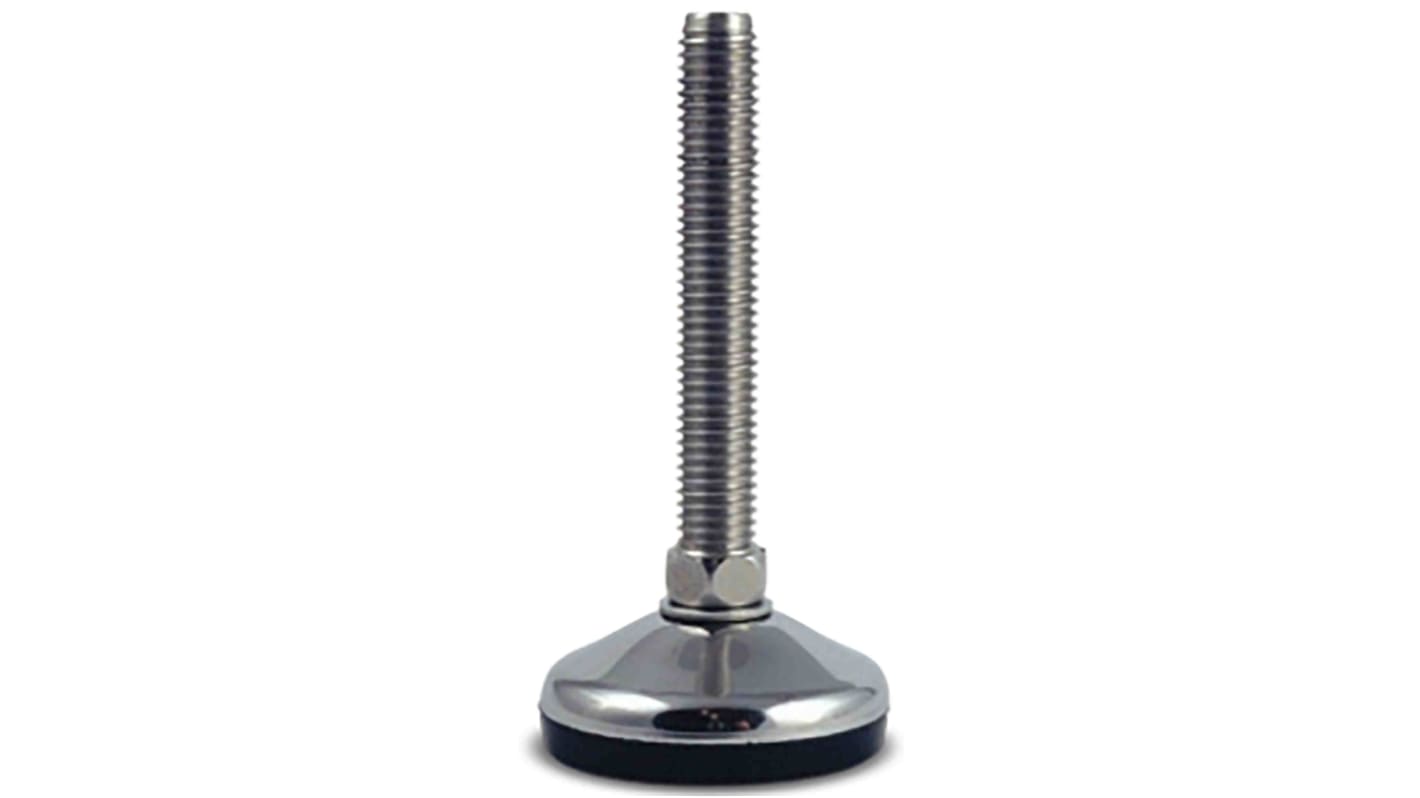

RS PRO Adjustable Height Mount

The RS PRO adjustable height mount has a thread size of M16 and dimensions of 100mm x 138mm x 80mm (thread length x height x diameter). The base rubber is made of oil resistant 80ShoreA vulcanized NBR along with stainless steel (304) thread and base plate.

Features and Benefits

• Static load capacity of 1000kg
• Tilt angle of 10°

Applications

• Food processing units
• Packing systems
• Conveyor systems

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007

Specificaties
Kenmerk Waarde
Static Load Capacity 1000kg
Thread Size M16
Thread Length 100mm
Tilt Angle 10°
Foot Material Stainless Steel
Diameter 80mm
Shore Hardness 80Shore A
Overall Height 138mm
