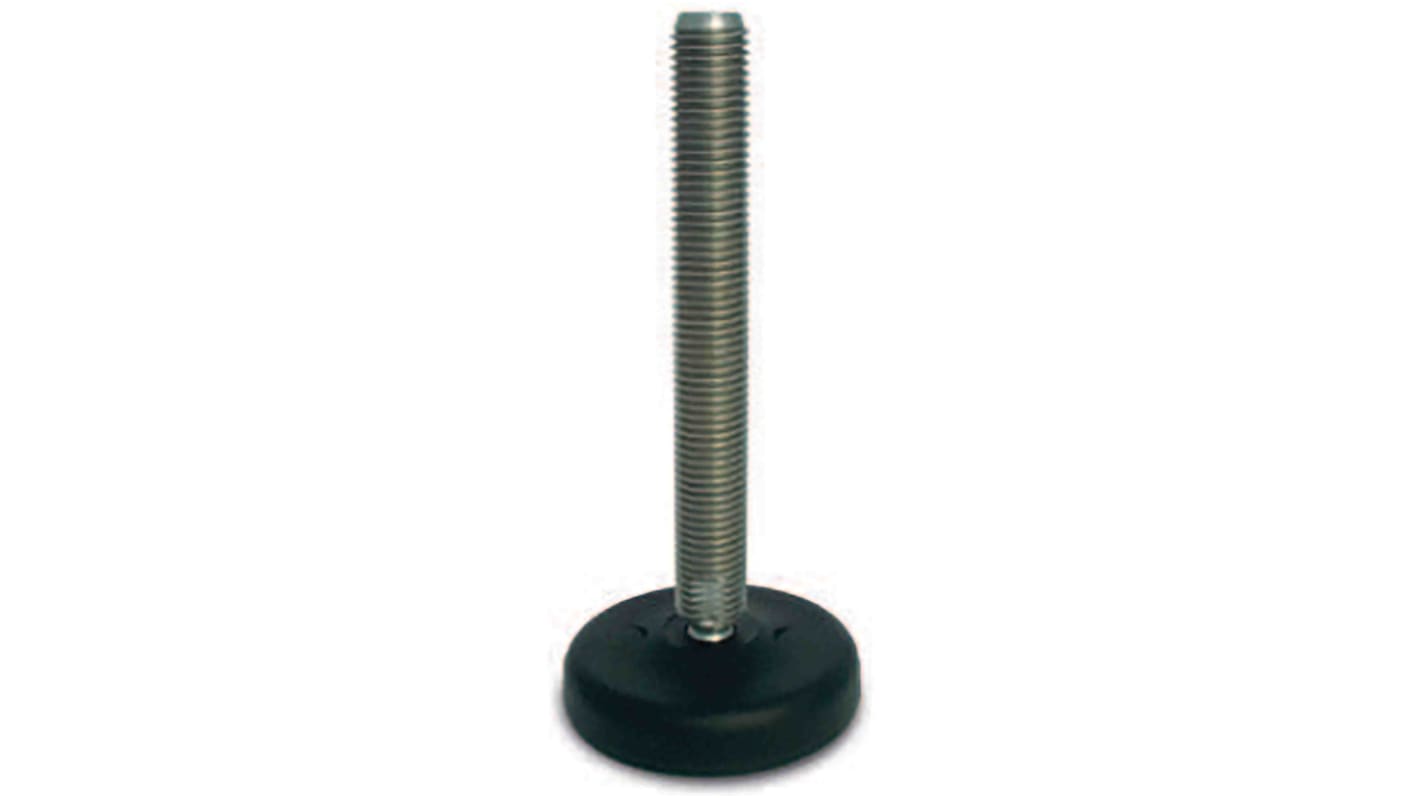

RS PRO M20 Adjustable Foot, 1800kg Static Load Capacity 30° Tilt Angle
- RS-stocknr.:
- 196-5343
- Fabrikant:
- RS PRO
31 op voorraad - levertijd is 1 werkdag(en).
Toegevoegd
Prijs Per stuk
€ 24,03
(excl. BTW)
€ 29,08
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 + | € 24,03 |
- RS-stocknr.:
- 196-5343
- Fabrikant:
- RS PRO
Datasheets
Wetgeving en compliance
Productomschrijving
The RS Pro Height Adjustable mounts are used for levelling and support in many applications including food processing units, packing systems and conveyor systems. The Plastic Foot base is made from a black polyamide material, reinforced by fibber glass, along with the Stainless-Steel thread these are often used in food safe and cleanroom applications.
Used to stabilise equipment and machinery on uneven surfaces
Anti Vibration
Anti Vibration
Specificaties
Kenmerk | Waarde |
|---|---|
| Static Load Capacity | 1800kg |
| Thread Size | M20 |
| Thread Length | 100mm |
| Tilt Angle | 30° |
| Base Material | Stainless Steel |
| Height | 130mm |
| Maximum Adjustment Height | 45mm |
| Minimum Adjustment Height | 115mm |
