TE Connectivity GET Series Male Terminal for use with Automotive Connectors

Datasheets
Wetgeving en compliance
Conform
Land van herkomst: US
Productomschrijving

TE Connectivity Contacts for GET 0.64mm Connector System

Crimp receptacle contacts for GET 0.64mm connector system mader from copper alloy with a tin plating. These GET 0.64mm receptacle contacts have a <4.0 N insertion force and a 75 N permanent retention force.
GET 0.64mm receptacle contact, stock number 718-7145: 0.5 to 0.75mm2 (18.5 - 20 AWG) wire range, 1.40 - 2.06mm wire insulation diameter
GET 0.64mm receptacle contact, stock number 756-0843: 0.22 to 0.35mm2 (22 - 24 AWG) wire range, 1.10 - 1.65mm wire insulation diameter

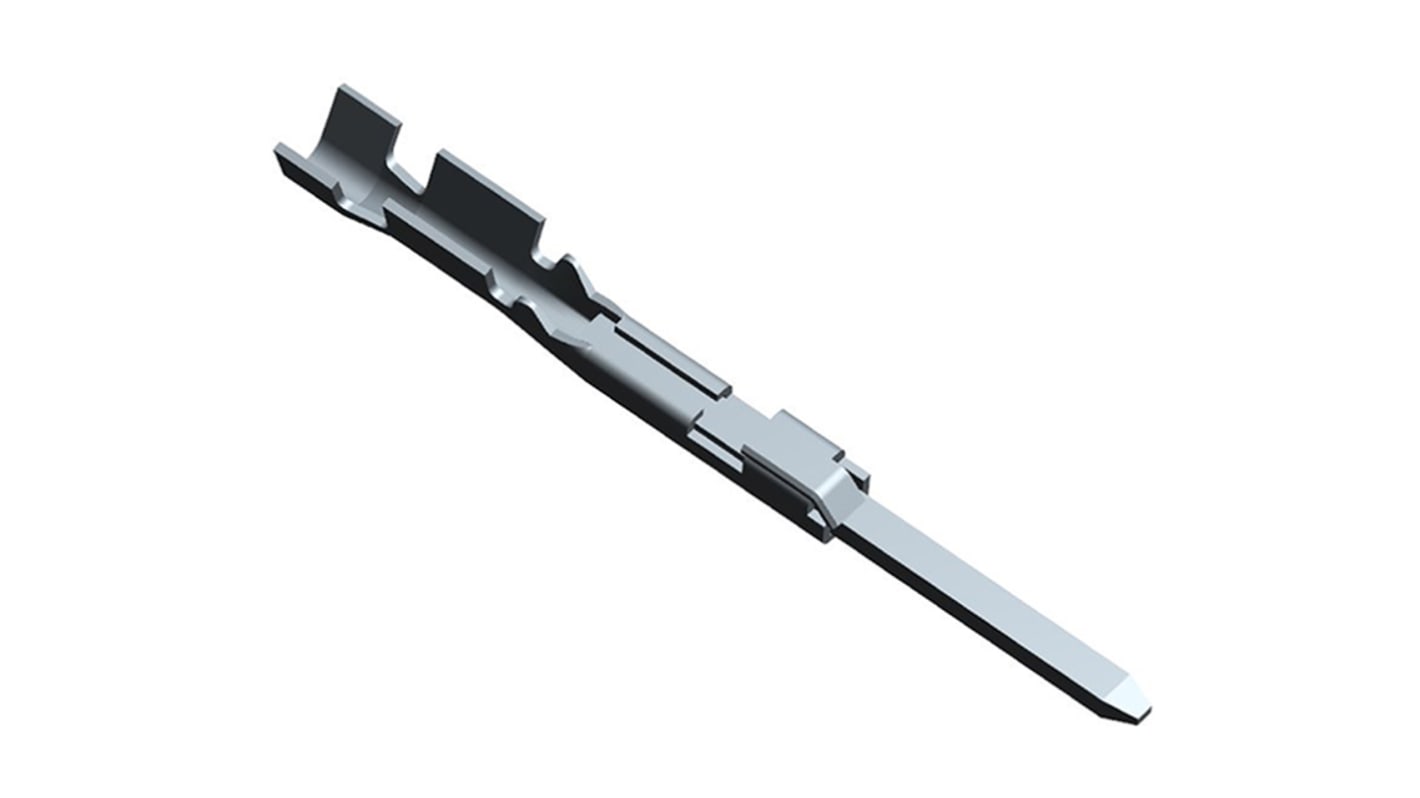

GET 0.64mm tab contact, stock number 909 7823: 0.22 to 0.35mm2 (22 - 24 AWG) wire range, 1.10 - 1.4mm wire insulation diameter

0.64mm TE Connectivity GET Connector

Specificaties
Kenmerk Waarde
Accessory Type Terminal
For Use With Automotive Connectors
Series GET
Gender Male
Niet meer leverbaar – bekijk hieronder eventuele alternatieven of neem contact op met onze Customer Service
