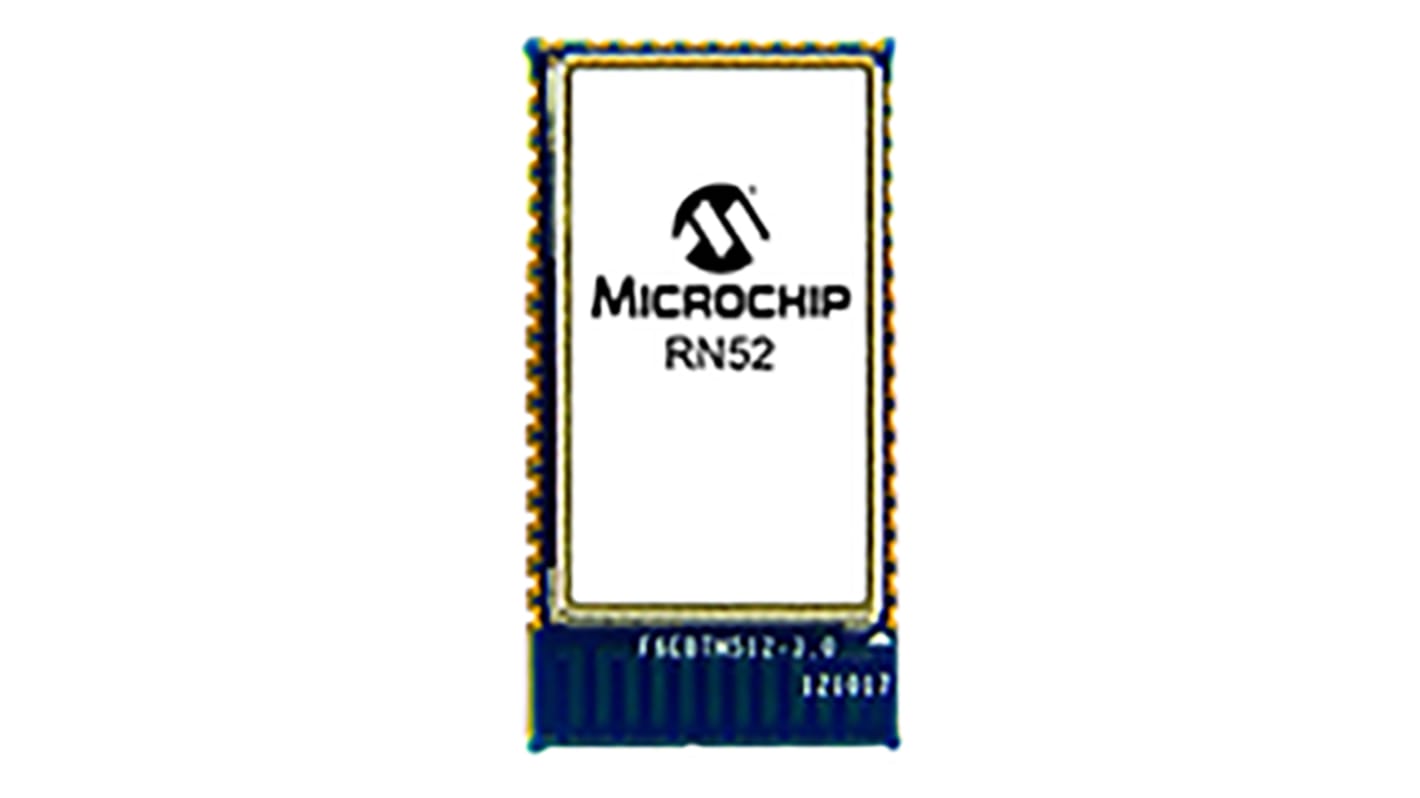

Microchip Technology RN52-I/RM116 Bluetooth Chip Bluetooth 3.0

  • RS-stocknr. 177-9762
  • Fabrikantnummer RN52-I/RM116
  • Fabrikant Microchip
Datasheets
Wetgeving en compliance
Conform
Land van herkomst: CN
Productomschrijving

The RN52 Bluetooth audio module provides a fully integrated solution for delivering high-quality stereo audio in a small form factor. It combines a Class 2 Bluetooth radio with an embedded DSP processor, controlled and configured by simple ASCII commands and GPIO. It integrates RF, a baseband controller, and DSP, making it a complete Bluetooth audio wireless link. The RN52 supports HSP/HFP, A2DP, AVRCP, SPP, and iAP profiles. The RN52 is easily integrated into any system via a simple UART interface.

Bluetooth version 3.0 audio module, fully compatible with Bluetooth version 2.1+EDR, 1.2, and 1.1
Software configurable through commands over UART console interface
Embedded Bluetooth stack profiles: SPP, A2DP, HFP/HSP, and AVRCP
Supports iAP profile discovery for iPhone® and iPod® Bluetooth accessories
Postage-stamp-sized form factor, 13.5 x 26 x 2.7mm
Dual-channel, differential audio input and output for highest quality audio

Specificaties
Kenmerk Waarde
Bluetooth Class Class 2
Bluetooth Version Bluetooth 3.0
Maximum Output Power 4dBm
Receiver Sensitivity -85dBm
Dimensions 26 x 13.5 x 2.7mm
Height 2.7mm
Length 26mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Width 13.5mm
9 op voorraad - levertijd is 1 werkdag(en).
Prijs Each
16,98
(excl. BTW)
20,55
(incl. BTW)
Aantal stuks
Per stuk
1 - 9
€ 16,98
10 - 24
€ 15,76
25 - 99
€ 15,73
100 +
€ 15,37
