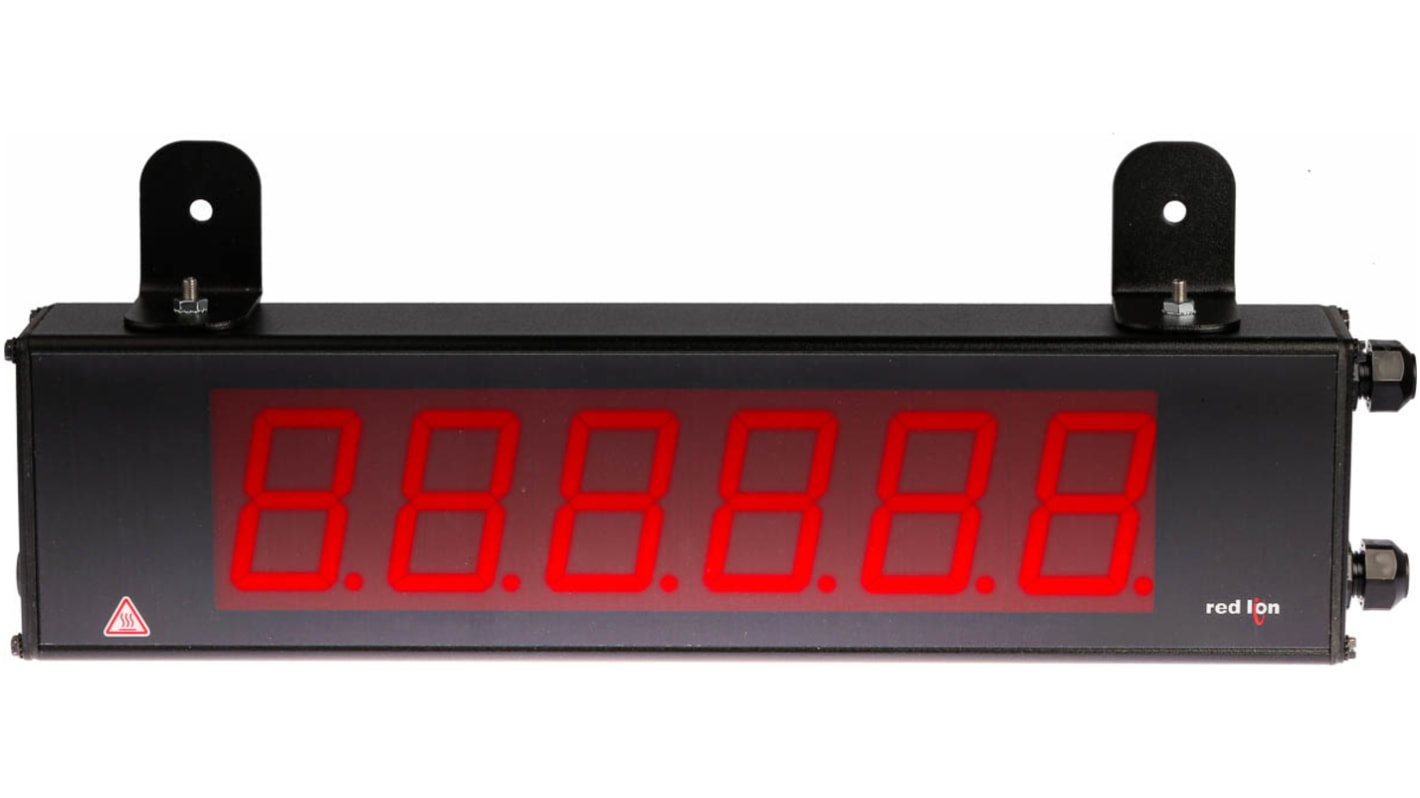

Red Lion 6 Digit, LED, Digital Counter, 35kHz

  • RS-stocknr. 653-7609
  • Fabrikantnummer LD200600
  • Fabrikant Red Lion
Datasheets
Wetgeving en compliance
Conform
Land van herkomst: US
Productomschrijving

LD-series large displays, 57 / 101 mm character height

LED large displays with various digit heights
Light fully aluminium housing with mounting bracket
Digital height readable from up to 50 m

Simple counter version and/or tachometer version
Multipurpose and flexible thanks to 8 different operating modes and internal relay and interface.
High IP64 protection rating

Simple timer/cycle counter version or timer relay version
High resolution of up to 0.001 seconds
High IP65 protection rating

Specificaties
Kenmerk Waarde
Count Mode Seconds
Display Type LED
Input Type Logic
Connection Type Screw
Reset Method Manual
Number of Digits 6
Mounting Type Panel Mount
Output / Interface Relay
Count Direction Bi-Directional
Digit Height 101 mm
Maximum Count Frequency 35kHz
Display Range 0 → 99999
Measurement Range 0 → 99999
Weight 2kg
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
9 op voorraad - levertijd is 2 werkdag(en).
Prijs Each
548,30
(excl. BTW)
663,44
(incl. BTW)
Aantal stuks
Per stuk
1 +
€ 548,30
