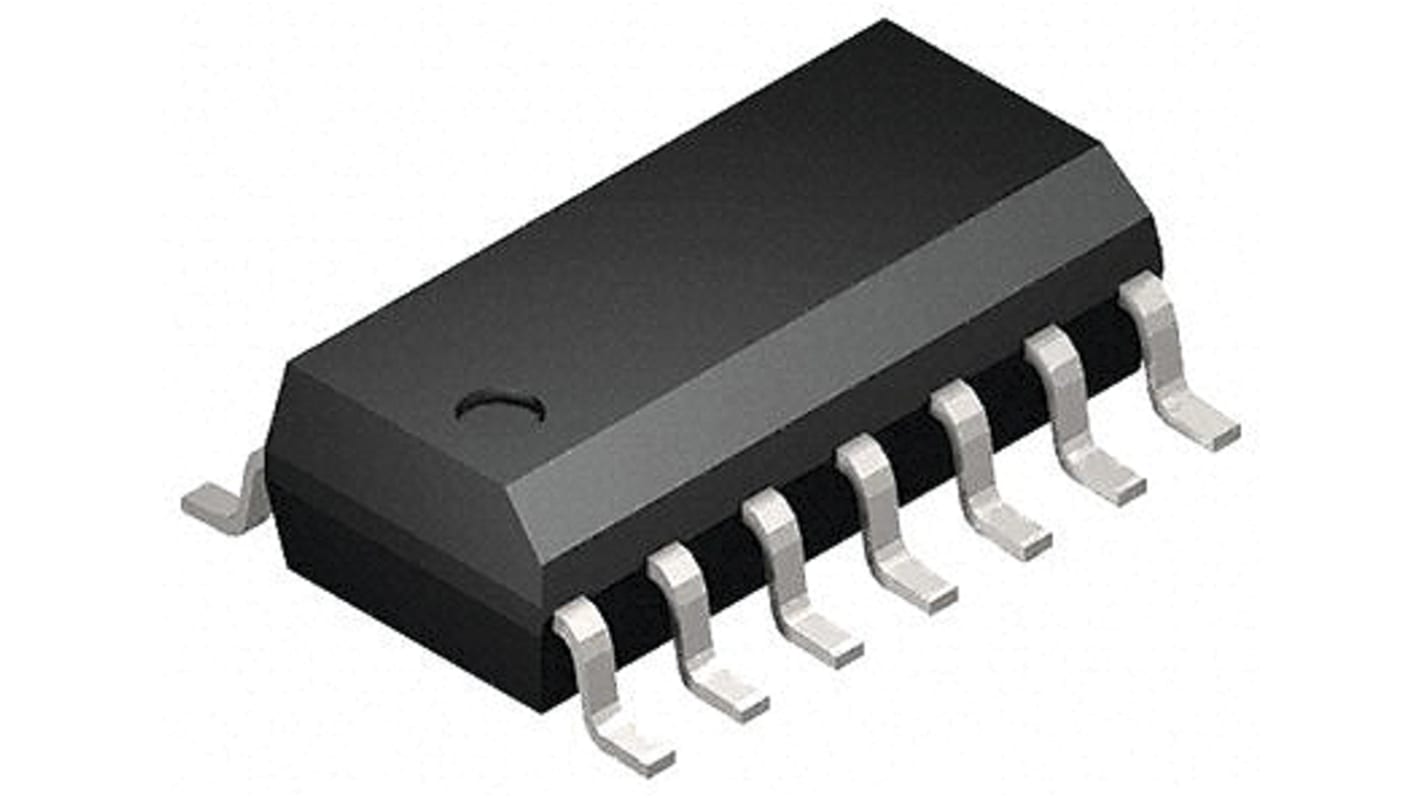

Toshiba 74HC74D Dual D Type Flip Flop IC, CMOS, 14-Pin SOIC

  • RS-stocknr. 171-3146
  • Fabrikantnummer 74HC74D
  • Fabrikant Toshiba
Datasheets
Wetgeving en compliance
Conform
Productomschrijving

The 74HC74D is a high speed CMOS D FLIP FLOP fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The signal level applied to the D INPUT is transferred to Q OUTPUT during the positive going transition of theCLOCK pulse. CLEAR and PRESET are independent of the CLOCK and are accomplished by setting the appropriate input to an "L" level. All inputs are equipped with protection circuits against static discharge or transient excess voltage

High speed: fMAX = 77 MHz (typ.) at VCC = 5 V
Low power dissipation: ICC = 2.0 μA (max) at Ta = 25
Balanced propagation delays: tPLH ≈ tPHL
Wide operating voltage range: VCC(opr) = 2.0 to 6.0 V

Specificaties
Kenmerk Waarde
Logic Family 74HC
Logic Function D Type
Output Type CMOS
Output Signal Type Differential
Triggering Type Positive Edge
Polarity Inverting
Mounting Type Surface Mount
Package Type SOIC
Pin Count 14
Set/Reset Preset
Number of Elements per Chip 2
Maximum Propagation Delay Time @ Maximum CL 190 ns @ 50 pF
Dimensions 8.95 x 3.9 x 1.38mm
Length 8.95mm
Propagation Delay Test Condition 50pF
Maximum Operating Temperature +85 °C
Minimum Operating Supply Voltage 2 V
Height 1.38mm
Width 3.9mm
Minimum Operating Temperature -40 °C
Maximum Operating Supply Voltage 6 V
120 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
2240 op voorraad - levertijd is 1 werkdag(en) (UK-voorraad)
Prijs Each (In a Pack of 20)
0,478
(excl. BTW)
0,578
(incl. BTW)
Aantal stuks
Per stuk
Per pak*
20 - 80
€ 0,478
€ 9,56
100 - 480
€ 0,418
€ 8,36
500 - 980
€ 0,371
€ 7,42
1000 +
€ 0,335
€ 6,70
*prijsindicatie
