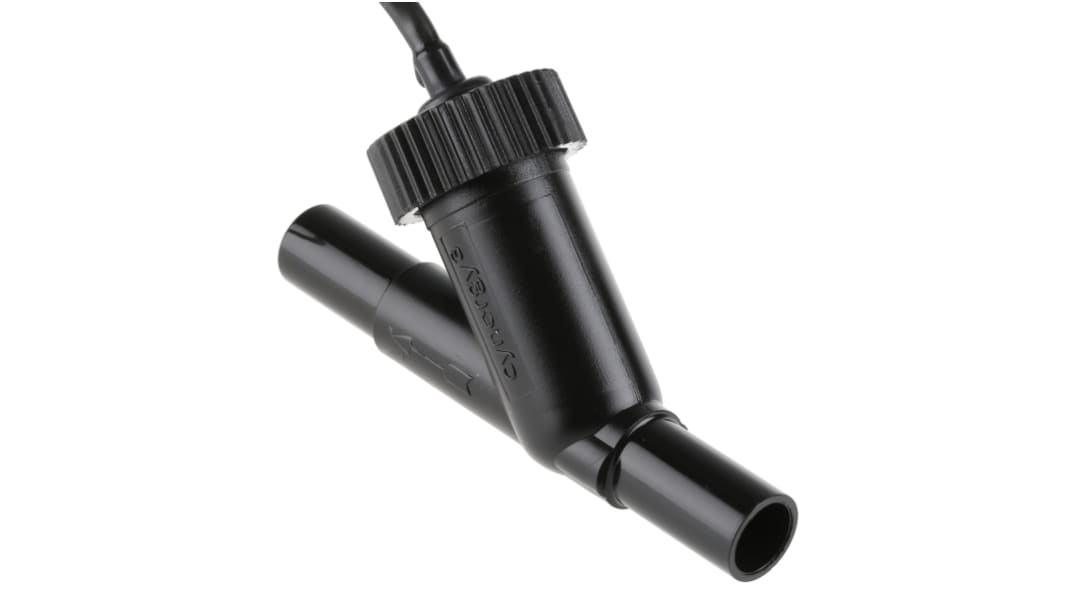

Cynergy3, 2 L/min Flow Controller, Cable, Relay

  • RS-stocknr. 257-076
  • Fabrikantnummer FS15A
  • Fabrikant Cynergy3
Datasheets
Wetgeving en compliance
Conform
Land van herkomst: GB
Productomschrijving

Normally Open Flow Switch

Flow switch series from Cynergy3. These flow switches are reed switch based and can monitor the flow of liquids up to 10bar in pressure. This series of flow switches can be mounted horizontally or vertically and have minimal flow restriction. Flow switches are ideally used in water but can be used in weak acidic liquids.

Mainly for use with hot or cold water, however they may also be used with a wide range of chemicals
Pressure rating 150psi maximum
Switching current 1A dc or ac (rms)
Switching voltage 240V dc or ac (rms)
Switching power 15W (15VA) resistive loads
Operating temperature 85°C maximum
Vertical or horizontal mounting
Standard compression or push fit fittings
WRAS approved for use in cold water
Complete with a 250mm lead

Note

Not to be used in any chlorinated liquids

//media.rs-online.com/t_line/LF338982-10.gif

Cynergy3 Flow Detection Switch

The Cynergy3 flow detection switch has a maximum flow rate of 2L/min designed for use in liquid flow systems at pressures up to 10bar and temperatures up to 85°C. Its design is based around a moving magnet and a fixed reed switch with a low flow restriction. This switch is designed to be used in liquids only and should not be used in systems with significant amounts of solid particles. This flow switch can be mounted horizontally or vertically and has minimal flow restriction. It is ideally used in water but can be used in weak acidic liquids.
Note:
Not to be used in any chlorinated liquids.

Features and Benefits

• 15mm and 22mm tube versions
• Low flow version available in a 15mm tube
• Release flow rate is 0.3L/min
• Use in cold and hot water up to 85°C
• Mainly for use with hot or cold water however, they may also be used with a wide range of chemicals
• Pressure rating is 150psi maximum
• Switching current is 1A DC or AC (rms)
• Switching voltage is 240V DC or AC (rms)
• Switching power is 15W (15VA) resistive loads

Applications

• Flow measurement and dosing control
• Industrial use

Certifications

• WRAS approved

Specificaties
Kenmerk Waarde
Maximum Flow Rate 2 L/min
Electrical Connection Cable
Control Output Relay
Mounting Style Horizontal or Vertical
Display Screen No
Pipe Diameter Range 15 mm
Maximum Operating Temperature +85°C
21 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
207 op voorraad - levertijd is 2 werkdag(en) (UK-voorraad)
Prijs Each
21,92
(excl. BTW)
26,52
(incl. BTW)
Aantal stuks
Per stuk
1 +
€ 21,92
