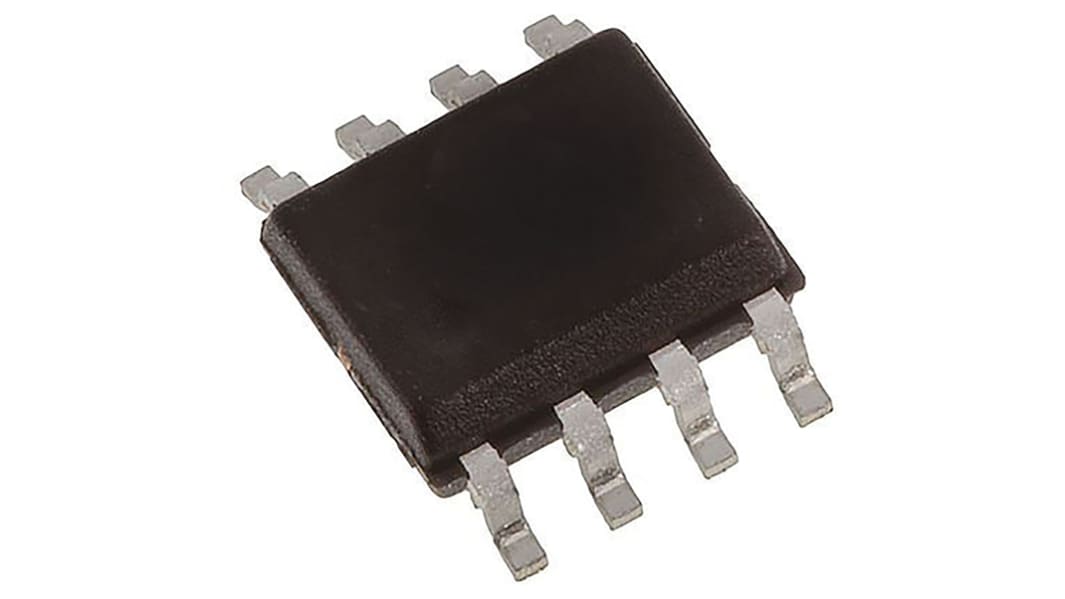

- RS-stocknr.:
- 184-0044
- Fabrikantnummer:
- FM24CL64B-GTR
- Fabrikant:
- Infineon
tijdelijk niet op voorraad – nieuwe voorraad verwacht op 31-07-2024, met een levertijd van 2 à 3 werkdagen.
Toegevoegd
Prijs Elk (op een haspel van 2500)
€ 1,644
(excl. BTW)
€ 1,989
(incl. BTW)
Aantal stuks | Per stuk | Per reel* |
2500 + | € 1,644 | € 4.110,00 |
*prijsindicatie |
- RS-stocknr.:
- 184-0044
- Fabrikantnummer:
- FM24CL64B-GTR
- Fabrikant:
- Infineon
Datasheets
Wetgeving en compliance
Productomschrijving
16-Kbit ferroelectric random access memory (F-RAM) logically organized as 2K x 8
High-endurance 100 trillion (1014) read/writes
151-year data retention (See Data Retention and Endurance on page 12)
NoDelay™ writes
Advanced high-reliability ferroelectric process
Very fast serial peripheral interface (SPI)
Up to 20 MHz frequency
Direct hardware replacement for serial flash and EEPROM
Supports SPI mode 0 (0, 0) and mode 3 (1, 1)
Sophisticated write protection scheme
Hardware protection using the Write Protect (WP) pin
Software protection using Write Disable instruction
Software block protection for 1/4, 1/2, or entire array
Low power consumption
200 A active current at 1 MHz
3 A (typ) standby current
Low-voltage operation: VDD = 2.7 V to 3.6 V
Industrial temperature: –40 C to +85 C
Packages
8-pin small outline integrated circuit (SOIC) package
8-pin thin dual flat no leads (DFN) package
High-endurance 100 trillion (1014) read/writes
151-year data retention (See Data Retention and Endurance on page 12)
NoDelay™ writes
Advanced high-reliability ferroelectric process
Very fast serial peripheral interface (SPI)
Up to 20 MHz frequency
Direct hardware replacement for serial flash and EEPROM
Supports SPI mode 0 (0, 0) and mode 3 (1, 1)
Sophisticated write protection scheme
Hardware protection using the Write Protect (WP) pin
Software protection using Write Disable instruction
Software block protection for 1/4, 1/2, or entire array
Low power consumption
200 A active current at 1 MHz
3 A (typ) standby current
Low-voltage operation: VDD = 2.7 V to 3.6 V
Industrial temperature: –40 C to +85 C
Packages
8-pin small outline integrated circuit (SOIC) package
8-pin thin dual flat no leads (DFN) package
Specificaties
Kenmerk | Waarde |
---|---|
Memory Size | 64kbit |
Organisation | 8K x 8 bit |
Interface Type | I2C |
Data Bus Width | 8bit |
Maximum Random Access Time | 550ns |
Mounting Type | Surface Mount |
Package Type | SOIC |
Pin Count | 8 |
Dimensions | 4.97 x 3.98 x 1.48mm |
Length | 4.97mm |
Maximum Operating Supply Voltage | 3.6 V |
Width | 3.98mm |
Height | 1.48mm |
Maximum Operating Temperature | +85 °C |
Number of Bits per Word | 8bit |
Minimum Operating Supply Voltage | 2.7 V |
Minimum Operating Temperature | -40 °C |
Automotive Standard | AEC-Q100 |
Number of Words | 8K |
