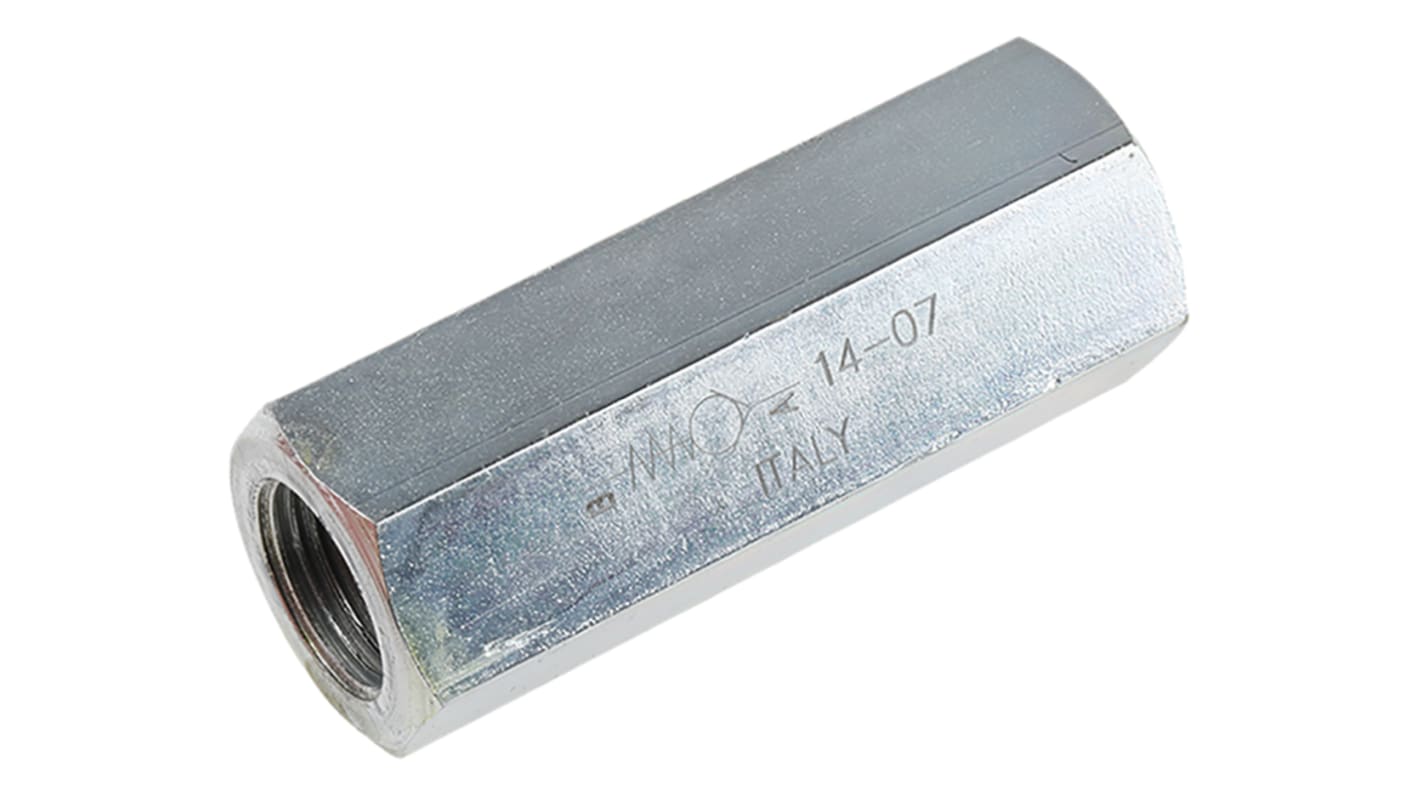

Parker Steel Inline Mounting, Hydraulic Check Valve, 2302, G 3/8, 30L/min, 0.35bar Cracking Pressure
- RS-stocknr.:
- 237-2458
- Fabrikantnummer:
- 2302
- Fabrikant:
- Parker
- RS-stocknr.:
- 237-2458
- Fabrikantnummer:
- 2302
- Fabrikant:
- Parker
Datasheets
Wetgeving en compliance
N.v.t.
Productomschrijving
Steel Check Valves
Designed to allow flow in one direction and shut-off in the reverse direction.
Nylon seals
Note
Not suitable for use with water.
Specificaties
Kenmerk | Waarde |
---|---|
Thread Size | 3/8in |
Cracking Pressure | 0.35bar |
Connection Port Thread | G 3/8 |
Body Material | Steel |
Maximum Flow Rate | 30L/min |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +90°C |
Mounting Type | Inline |
