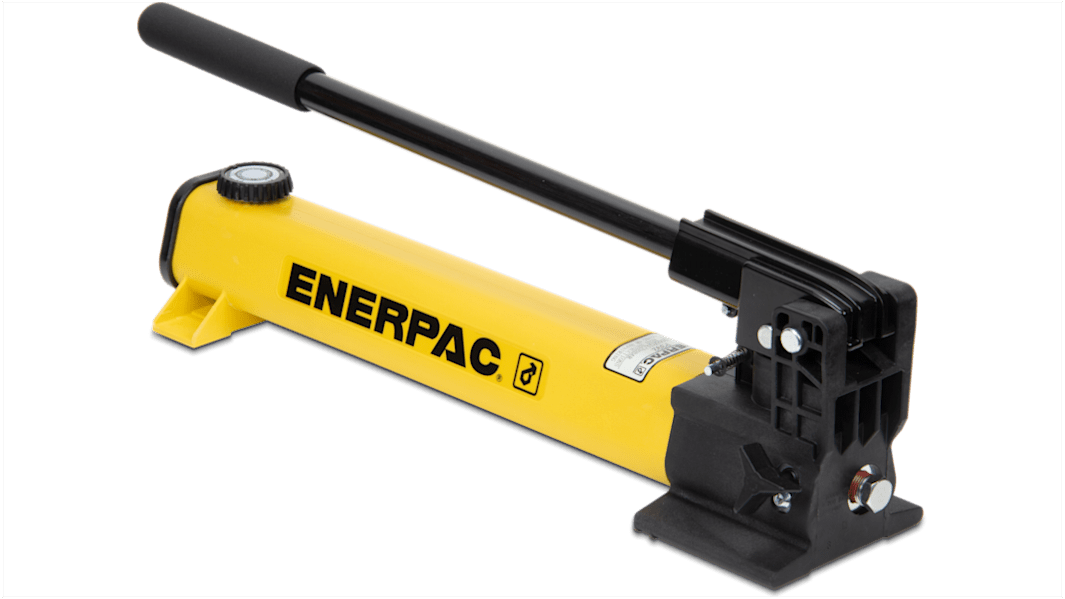

Enerpac P392, Two Speed, Hydraulic Hand Pump, 901cm3, 25.4mm Cylinder Stroke, 700 bar

  • RS-stocknr. 283-1250
  • Fabrikantnummer P392
  • Fabrikant Enerpac
Datasheets
Wetgeving en compliance
N.v.t.
Land van herkomst: US
Productomschrijving

Lightweight Hand Pump

Durable glass-filled nylon reservoir and nylon encapsulating aluminium pump base for maximum corrosion resistance
To enable cylinder maintenance a replacement seal kit which fits both the single and two speed models is available
Lower handle effort to minimise operator fatigue
Handle lock and lightweight construction for easy carrying
Large oil capacities to power a wide range of cylinders or tools
Non-conductive fibre-glass handle for operator safety

//media.rs-online.com/t_line/L283124-01.gif
//media.rs-online.com/t_line/LD283124-01.gif
//media.rs-online.com/t_line/LE283124-02.gif
//media.rs-online.com/t_line/LF283124-10.gif
//media.rs-online.com/t_line/LI283124-01.gif

Pumps- Hand Operated

Hand operated hydraulic pumps and pump sets with a maximum working pressure of 700 bar. The pumps hydraulic outlet port thread size is 3/8in x 18NPT.

Warning

  • High pressure hydraulic equipment can work at extremely high pressure and careful attention should be paid to working pressure when choosing accessories.
Specificaties
Kenmerk Waarde
Single Or Two Speed Two
Usable Oil Capacity 901cm³
Cylinder Stroke 25.4mm
Displacement per Stroke 1st Stage 11.26cm³
Displacement per Stroke 2nd Stage 2.47cm³
Maximum Handle Effort 42.2kg
Maximum Operating Pressure 700 bar
Dimensions 533 x 120 x 177mm
Weight 4.1kg
Height 177mm
Width 120mm
Length 533mm
5 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
16 op voorraad - levertijd is 2 werkdag(en) (UK-voorraad)
Prijs Each
506,12
(excl. BTW)
612,41
(incl. BTW)
Aantal stuks
Per stuk
1 +
€ 506,12
