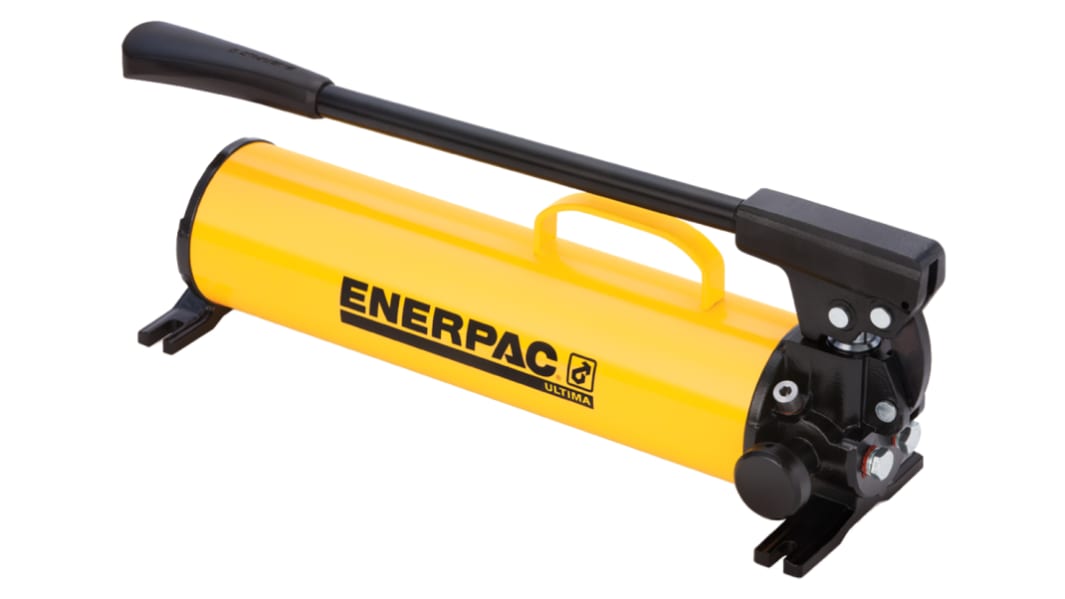

Enerpac P80 ULTIMA Series Two Speed, Hydraulic Hand Pump, 2200cm3, 25.4mm Cylinder Stroke, 700 bar

  • RS-stocknr. 283-1288
  • Fabrikantnummer P80
  • Fabrikant Enerpac
Datasheets
Wetgeving en compliance
N.v.t.
Land van herkomst: US
Productomschrijving

Steel Hand Pump

The two speed model is recommended for applications where cylinder pistons must advance rapidly to load contact, and applications where greater oil capacities are required, such as multiple cylinder hook-ups

//media.rs-online.com/t_line/L0283127-10.gif
//media.rs-online.com/t_line/L283127-01.gif
//media.rs-online.com/t_line/LD283127-01.gif
//media.rs-online.com/t_line/LE283127-01.gif

Pumps- Hand Operated

Hand operated hydraulic pumps and pump sets with a maximum working pressure of 700 bar. The pumps hydraulic outlet port thread size is 3/8in x 18NPT.

Warning

  • High pressure hydraulic equipment can work at extremely high pressure and careful attention should be paid to working pressure when choosing accessories.
Specificaties
Kenmerk Waarde
Single Or Two Speed Two
Usable Oil Capacity 2200cm³
Cylinder Stroke 25.4mm
Displacement per Stroke 1st Stage 16.22cm³
Displacement per Stroke 2nd Stage 2.46cm³
Maximum Handle Effort 47kg
Maximum Operating Pressure 700 bar
Dimensions 539 x 146 x 174mm
Weight 10.9kg
Height 174mm
Width 146mm
Length 539mm
6 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
9 op voorraad - levertijd is 2 werkdag(en) (UK-voorraad)
Prijs Each
737,96
(excl. BTW)
892,93
(incl. BTW)
Aantal stuks
Per stuk
1 +
€ 737,96
