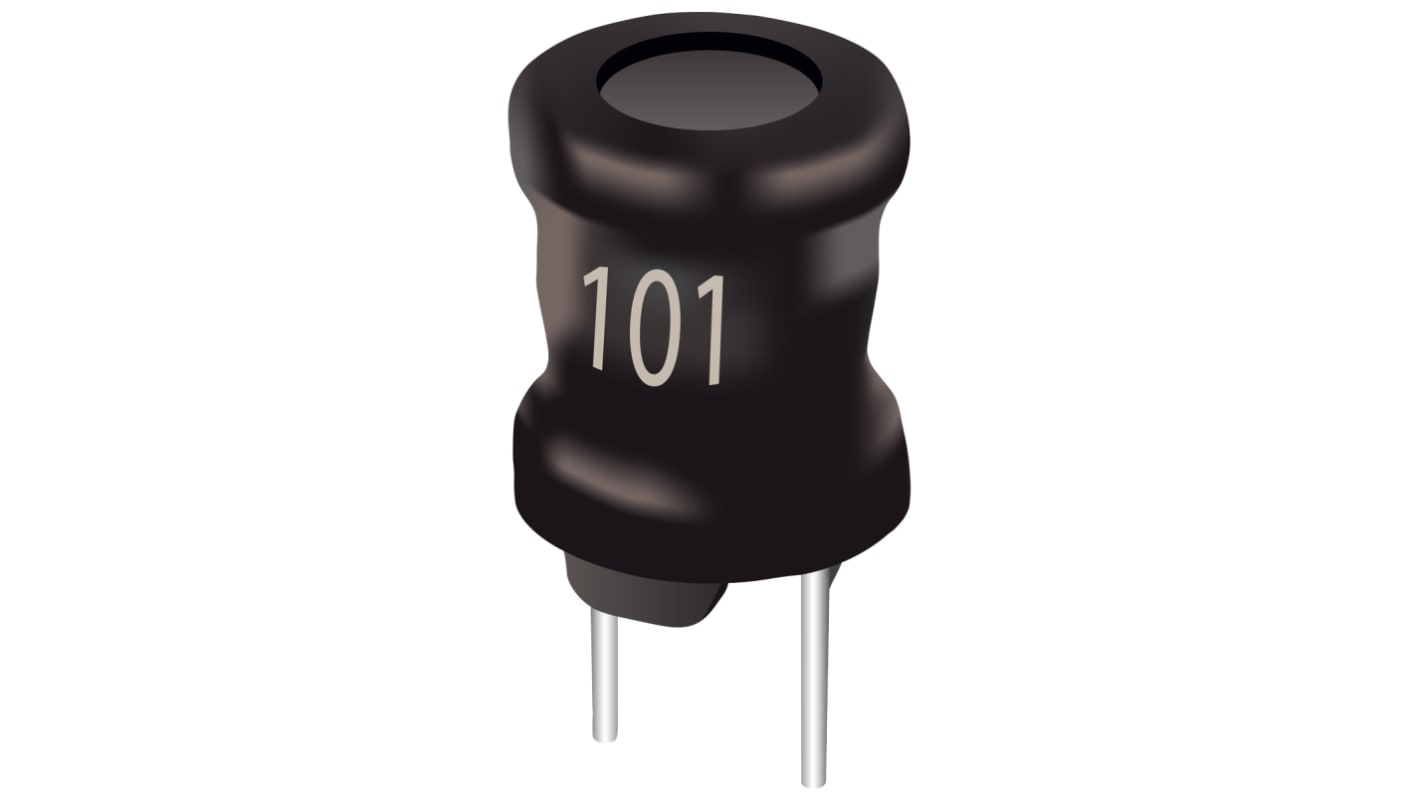

Bourns 100 mH ±10% Ferrite Leaded Inductor, Max SRF:100kHz, Q:20, 20 (Sat)mA Idc, 235Ω Rdc RLB0913

  • RS-stocknr. 135-0132
  • Fabrikantnummer RLB0913-104K
  • Fabrikant Bourns
Datasheets
Wetgeving en compliance
Conform
Productomschrijving

Bourns RLB0913 Series Radial Lead Inductors

Bourns RLB0913 Radial leaded non-shielded inductors offer high saturation current up to 10A, with an inductance range of 1 μH to 100 mH. These leaded inductors feature fixed lead spacing and shrink tubing protected winding. These inductors are ideal for use in DC-DC converters, power supplies, output chokes and electromagnetic interference/radio frequency interference (EMI/RFI) filters.

Bourns Leaded Inductors (Chokes)

Specificaties
Kenmerk Waarde
Inductance 100 mH
Maximum DC Current 20 (Sat)mA
Mounting Type Radial
Maximum DC Resistance 235Ω
Tolerance ±10%
Diameter 8.5mm
Height 12.5mm
Dimensions 8.5 (Dia.) x 12.5mm
Core Material Ferrite
Maximum Self Resonant Frequency 100kHz
Lead Pitch 5mm
Series RLB0913
Minimum Operating Temperature -55°C
Minimum Quality Factor 20
Maximum Operating Temperature +125°C
Terminal Type Radial Leaded
Lead Diameter 0.65mm
tijdelijk niet op voorraad – nieuwe voorraad verwacht op 14-04-2020, met een levertijd van 2 à 3 werkdagen.
Prijs Each (In a Pack of 10)
0,59
(excl. BTW)
0,71
(incl. BTW)
Aantal stuks
Per stuk
Per pak*
10 - 20
€ 0,59
€ 5,90
30 - 40
€ 0,549
€ 5,49
50 - 90
€ 0,465
€ 4,65
100 +
€ 0,423
€ 4,23
*prijsindicatie
