- RS-stocknr.:
- 180-6178
- Fabrikantnummer:
- S1CH-3535400003-00000000-00001
- Fabrikant:
- Seoul Semiconductor
- RS-stocknr.:
- 180-6178
- Fabrikantnummer:
- S1CH-3535400003-00000000-00001
- Fabrikant:
- Seoul Semiconductor
Datasheets
Wetgeving en compliance
- Land van herkomst:
- KR
Productomschrijving

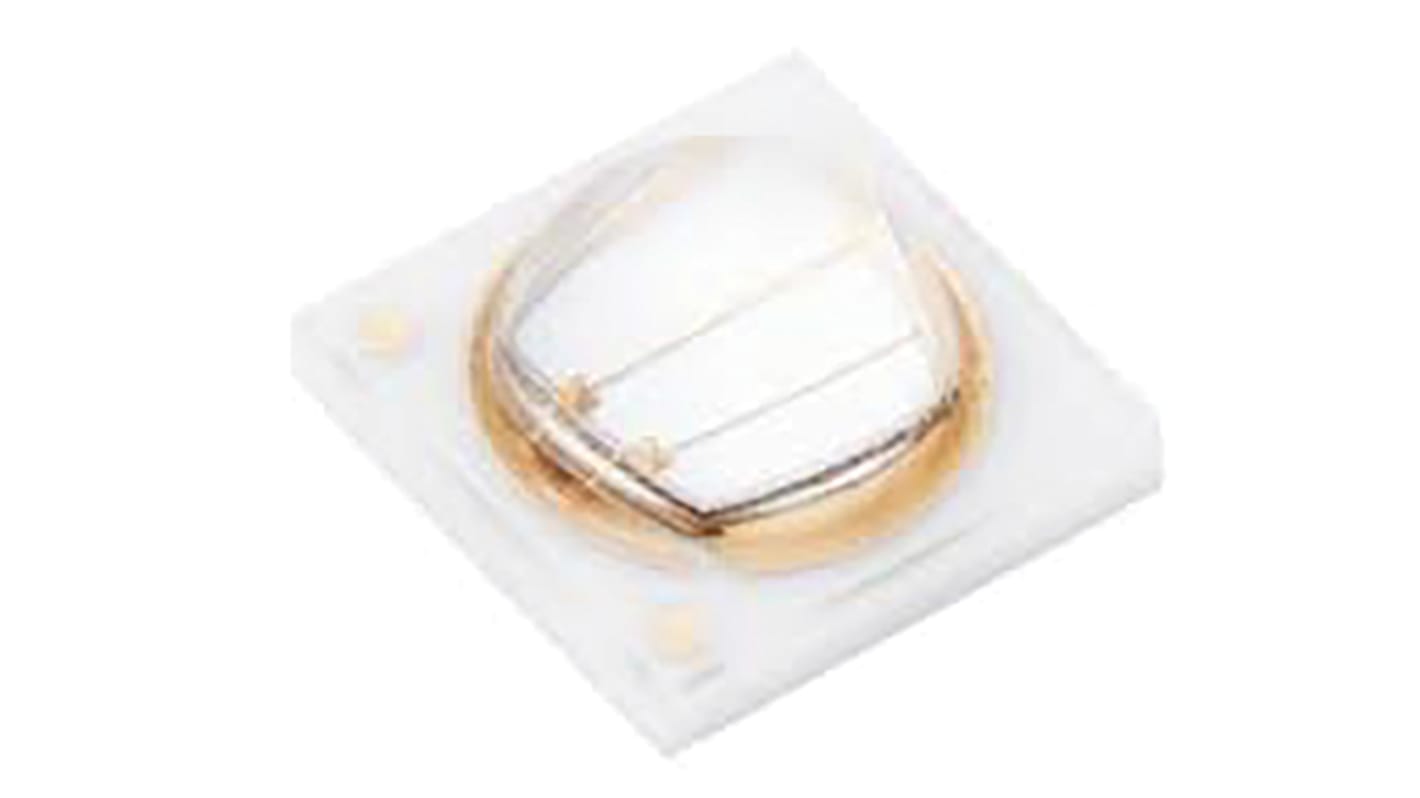

Seoul Semiconductor LED
The Seoul Semiconductor 3.75V, purple LED is designed for high flux output applications with high current operation capability. It incorporates state of the art SMD design and low thermal resistant material. The Z power LED is an ideal light source for directional Lighting applications such as spotlights, various outdoor applications and high-performance torches.
Features and Benefits
Super high flux output and high luminance
Designed for high current operation
SMT solderable
Lead free product
Designed for high current operation
SMT solderable
Lead free product
Applications
Adhesive
Coating
Counterfeit detection or security
Crime inspection
Dental curing
Fluorescence photography
Horticulture
Oil leak detection
Printing
UV torch
Coating
Counterfeit detection or security
Crime inspection
Dental curing
Fluorescence photography
Horticulture
Oil leak detection
Printing
UV torch
Specificaties
Kenmerk | Waarde |
---|---|
LED Colours | Purple |
Mounting Type | Surface Mount |
Number of LEDs | 1 |
Forward Voltage | 3.75 V |
Radiant Flux | 760mW |
Number of Pins | 3 |
Viewing Angle | 120 ° |
Dominant Wavelength | 412 nm |
Dimensions | 3.5 x 3.5 x 1.93mm |
Forward Current | 500mA |
Series | Z-Power |
