IP67 Limit Switch Aluminium, NO/NC

Datasheets
Wetgeving en compliance
N.v.t.
Land van herkomst: GB
Productomschrijving

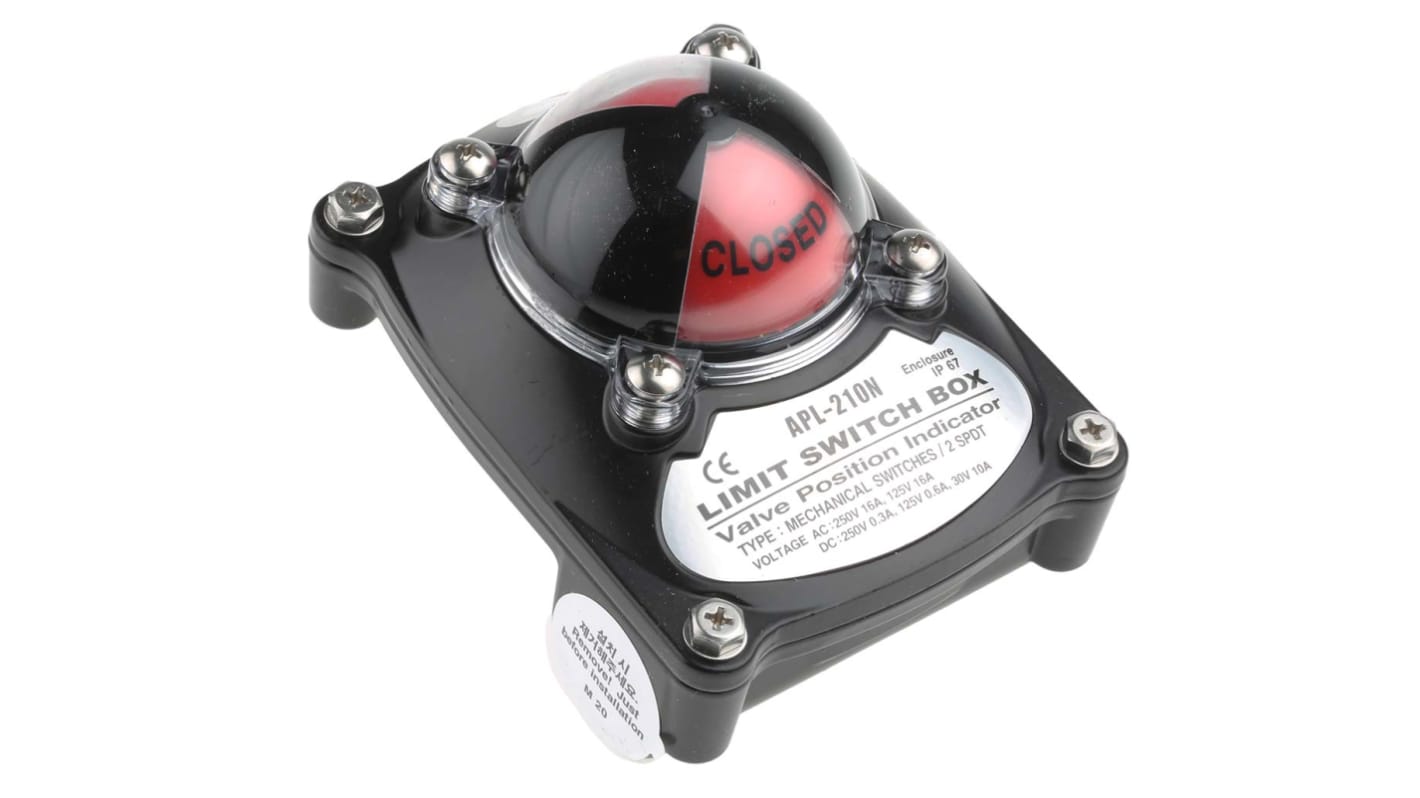

Limit Switch Box

Enclosure Weatherproof IP67/NEMA4 & 4X IP 68
Ambient temperature -20 °C - +80 °C
Conduit entries 2 x M20 (option PF1/2in., PT1/2in., PG13.5)
Terminal Strips 8 points (0.08-2.5mm2)
Position indicator Closed: red Open: yellow
Switches Mechanical switch x2
Proximity sensor x2
External coating Polyester powder coating
Shaft Standard shaft (17mm)
Housing cover and Body- Aluminium
Indicator cover - Polycarbonate
Indicator - ABS/Polycarbonate
Cam - Polycarbonate
Spring - Stainless Steel
Housing cover bolt - Stainless Steel
O-ring - NBR
Bushing - Bronze
E-ring (Shaft) - Stainless Steel
Earth lug - Stainless Steel
Bracket - Stainless Steel

Specificaties
Kenmerk Waarde
Normal State Configuration NO/NC
IP Rating IP67
Housing Material Aluminium
Connection Type M20
Terminal Type Terminal Strip
Length 112mm
Width 88mm
Minimum Operating Temperature -20°C
Depth 93mm
Dimensions 112 x 88 x 93 mm
Maximum Operating Temperature +80°C
2 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
30 op voorraad - levertijd is 2 werkdag(en) (UK-voorraad)
Prijs Each
97,03
(excl. BTW)
117,41
(incl. BTW)
Aantal stuks
Per stuk
1 +
€ 97,03
