- RS-stocknr.:
- 878-0451
- Fabrikantnummer:
- 61C11-01-08-01
- Fabrikant:
- Grayhill
tijdelijk niet op voorraad – nieuwe voorraad verwacht op 24-06-2024, met een levertijd van 2 à 3 werkdagen.
Toegevoegd
Prijs Per stuk
€ 34,77
(excl. BTW)
€ 42,07
(incl. BTW)
Aantal stuks | Per stuk |
1 + | € 34,77 |
- RS-stocknr.:
- 878-0451
- Fabrikantnummer:
- 61C11-01-08-01
- Fabrikant:
- Grayhill
Datasheets
Wetgeving en compliance
- Land van herkomst:
- US
Productomschrijving

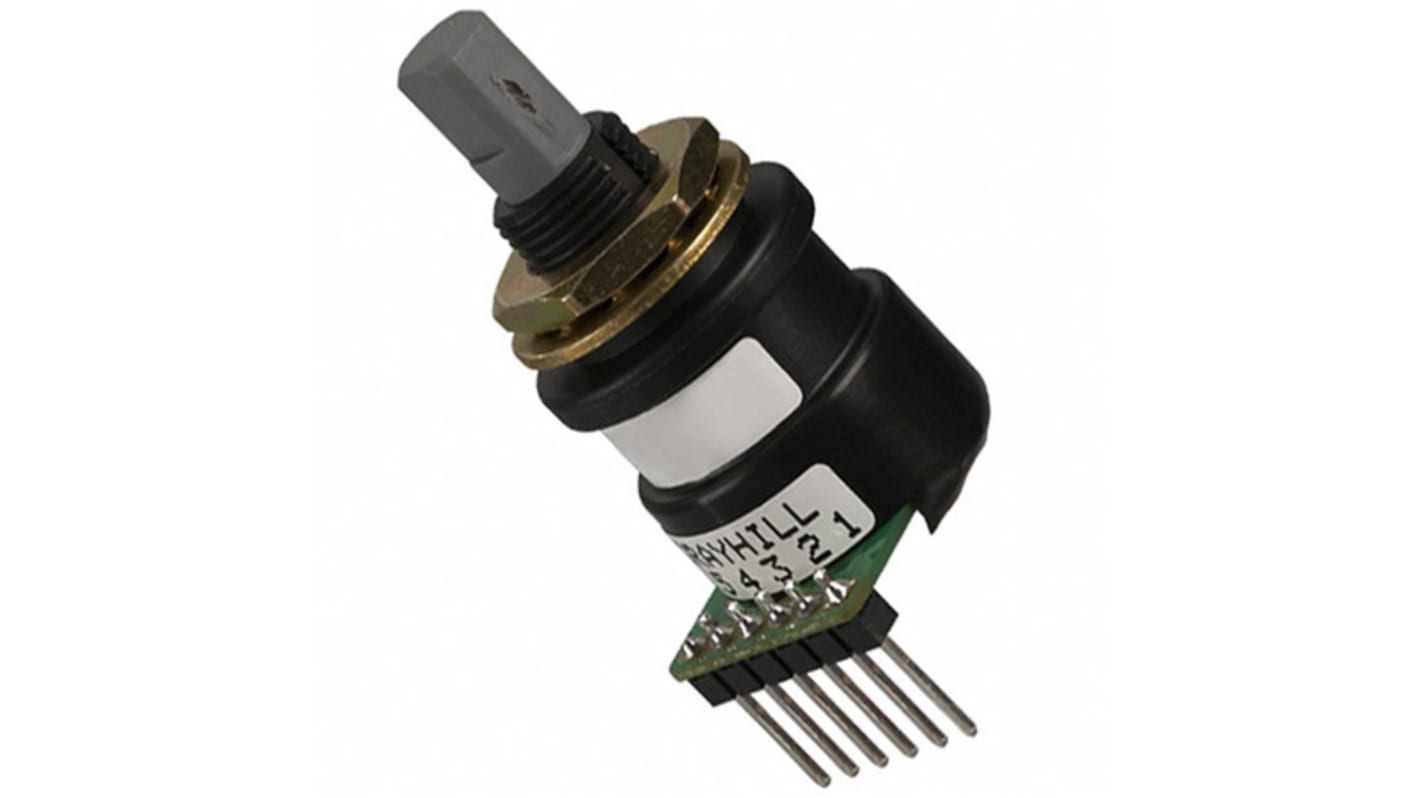

Grayhill 61C Series Optical Encoders
The 61C series encoders offer either 16 or 32 positions and have a built in pushbutton. They are designed for operational use to move display icons and select the highlighted option. They are extremely cost effective and as they are optically coupled they have an operational expectancy of more than a million rotations helping to reduce maintenance. They are also CMOS, TTL and HCMOS Logic compatible.
Features:
Competitively priced to similar electromechanical switches
Optically coupled for more than a million trouble-free rotations
Has data entry pushbutton switch activated by switch shaft
Compatible with CMOS, TTL and HCMOS logic
Operationally used to move display icon and input data
Used to set radio frequency, drill depth, RPM, etc.
Operating temperature range: -40 to +85 °C
Competitively priced to similar electromechanical switches
Optically coupled for more than a million trouble-free rotations
Has data entry pushbutton switch activated by switch shaft
Compatible with CMOS, TTL and HCMOS logic
Operationally used to move display icon and input data
Used to set radio frequency, drill depth, RPM, etc.
Operating temperature range: -40 to +85 °C
Specificaties
Kenmerk | Waarde |
---|---|
Encoder Reading | Quadrature |
Encoder Signal | 2-Bit Quadrature |
Supply Voltage | 5V dc |
Shaft Diameter | 6.35 mm |
Shaft Length | 17.45mm |
Mounting Type | Panel Mount |
Shaft Style | Flat |
Termination Style | PC Pin |
Maximum Operating Speed | 16.6 rpm @ 30 mS |
Current Rating | 30 mA @ 5 V dc |
