- RS-stocknr.:
- 693-5113
- Fabrikantnummer:
- ET-161-12-16-E
- Fabrikant:
- Adaptive
- RS-stocknr.:
- 693-5113
- Fabrikantnummer:
- ET-161-12-16-E
- Fabrikant:
- Adaptive
Datasheets
Wetgeving en compliance
- Land van herkomst:
- CN
Productomschrijving

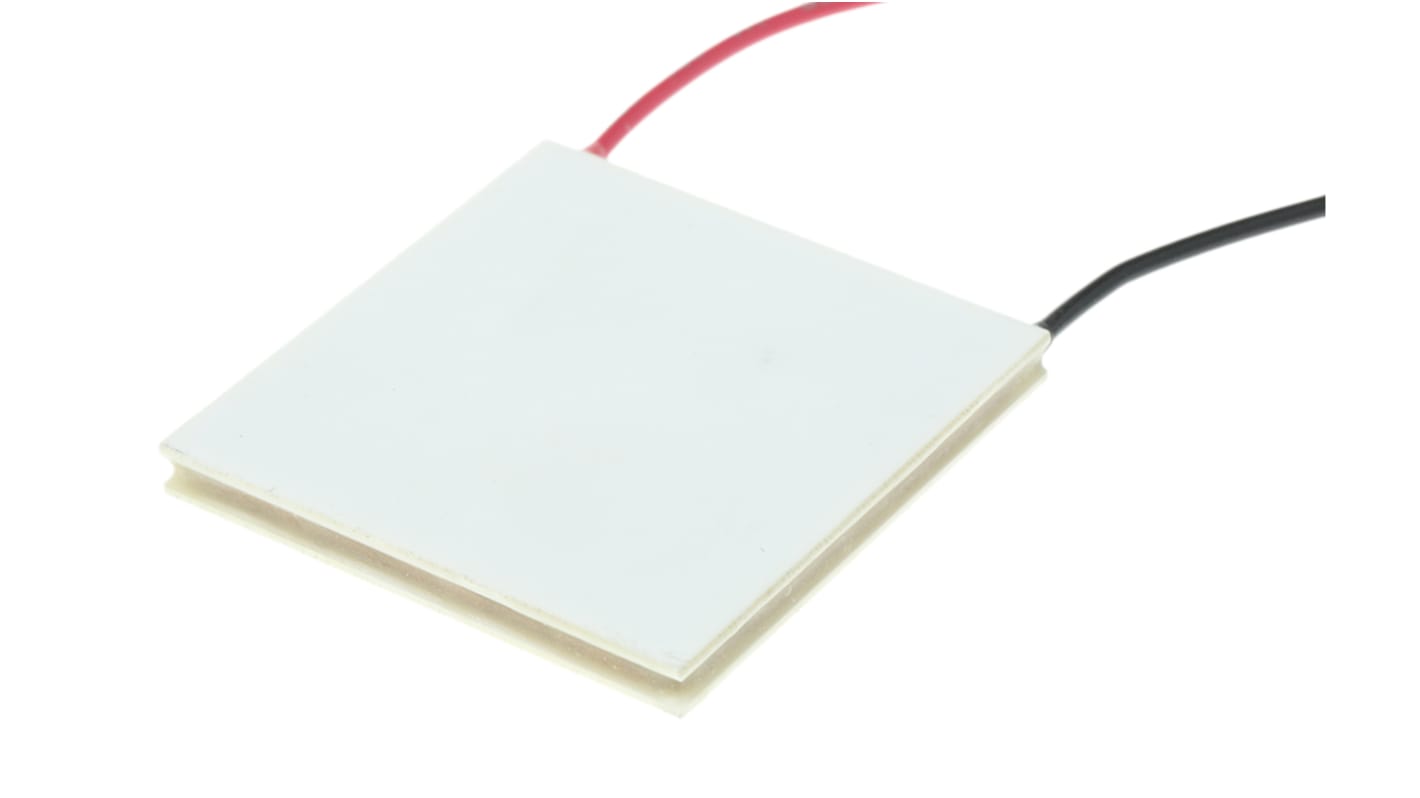

Peltier Effect Thermoelectric Module
Thermoelectric Modules - Peltier Effect
A range of semiconductor thermoelectric devices working on the Peltier effect. When supplied with a suitable electric current, they can either cool or heat. When subject to an externally applied temperature gradient these devices will generate a small amount of electrical power.The larger devices can be used for cooling or controlling the temperature of sub-assemblies. The small size of the mini module makes it ideally suited for cooling miniature electronic components such as infra-red detector chips, microwave IC's, fibre-optic lasers and detectors.,Alternatively, it may be used to minimise the effects of temperature coefficients on oscillator stability, reference voltages, amplifier offsets etc. by providing temperature control.
Solid-state long term stability
Generates no acoustic noise
Generates no acoustic noise
Specificaties
Kenmerk | Waarde |
---|---|
Maximum Cooling Capacity | 54.6W |
Maximum Temperature Difference | +74K |
Maximum Current | 4.4A |
Maximum Voltage | 20V |
Active Area | 40 x 40mm |
Active Area Length | 40mm |
Active Area Thickness | 3.9mm |
Active Area Width | 40mm |
