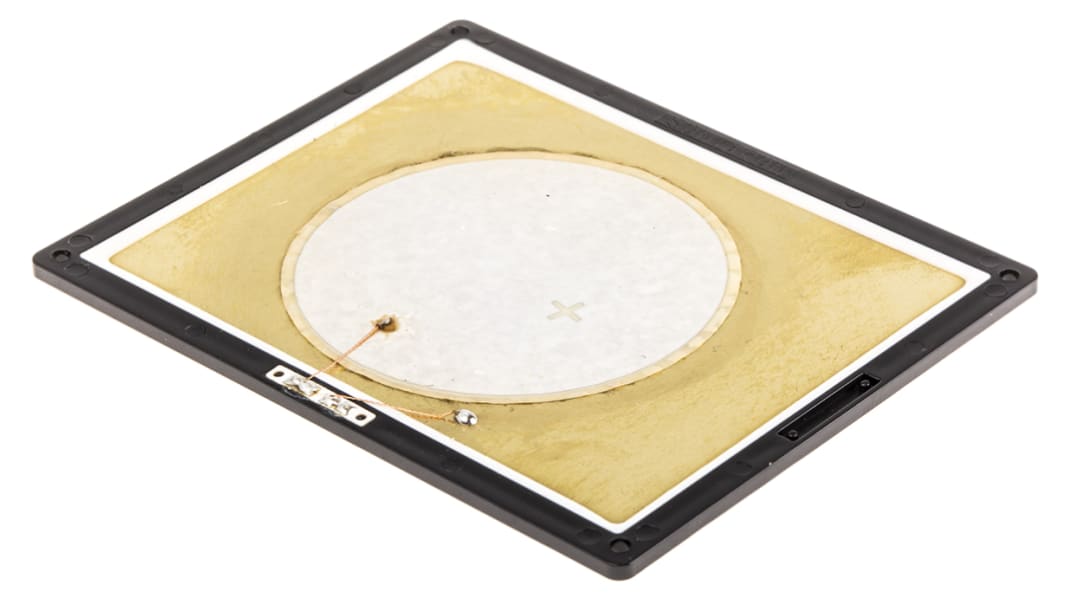

Sonitron Miniature Speaker, 84dB, 200 Hz → 20 kHz, 580nF, 5 → 60V, 87 x 70 x 2mm

  • RS-stocknr. 786-8923
  • Fabrikantnummer SPS-8770-03-C1
  • Fabrikant Sonitron
Datasheets
Wetgeving en compliance
Conform
Land van herkomst: BE
Productomschrijving

Square Piezoceramic Speaker SMT mount

A selection of piezocermic speakers designed for surface mounting. Utilising a ceramic disk that reacts to voltage differentiation, the piezocermic speaker combines very small current consumption with a high volume output.

Features and Benefits:

• Piezo transducer speakers
• Panel mountable
• SMT pad connections
• Requires external circuitry to operate

Piezo-electric - Panel Mount with Pad connections

Specificaties
Kenmerk Waarde
Frequency Range 200 Hz → 20 kHz
Capacitance 580nF
Sound Level 84dB
Connection Method Glue, Silicone
Dimensions 87 x 70 x 2mm
Operating Temperature Range -20 → +60 °C
Maximum Frequency 20kHz
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
Minimum Frequency 200Hz
Height 2mm
Length 87mm
Width 70mm
18 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
10 op voorraad - levertijd is 1 werkdag(en) (UK-voorraad)
Prijs Each
11,27
(excl. BTW)
13,64
(incl. BTW)
Aantal stuks
Per stuk
1 - 4
€ 11,27
5 - 9
€ 11,00
10 +
€ 10,73
