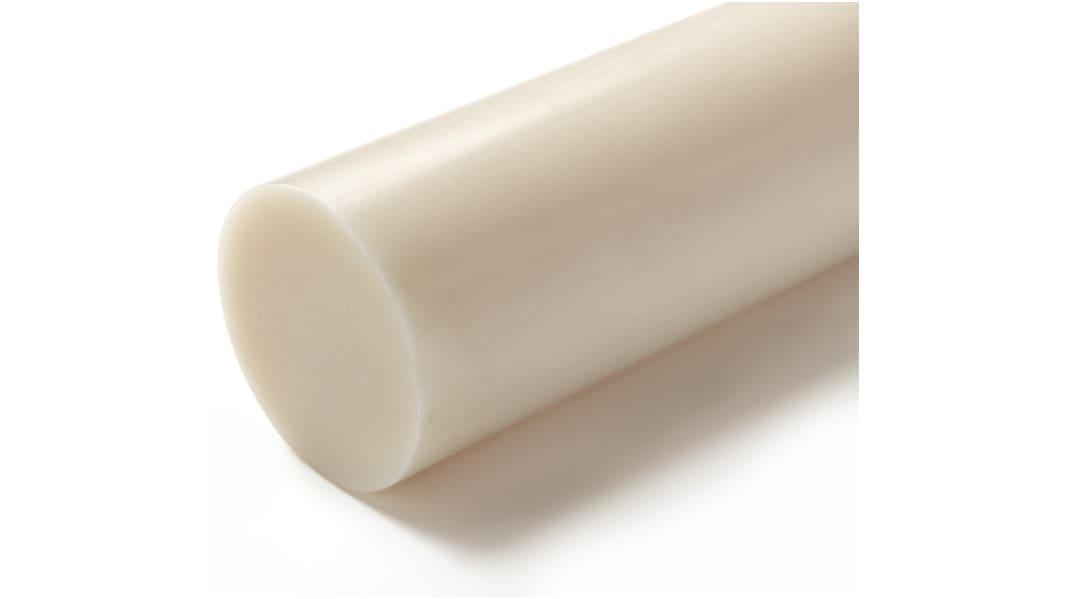

RS PRO Natural Nylon Rod, 500mm x 70mm Diameter

Datasheets
Wetgeving en compliance
Conform
Land van herkomst: DE
Productomschrijving

Cast Nylon 6

Natural colour cast Nylon 6

Free of internal stresses
High tensile and impact strength
Chemical, acid and alkali resistant
High abrasion resistance
Low finished component count
Suitable for all bearing, bush and gear applications
Natural colour

Max. Service Temp. (Long Term) 100°C
Elongation 3-50%
Tensile Strength 80 MPa
Hardness (Rockwell-Shore D) M90 (Rockwell)
Flammability Rating UL 94 HB
Water Absorption 6-7% at saturation

Standards

DIN 50 014

Natural & Cast Nylon

Specificaties
Kenmerk Waarde
Colour Natural
Length 500mm
Material Nylon
Form Rod
Rod Diameter 70mm
Density 1.15g/cm³
Tensile Strength 60 (Wet) MPa, 85 (Dry) MPa
Flammability Rating UL 94 HB
Water Absorption 6 → 7%
Thermal Conductivity 0.24W/mK
Elongation 50%
Melting Point +220°C
Hardness M 90 Rockwell
Maximum Operating Temperature +180°C
Suitability Castors, Diverse Machine Parts, Gear, Pulleys, Slide Bearing, Slide Rails & Friction Strips, Wiper Blades
7 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
2 op voorraad - levertijd is 2 werkdag(en) (UK-voorraad)
Prijs Each
33,71
(excl. BTW)
40,79
(incl. BTW)
Aantal stuks
Per stuk
1 - 2
€ 33,71
3 - 5
€ 31,35
6 - 11
€ 29,66
12 +
€ 26,97
