Norgren G 1/8 5L/s Pneumatic Air Lubricator, -20 → +50°C

  • RS-stocknr. 122-661
  • Fabrikantnummer L07-100-MPQG
  • Fabrikant Norgren
Datasheets
Wetgeving en compliance
N.v.t.
Productomschrijving

L07 Micro-Fog Lubricator

Best lubrication for multiple valves, cylinders and tools
Temperature range -20°C to +50°C
Flow sensor provides an almost constant oil density with varying flow
Zinc alloy body, easy-to-remove polycarbonate bowl
All round visibility of drip rate via sight dome
Panel or bracket mounted

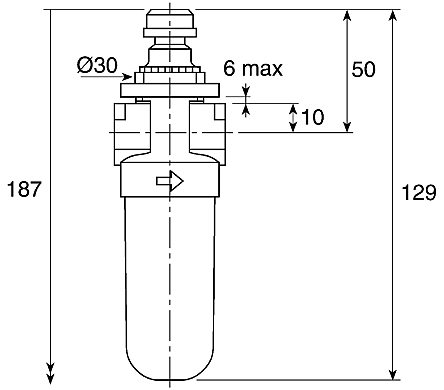

//media.rs-online.com/t_line/LD122661-01.gif
//media.rs-online.com/t_line/LD122661-02.gif
//media.rs-online.com/t_line/LD122661-03.gif
//media.rs-online.com/t_line/LF122661-10.gif
Specificaties
Kenmerk Waarde
Manufacturer Series L07
Port Connection G 1/8
Typical Flow Rate 5L/s
Port Connection Thread Size 1/8 in
Port Connection Thread Standard G
Maximum Operating Pressure 10 bar
Maximum Operating Temperature +50°C
Minimum Operating Temperature -20°C
4 op voorraad - levertijd is 1 werkdag(en).
Prijs Each
49,54
(excl. BTW)
59,94
(incl. BTW)
Aantal stuks
Per stuk
1 - 4
€ 49,54
5 - 9
€ 48,03
10 +
€ 46,47
