Festo GRLA Series Tube Exhaust Valve, 4mm Tube Inlet Port x M5 Male Outlet Port x 4mm Tube Outlet Port, 193138
- RS-stocknr.:
- 121-4355
- Fabrikantnummer:
- GRLA-M5-QS-4-D
- Fabrikant:
- Festo
154 op voorraad - levertijd is 1 werkdag(en)
Toegevoegd
Prijs Per stuk
€ 16,34
(excl. BTW)
€ 19,77
(incl. BTW)
Aantal stuks | Per stuk |
1 - 4 | € 16,34 |
5 - 9 | € 15,69 |
10 + | € 15,05 |
- RS-stocknr.:
- 121-4355
- Fabrikantnummer:
- GRLA-M5-QS-4-D
- Fabrikant:
- Festo
Wetgeving en compliance
- Land van herkomst:
- DE
Productomschrijving

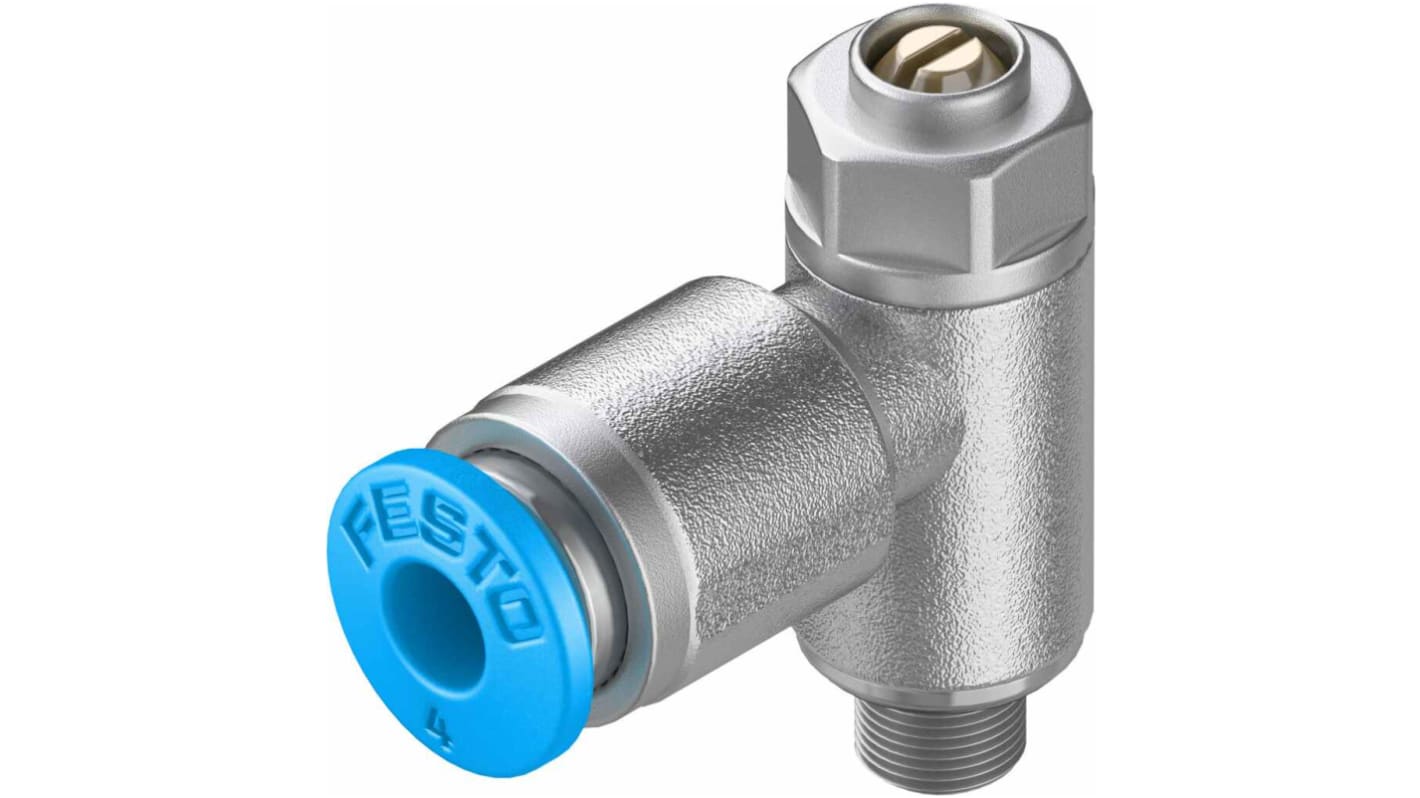

Festo Exhaust Valve, 4mm Tube Inlet Port, 5mm Outlet Thread - GRLA Series - GRLA-M5-QS-4-D
Looking for a pneumatic exhaust flow regulator to connect and direct the flow of gases and liquids in your closed compressed applications? This Festo exhaust valve, with its 4mm inlet port, is quality-approved and establishes secure and airtight connections between pipes and tubes. Use it to effectively channel exhaust air in the desired direction. It also controls piston speeds in pneumatic systems and creates one-way flows for exhaust air. The regulator is suitable for use in actuators and cylinders.
Brass body material makes the exhaust valve strong and durable for use in demanding conditions
360° axis rotation enables installation in any position
QS (Quick Star) push-in fittings allow for quick and efficient connections
Lightweight at 13g for easy handling
360° axis rotation enables installation in any position
QS (Quick Star) push-in fittings allow for quick and efficient connections
Lightweight at 13g for easy handling
Application Information
Construction industry
Factory production lines
Industrial equipment
Automotive manufacturing
Factory production lines
Industrial equipment
Automotive manufacturing
Can I use this valve under high temperatures?
This Festo exhaust valve can be used in temperatures ranging from -10°C to +60°C in both indoor and outdoor settings.
Will this fitting rust if I install it in a kitchen?
This innovative exhaust valve is made of brass, making it resistant to corrosion. It won't rust when used in humid kitchens or on devices like industrial pressure cookers.
Flow Regulators & Restrictors - Festo
Specificaties
Kenmerk | Waarde |
---|---|
Type | Flow Controller |
Inlet Port Type | Tube |
Tube Inlet Port | 4mm |
Tube Outlet Port | 4mm |
Manufacturer Series | GRLA |
Outlet Port Type | Threaded |
Threaded Outlet Port | M5 Male |
Minimum Outlet Pressure | 0.2bar |
Maximum Outlet Pressure | 10bar |
Threaded Outlet Thread Standard | Metric |
Threaded Outlet Thread Gender | Male |
Threaded Inlet Thread Size | M5 |
Threaded Outlet Thread Size | 5 mm |
Model Number p | 193138 |
Standards Met | ISO8573-1:2010 |
Body Material | Brass |
