Datasheets
Wetgeving en compliance
- Land van herkomst:
- IN
Productomschrijving

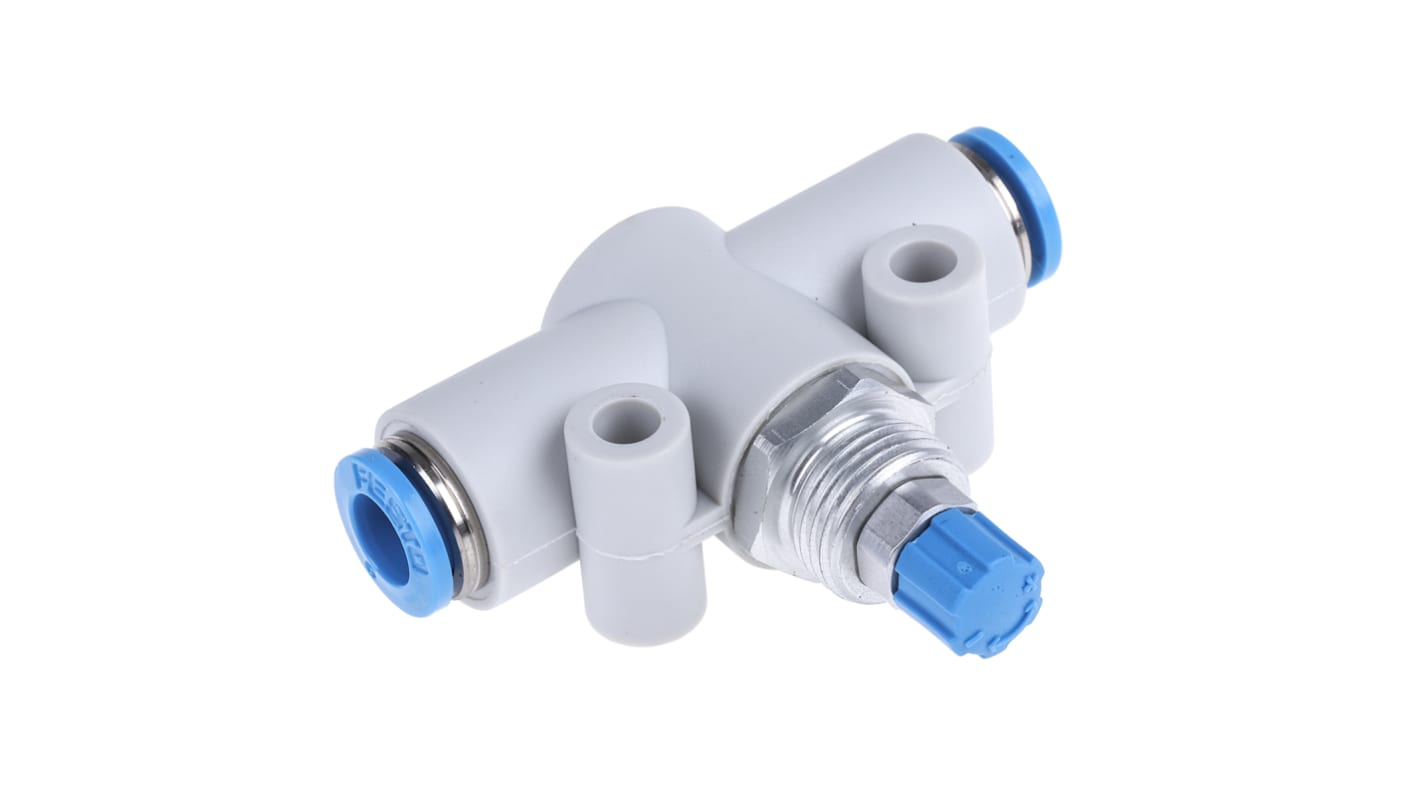

Festo Tube Flow Valve, 6mm Inlet, 6mm Outlet - GR-QS-6
Need to control the flow of compressed air or water in your pneumatic system? Turn to this tube flow valve from Festo. The valve adjusts to changes in pressure or temperature to regulate the speed at which compressed air or water travels, giving you a reliable and constant flow. Thanks to its push-in connector, it's simple to attach to a hose. You can mount it in any position, making it a versatile choice. As this valve has a broad operating temperature range of -10°C to +60°C, it's safe to use in harsh industrial environments.
PA-reinforced housing is resistant to wear and impact for a long service life
High-alloy steel adjusting screw is corrosion-resistant for use in harsh environments
Wide operating pressure range between 0.2 and 10 bar for versatile use
NBR (nitrile butadiene rubber) seal to prevent leaks and enhance efficiency
High-alloy steel adjusting screw is corrosion-resistant for use in harsh environments
Wide operating pressure range between 0.2 and 10 bar for versatile use
NBR (nitrile butadiene rubber) seal to prevent leaks and enhance efficiency
Applications
Bottling systems
Agricultural equipment
Automotive industry
Aerospace engineering
Agricultural equipment
Automotive industry
Aerospace engineering
What's the flow rate of this valve?
This valve has a standard nominal flow rate of 230L/min (litres per minute), so it's a good choice for high-speed applications.
Flow Regulators & Restrictors - Festo
Specificaties
Kenmerk | Waarde |
---|---|
Type | Flow Controller |
Inlet Port Type | Tube |
Tube Inlet Port | 6mm |
Tube Outlet Port | 6mm |
Manufacturer Series | GR |
Outlet Port Type | Tube |
Minimum Outlet Pressure | 0.2 (Operating)bar |
Maximum Outlet Pressure | 10 (Operating)bar |
Body Material | Polyamide |
Model Number p | 193969 |
Standards Met | ISO8573-1:2010, RoHS Compliant |
Proof Pressure | 6bar |
