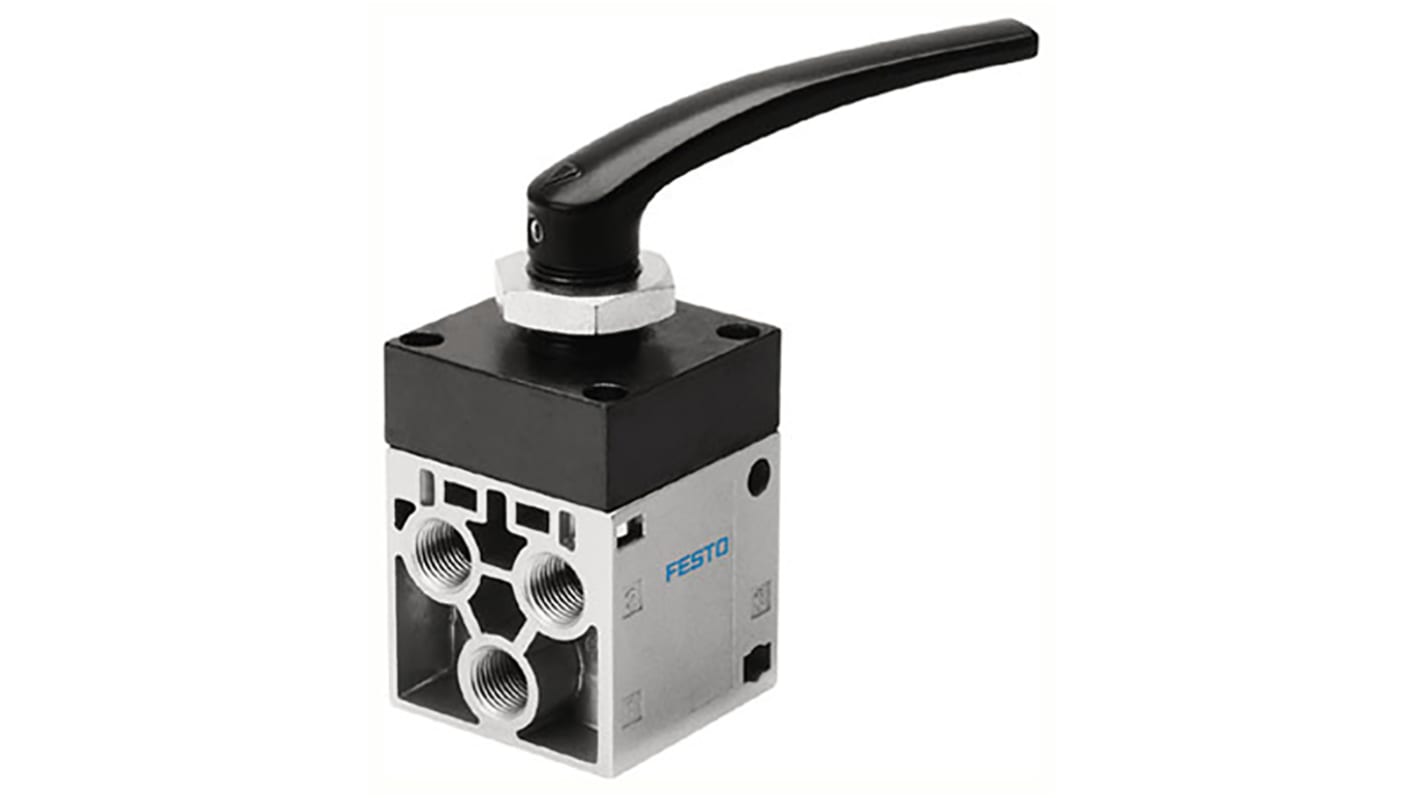

Festo Lever 5/2 Bistable Pneumatic Manual Control Valve H Series

  • RS-stocknr. 136-7108
  • Fabrikantnummer H-5-1/4-B
  • Fabrikant Festo
Datasheets
Wetgeving en compliance
Conform
Land van herkomst: BR
Productomschrijving

FESTO H Series Pneumatic Manual Control Valve

H Series control valves are designed to be small and compact with flow rates of up to 1,000 l/min, they offer outstanding pneumatic performance for a wide array of applications. Reliability is high as is durability due to proven piston spool and piston poppet valves. The series is versatile providing practical solutions to different requirements and round silencers for ducted exhaust air. Some of the H series feature reverse operation and some are suitable for vacuum applications.
This hand lever design has an operating air pressure of -0.95 to 10bar.


Features and Benefits:

• Aluminium die cast housing creating strength and durability
• G1/4 connection ports
• Operating temperature -10°C to +60°C
• Through hole mounting type

FESTO H Series Pneumatic Manual Control Valve

H Series control valves are designed to be small and compact with flow rates of up to 1,000 l/min, they offer outstanding pneumatic performance for a wide array of applications. Reliability is high as is durability due to proven piston spool and piston poppet valves. The series is versatile providing practical solutions to different requirements and round silencers for ducted exhaust air. Some of the H series feature reverse operation and some are suitable for vacuum applications.

This hand lever design has an operating air pressure of -0.95 to 10bar.

Features and Benefits:

• Aluminium die cast housing creating strength and durability
• G1/4 connection ports
• Operating temperature -10°C to +60°C
• Through hole mounting type

Manual Control Valves

Specificaties
Kenmerk Waarde
Manufacturer Series H
Body Material Die Cast Aluminium
7 op voorraad - levertijd is 1 werkdag(en)
Prijs Each
260,64
(excl. BTW)
315,37
(incl. BTW)
Aantal stuks
Per stuk
1 +
€ 260,64
