Festo GR Series Threaded Flow Valve, G 1/4 Inlet Port x G 1/4 Outlet Port, 2101

RS-stocknr.:: 175-4630
Fabrikantnummer:: GR-1/4
Fabrikant:: Festo

Festo GR Series Threaded Flow Valve, G 1/4 Inlet Port x G 1/4 Outlet Port, 2101

7 op voorraad - levertijd is 1 werkdag(en)

Toegevoegd

Prijs Per stuk

€ 75,76

(excl. BTW)

€ 91,67

(incl. BTW)

Aantal stuks	Per stuk
1 +	€ 75,76

RS-stocknr.:: 175-4630
Fabrikantnummer:: GR-1/4
Fabrikant:: Festo

Datasheets

Wetgeving en compliance

N.v.t.

Land van herkomst:: IN

Productomschrijving

FESTO GR One Way Flow Control Valve, Inline Installation

Introducing the FESTO GR series. The series features a range of one-way flow control valve fittings. The valve fittings are combined within a housing. This allows the flow and return speed to be set separately for single or double acting cylinders. The GR series facilitates an efficient and reliable pressure system for compressed air and water.

Features and Benefits

This range by FESTO includes one way pneumatic flow control valves

Maximum flexibility for pneumatic fittings

Wide operating temperature range

Available with a variety of different thread and diameter connector sizes, made from robust, solid materials

Through-hole and front panel mounting

Variations of tube and threading connection type options are available within the GR series

How do one way flow control valves work?

Flow control valves automatically adjust to variations in pressure and temperature in order to regulate speed, which is done through restrictions on the flow rate of compressed air. With a one-way flow control valve, the flow control function only works in one direction.

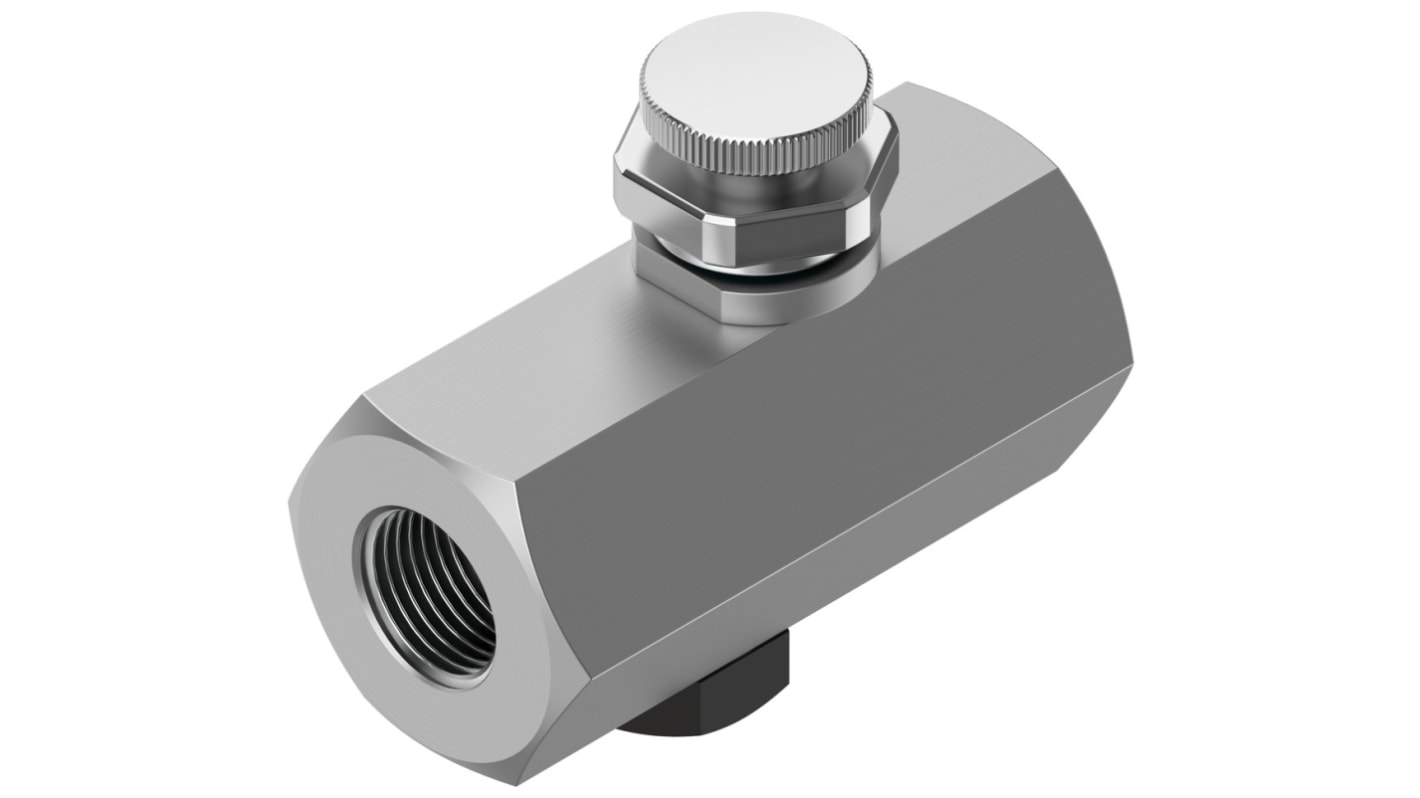

Festo GR Series Flow Valve, Aluminium Alloy, Controller - GR-1/4

This high-traffic flow valve by Festo offers precise flow control in automation, electronics, electrical, and mechanical industries. With a robust aluminium alloy construction, the flow controller ensures reliable performance under varying conditions.

Features & Benefits

• One-way flow control valve designed for optimal performance
• Knurled screw for precise adjustments in flow control direction
• Line installation mounting type for easy integration
• Nominal flow rates of 370 l/min and 150 l/min for efficient operation
• Can withstand operating pressures from 0.5 to 10 bar
• Wide ambient temperature range of -20 to 75°C for versatility
• Compliant with RoHS standards for environmental friendliness

Applications

• Ideal for use in pneumatic systems requiring precise flow control
• Perfect for automation applications where line installation is needed
• Suitable for industries where compressed air is the primary operating medium

Can it handle high operating pressures?

Yes, the Festo flow valve can withstand pressures ranging from 0.5 to 10 bar.

Will it work in extreme temperatures?

The valve is designed to operate in temperatures from -20 to 75°C, making it suitable for various environments.

Is lubricated operation possible with this valve?

Yes, lubricated operation is possible and subsequently required for further use of the valve.

Can it be used in different mounting positions?

The valve can be mounted in any position, offering flexibility in installation.

Does the valve comply with environmental regulations?

Yes, the materials used in the valve conform to RoHS standards for environmental protection.

Flow Regulators & Restrictors - Festo

Specificaties

Kenmerk	Waarde
Type	Flow Controller
Inlet Port Type	Threaded
Threaded Inlet Port	G 1/4
Manufacturer Series	GR
Outlet Port Type	Threaded
Threaded Outlet Port	G 1/4
Threaded Outlet Thread Standard	G
Threaded Inlet Thread Standard	G
Body Material	Aluminium Alloy
Model Number p	2101
