Norgren S/520 G 1/4 Female Non Return Valve, G 1/4 Female Port, 0.3 → 16bar

  • RS-stocknr. 722-570
  • Fabrikantnummer S/521
  • Fabrikant Norgren
Datasheets
Wetgeving en compliance
N.v.t.
Productomschrijving

Norgren Non-Return Valves

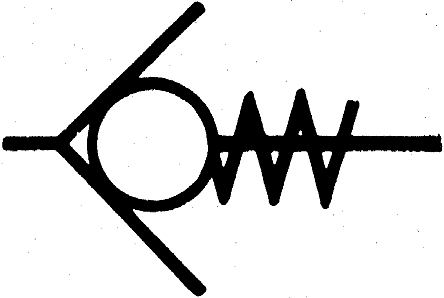

The Norgren S520/S521 series features a heavy-duty non-return valve offering high operating pressure coupled with a simple and reliable design. The valve permits the flow of air in one direction only, protecting the downstream side of the supply in the event of air supply failure.

//media.rs-online.com/t_line/L722564-01.gif

Features and Benefits

• Operating pressure of 0.3 to 16 bar with a cracking pressure of less than 0.1 bar
• Line mounted
• Operating temperature of -20 to +80°C
• Manufactured from brass with nitrile rubber seals.
• G1/4 port size

Specificaties
Kenmerk Waarde
Manufacturer Series S/520
Inlet Connection Type Threaded
Threaded Inlet Connection G 1/4 Female
Outlet Connection Type Threaded
Threaded Outlet Connection G 1/4 Female
Cracking Pressure <0.1bar
Threaded Inlet Gender Female
Minimum Operating Pressure 0.3bar
Maximum Operating Pressure 16 bar
Maximum Operating Temperature +80°C
Threaded Outlet Gender Female
Threaded Inlet Thread Size 1/4 in
Minimum Operating Temperature -20°C
Threaded Outlet Thread Standard G
Operating Pressure Range 0.3 → 16bar
Threaded Inlet Thread Standard G
Threaded Outlet Thread Size 1/4 in
Body Material Brass
14 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
16 op voorraad - levertijd is 1 werkdag(en) (UK-voorraad)
Prijs Each
38,63
(excl. BTW)
46,74
(incl. BTW)
Aantal stuks
Per stuk
1 - 4
€ 38,63
5 - 9
€ 37,45
10 +
€ 36,23
