Festo Brass Female Pneumatic Quick Connect Coupling, G 3/8 Female Threaded
- RS-stocknr.:
- 181-6158
- Fabrikantnummer:
- KD4-3/8-I
- Fabrikant:
- Festo
Tijdelijk niet op voorraad – nieuwe voorraad verwacht op 26-04-2024, met een levertijd van 1 werkdag.
Toegevoegd
Prijs Per stuk
€ 14,12
(excl. BTW)
€ 17,09
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 - 4 | € 14,12 |
| 5 - 9 | € 13,56 |
| 10 + | € 13,21 |
- RS-stocknr.:
- 181-6158
- Fabrikantnummer:
- KD4-3/8-I
- Fabrikant:
- Festo
Datasheets
Wetgeving en compliance
- Land van herkomst:
- DE
Productomschrijving

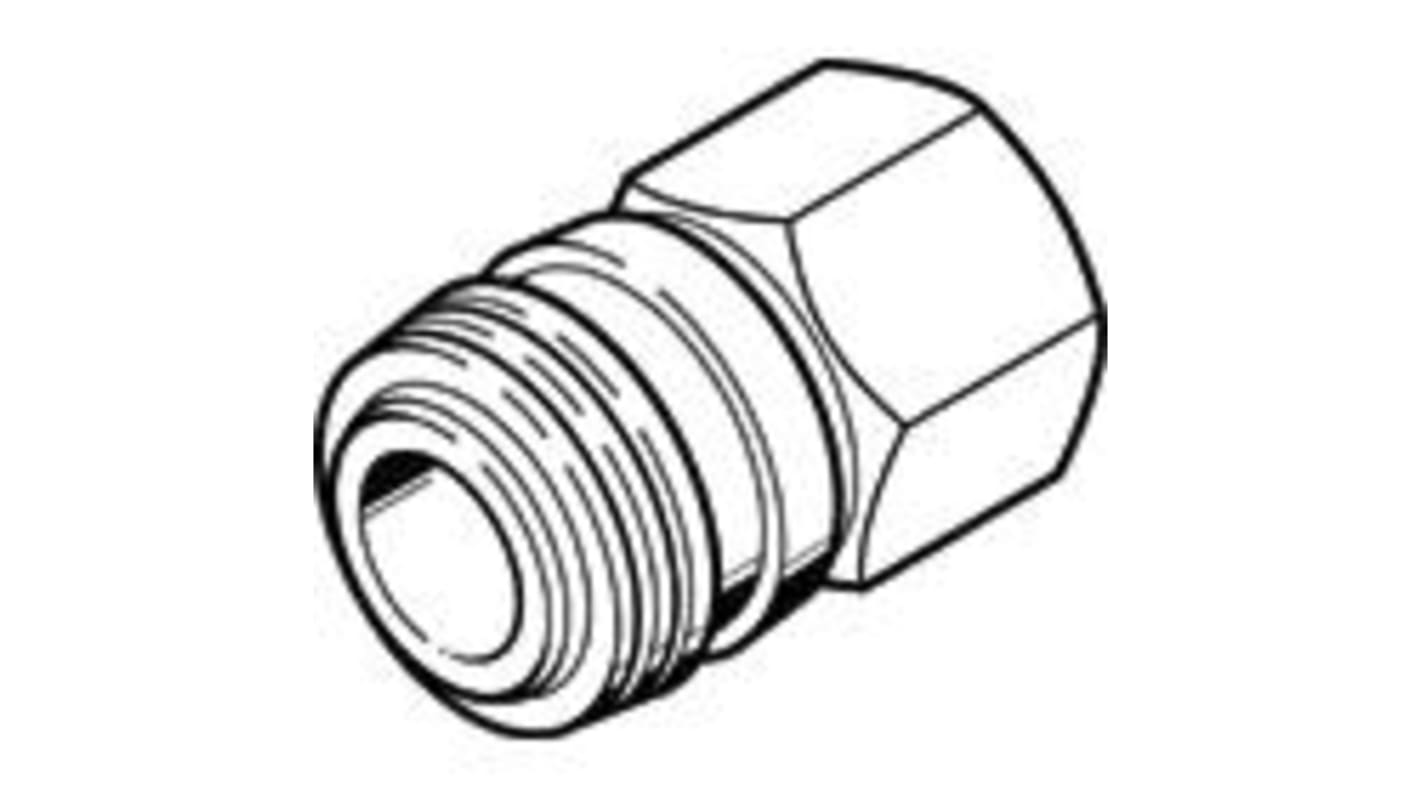

Festo K Series Pneumatic Quick Connect Sockets and Plugs
Quick connect couplers allow fast connection to tubing, hose or pipe, whilst giving a sealed connection so as not to reduce pressure in a pneumatic system. the connectors are designed to be reliable and allow tube coupling and uncoupling at speed. Festo reliable pneumatic fittings offer you several benefits which are outlined below.
Features and Benefits:
• Nickel-plated brass
• Operating pressure -0.95 bar to 12 bar
• Compressed air to ISO 8573-1:2010 [7:–:–]
• Ambient temperature: -10 °C to +60 °C
• Corrosion resistance class 1 (low corrosion stress)
• Operating pressure -0.95 bar to 12 bar
• Compressed air to ISO 8573-1:2010 [7:–:–]
• Ambient temperature: -10 °C to +60 °C
• Corrosion resistance class 1 (low corrosion stress)
Plug-in coupling with quick coupling socket KD and quick coupling plug KS, shut-off at one or both ends. To lock the coupling, push the plug into the socket. The plug automatically engages with an audible click when in a specific position. To unlock, push the releasing sleeve.
Festo Pneumatic Quick Connect Coupling
Specificaties
Kenmerk | Waarde |
|---|---|
| Threaded Connection | G 3/8 Female |
| Coupling Gender | Female |
| Thread Size | 3/8in |
| Coupling Type | Quick Connect Coupling Socket |
| Manufacturer Series | KD4 |
| Connection Type | Threaded |
| Material | Brass |
| Thread Gender | Female |
| Thread Standard | G |
| Maximum Operating Pressure | 12bar |
| Finish | Nickel Plated |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
