Productomschrijving

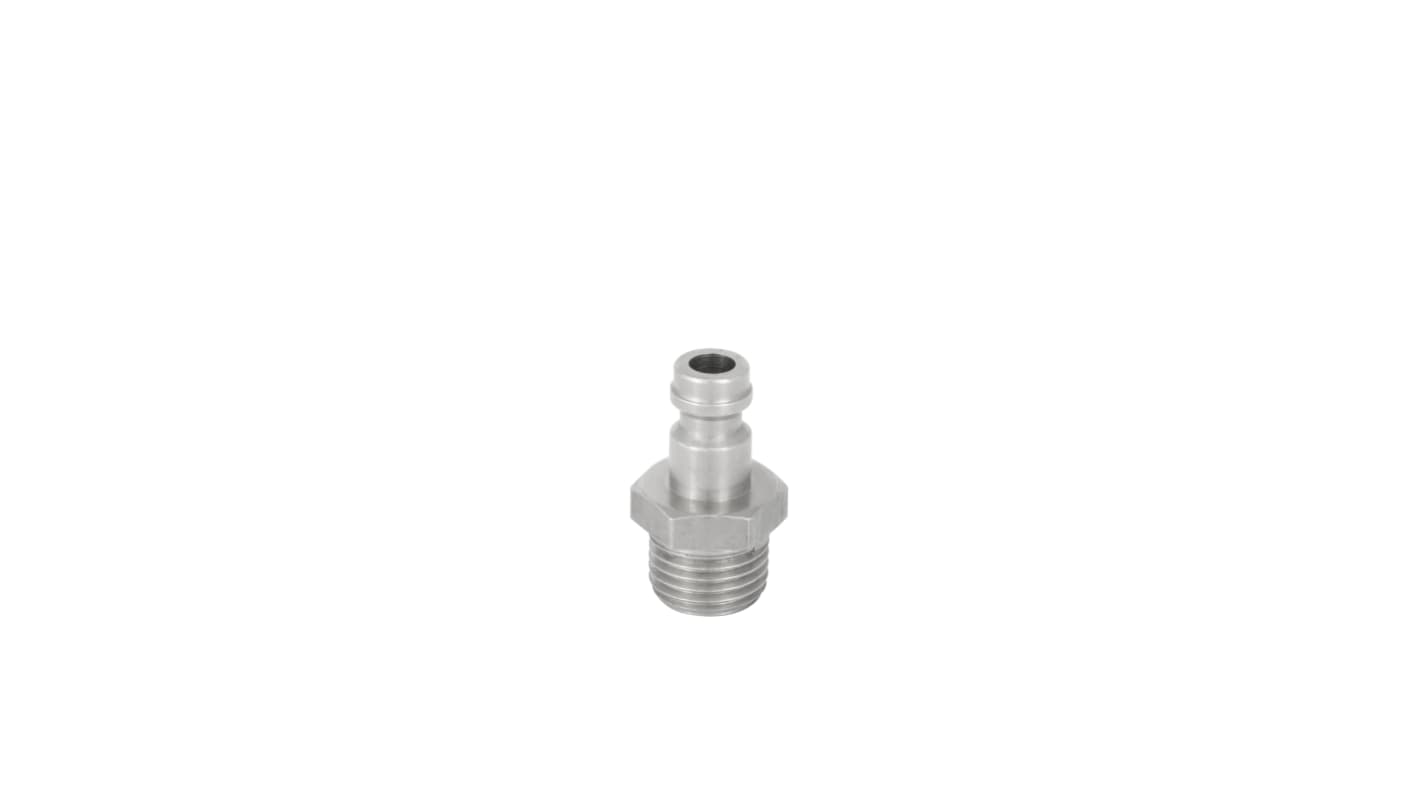

RS PRO Pneumatic Quick Connect Coupling Brass 1/8 in Threaded
Link up hose or pipe sections in pressurised gas systems with these miniature brass pattern connectors. Quick and simple to use, they're an effective choice for making reliable connections.
The nickel-plated couplings have threaded fittings with a 1/8-inch thread size, so you can connect sections with minimal effort. Ensure an extra-tight fit with the nitrile rubber seal – an essential component in maintaining gas pressure in pneumatic systems without having to use additional, possibly corrosive sealants. With small body dimensions, a high flow rate and a low-pressure drop, these connectors form precise connections. Extremely reliable, they can operate effectively in a temperature range of -20°C to +100°C and at up to 35 bars of pressure.
Commonly used in dental equipment and small air tools, these pneumatic quick connect couplings have a varied range of applications in pressurised systems.
The nickel-plated couplings have threaded fittings with a 1/8-inch thread size, so you can connect sections with minimal effort. Ensure an extra-tight fit with the nitrile rubber seal – an essential component in maintaining gas pressure in pneumatic systems without having to use additional, possibly corrosive sealants. With small body dimensions, a high flow rate and a low-pressure drop, these connectors form precise connections. Extremely reliable, they can operate effectively in a temperature range of -20°C to +100°C and at up to 35 bars of pressure.
Commonly used in dental equipment and small air tools, these pneumatic quick connect couplings have a varied range of applications in pressurised systems.
Features and Benefits
Connection types of Camozzi, Legris, Rectus 21 and Rectus 90
Male coupling
G 1/8-inch, threaded connection
Maximum operating pressure of 35 bar
Made of brass with a nickel-plated finish
Nitrile rubber seal
Operating temperature range of -20°C to +100°C
Male coupling
G 1/8-inch, threaded connection
Maximum operating pressure of 35 bar
Made of brass with a nickel-plated finish
Nitrile rubber seal
Operating temperature range of -20°C to +100°C
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specificaties
Kenmerk | Waarde |
---|---|
Threaded Connection | G 1/8 Male |
Coupling Gender | Male |
Connection Standard | Camozzi, Legris, Rectus 21, Rectus 90 |
Thread Size | 1/8in |
Coupling Type | Quick Connect Coupling Plug |
Manufacturer Series | 21 |
Connection Type | Threaded |
Material | Brass |
Thread Gender | Male |
Thread Standard | G |
Maximum Operating Pressure | 35bar |
Finish | Nickel Plated |
Seal Material | Nitrile Rubber |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +100°C |
