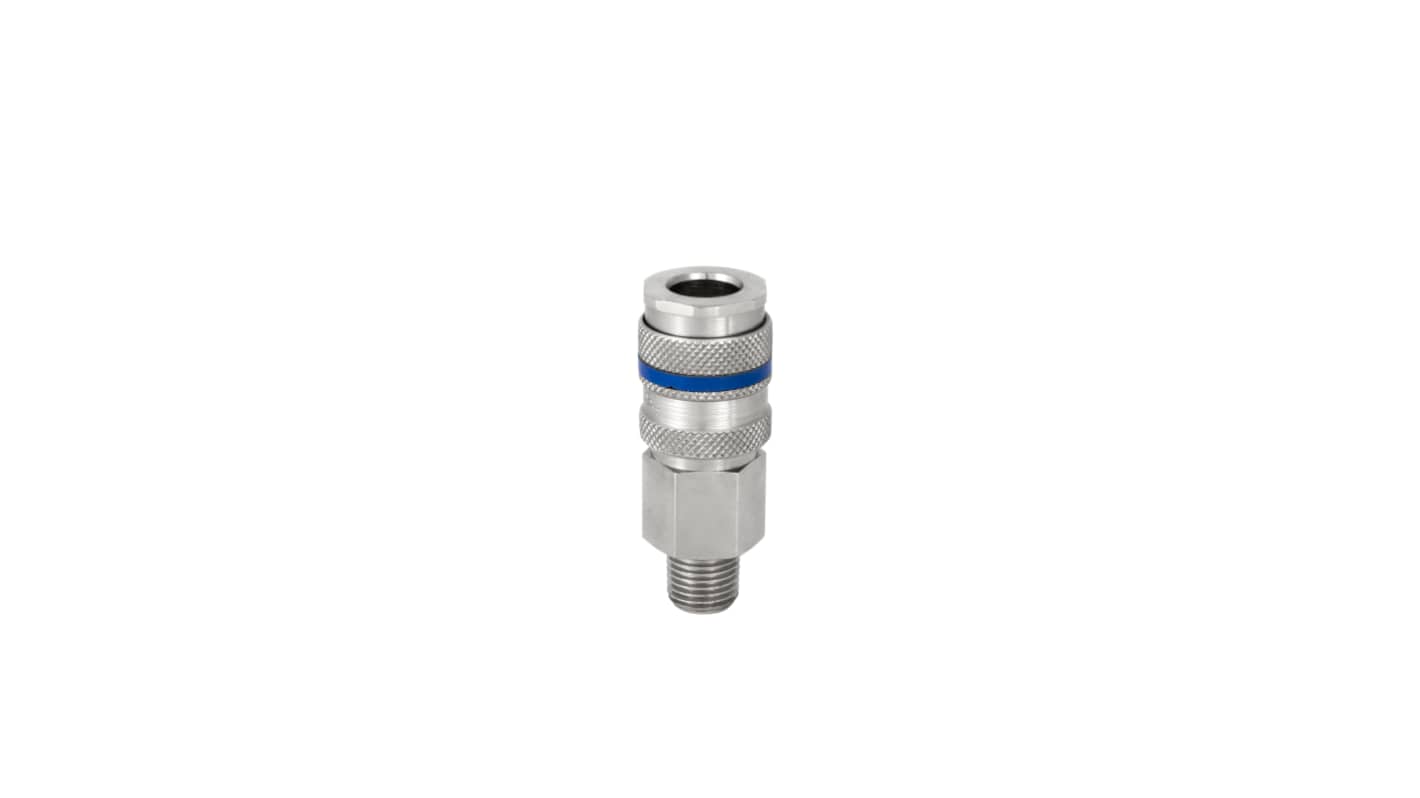

RS PRO Pneumatic Quick Connect Coupling Brass, Steel 3/8 in Threaded

Datasheets
Wetgeving en compliance
Conform
Land van herkomst: TR
Productomschrijving

Series 25 & 26 Connectors

Flow rate at 6 bar:
For Series 25 1800 l/min
For series 26 1000 l/min

Series 25 & 26 Connectors

Both Series 25 and 26 are 7,2 - 7,4 EuroStandards pattern.

Ideal for medium sized air tool connections, mains supply outlets and small machinery air feeds
Very high flow capacity with low pressure drop characteristics for maximum energy cost savings
One hand operation
Suitable for use with compressed air, water or any fluid compatible with constituent materials
Interchangeable with Cejn 320, Rectus 25 series

Specificaties
Kenmerk Waarde
Connection Standard CEJN 320, JWL 520, JWL 530, Parker PEF, Rectus 25, Rectus 26, TST 026
Coupling Gender Male
Threaded Connection G 3/8 Male
Manufacturer Series 25
Connection Type Threaded
Thread Size 3/8in
Material Brass, Steel
Thread Gender Male
Thread Standard G
Maximum Operating Pressure 35 bar
Finish Nickel Plated
Seal Material Nitrile Rubber
Minimum Operating Temperature -20°C
Maximum Operating Temperature +100°C
16 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
65 op voorraad - levertijd is 1 werkdag(en) (UK-voorraad)
Prijs Each
10,59
(excl. BTW)
12,81
(incl. BTW)
Aantal stuks
Per stuk
1 - 4
€ 10,59
5 - 9
€ 10,26
10 +
€ 9,93
