RS PRO Brass Male Pneumatic Quick Connect Coupling, G 1/2 Male Threaded
- RS-stocknr.:
- 667-1992
- Fabrikant:
- RS PRO
21 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
101 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
Toegevoegd
Prijs Per stuk
€ 10,88
(excl. BTW)
€ 13,16
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 - 4 | € 10,88 |
| 5 - 9 | € 10,54 |
| 10 + | € 10,20 |
- RS-stocknr.:
- 667-1992
- Fabrikant:
- RS PRO
Datasheets
Wetgeving en compliance
- Land van herkomst:
- TR
Productomschrijving

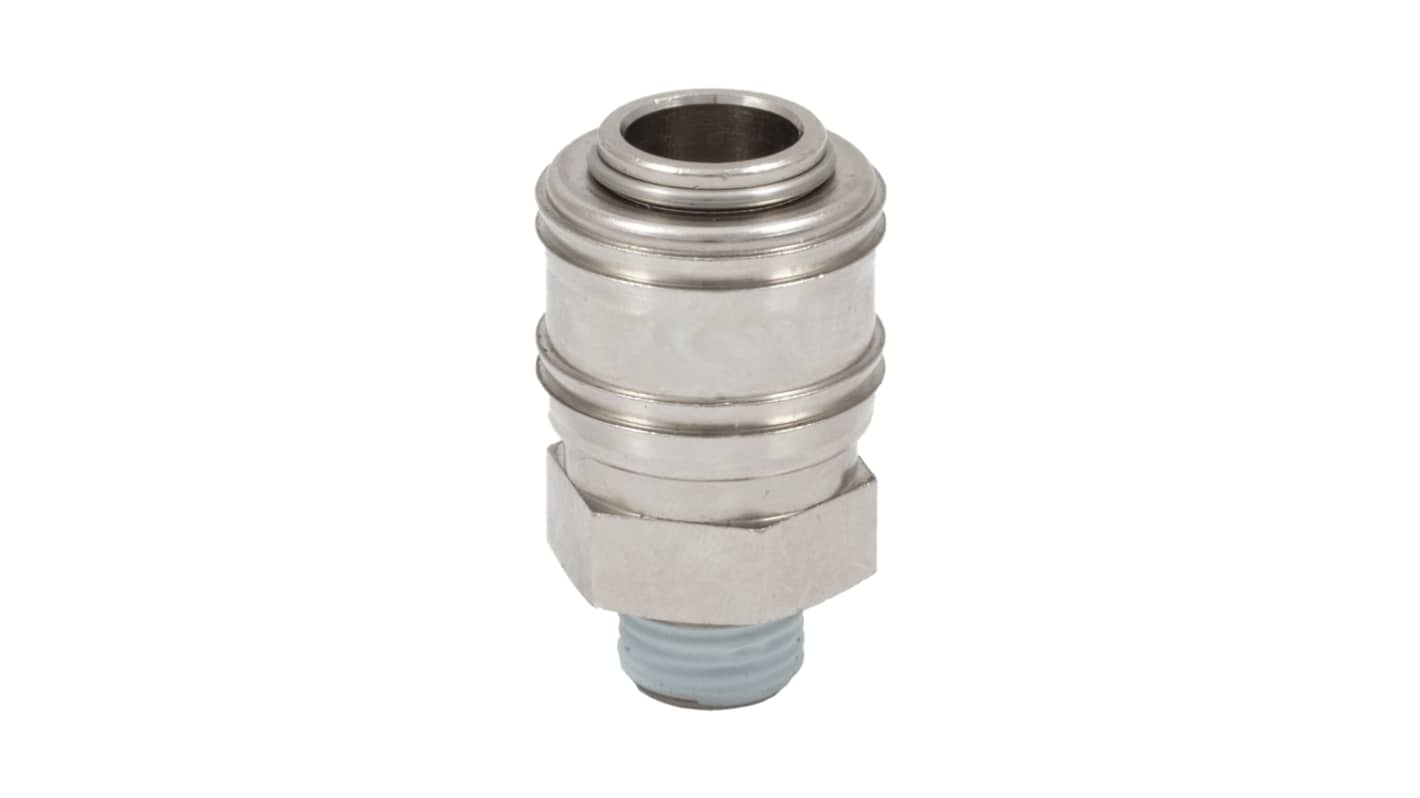

RS PRO Brass Male Pneumatic Quick Connect Coupling, G 1/2 Male Threaded
This RS PRO quick-connect coupling is a compact solution for joining pneumatic lines securely. It allows for one-handed operation and seals automatically to prevent leaks and pressure loss in your pneumatic system. You can use the coupling on the supply side of the connection. The built-in valve stops the flow of air when taking the connector out, allowing you to disconnect safely and easily.Thanks to its compatibility with Rectus 25 or 26 Series parts, the connector is easy to integrate into an existing pneumatic system. It's commonly used in garages and workshops for applications with a flow rate of up to 1000 L/min.
Features and Benefits
- CEJN 320, JWL 520, JWL 530, Parker PEF, Rectus 25, Rectus 26, TST 026 connection standard
- Male coupling gender
- G 1/2 male threaded connection
- Thread size of 1/2 in
- Brass material
- Nickel-plated finish
- Maximum operating pressure of 35 bar
- Minimum operating temperature of -20°C
- Maximum operating temperature of +100°C
- Nitrile rubber seal material
Specificaties
Kenmerk | Waarde |
|---|---|
| Threaded Connection | G 1/2 Male |
| Coupling Gender | Male |
| Connection Standard | CEJN 320, JWL 520, JWL 530, Parker PE, Rectus 25, Rectus 26, TST 025 |
| Thread Size | 1/2in |
| Manufacturer Series | 26 |
| Connection Type | Threaded |
| Material | Brass |
| Thread Gender | Male |
| Thread Standard | G |
| Maximum Operating Pressure | 35bar |
| Finish | Nickel Plated |
| Seal Material | Nitrile Rubber |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +100°C |
