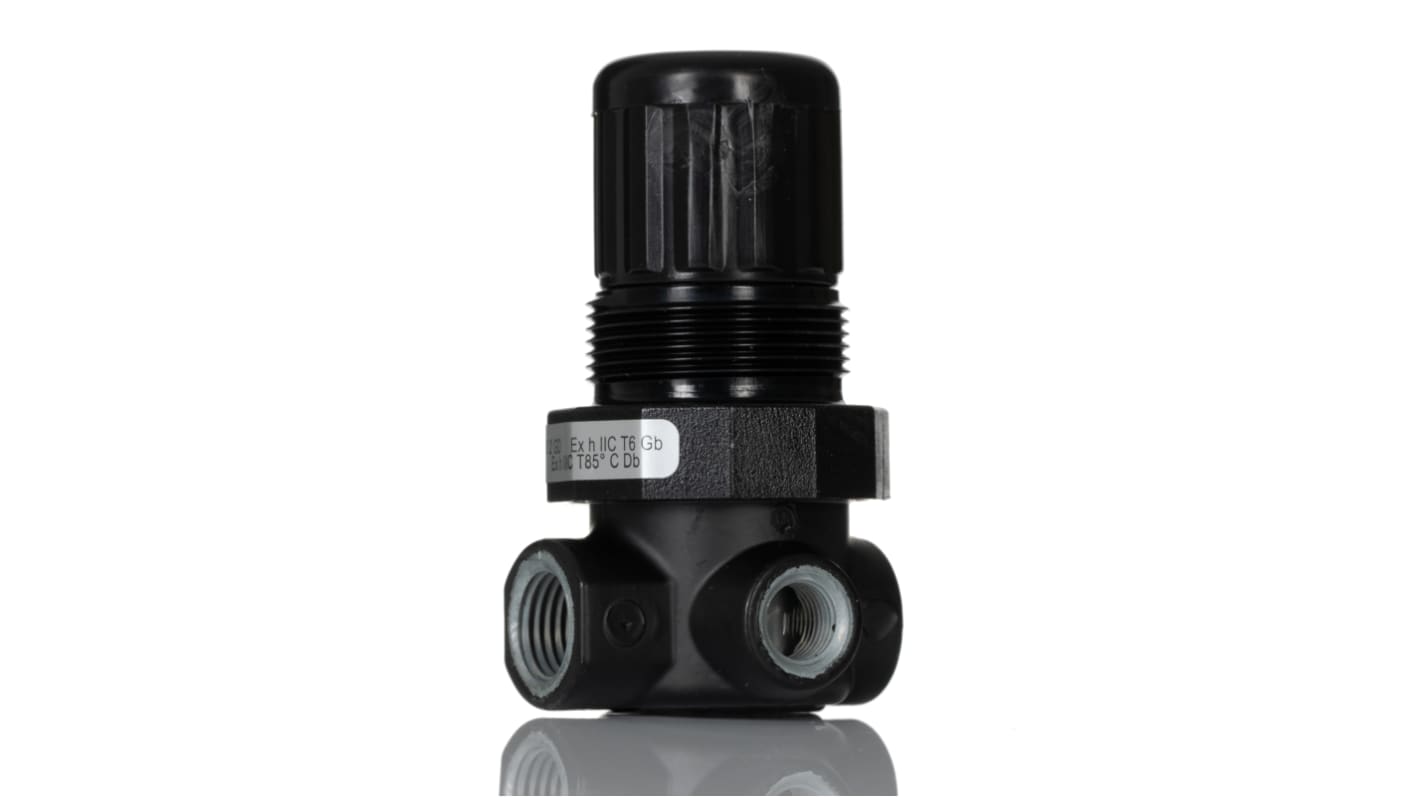

Norgren Pneumatic Regulator G 1/4 7L/s, 0.3 → 7bar

  • RS-stocknr. 122-655
  • Fabrikantnummer R07-200-RNKG
  • Fabrikant Norgren
Datasheets
Wetgeving en compliance
N.v.t.
Land van herkomst: GB
Productomschrijving

R07 Regulator

Miniature R07 regulator from Norgren. This regualtor has a compact design, a flow gauge port and can be disassembled without tools or having to remove it from the air line. The pneumatic regualator is available in 1/8" and 1/4" port sizes. The Norgren R07 series of pneumatic regulators also has a snap action knob lock which locks pressure when pushed in.

Optimum performance - minimum space
Temperature range -20°C to +65°C
Zinc alloy body
Relieving type
Incorporates a low torque push-to-lock adjustment knob
Panel or bracket mounted

//media.rs-online.com/t_line/L122649-01.gif
//media.rs-online.com/t_line/LD122649-01.gif
//media.rs-online.com/t_line/LD122649-02.gif
//media.rs-online.com/t_line/LD122649-03.gif
Specificaties
Kenmerk Waarde
Port Connection G 1/4
Minimum Outlet Pressure 0.3bar
Maximum Outlet Pressure 7bar
Maximum Input Pressure 20bar
Manufacturer Series R07
Pressure Gauge Port Size Rc 1/8
Port Connection Thread Size 1/4 in
Pressure Gauge Port Thread Size 1/8 in
Maximum Flow Rate 7L/s
Integral Check Valve Without Check Valve
Port Connection Thread Standard G
Minimum Operating Temperature -34°C
Maximum Operating Temperature +65°C
Pressure Gauge Port Thread Standard Rc
75 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
212 op voorraad - levertijd is 2 werkdag(en) (UK-voorraad)
Prijs Each
24,93
(excl. BTW)
30,17
(incl. BTW)
Aantal stuks
Per stuk
1 - 4
€ 24,93
5 - 9
€ 24,16
10 +
€ 23,39
