- RS-stocknr.:
- 121-5875
- Fabrikantnummer:
- VUVG-LK10-B52-T-M5-1H2L-S
- Fabrikant:
- Festo
- RS-stocknr.:
- 121-5875
- Fabrikantnummer:
- VUVG-LK10-B52-T-M5-1H2L-S
- Fabrikant:
- Festo
Wetgeving en compliance
- Land van herkomst:
- DE
Productomschrijving

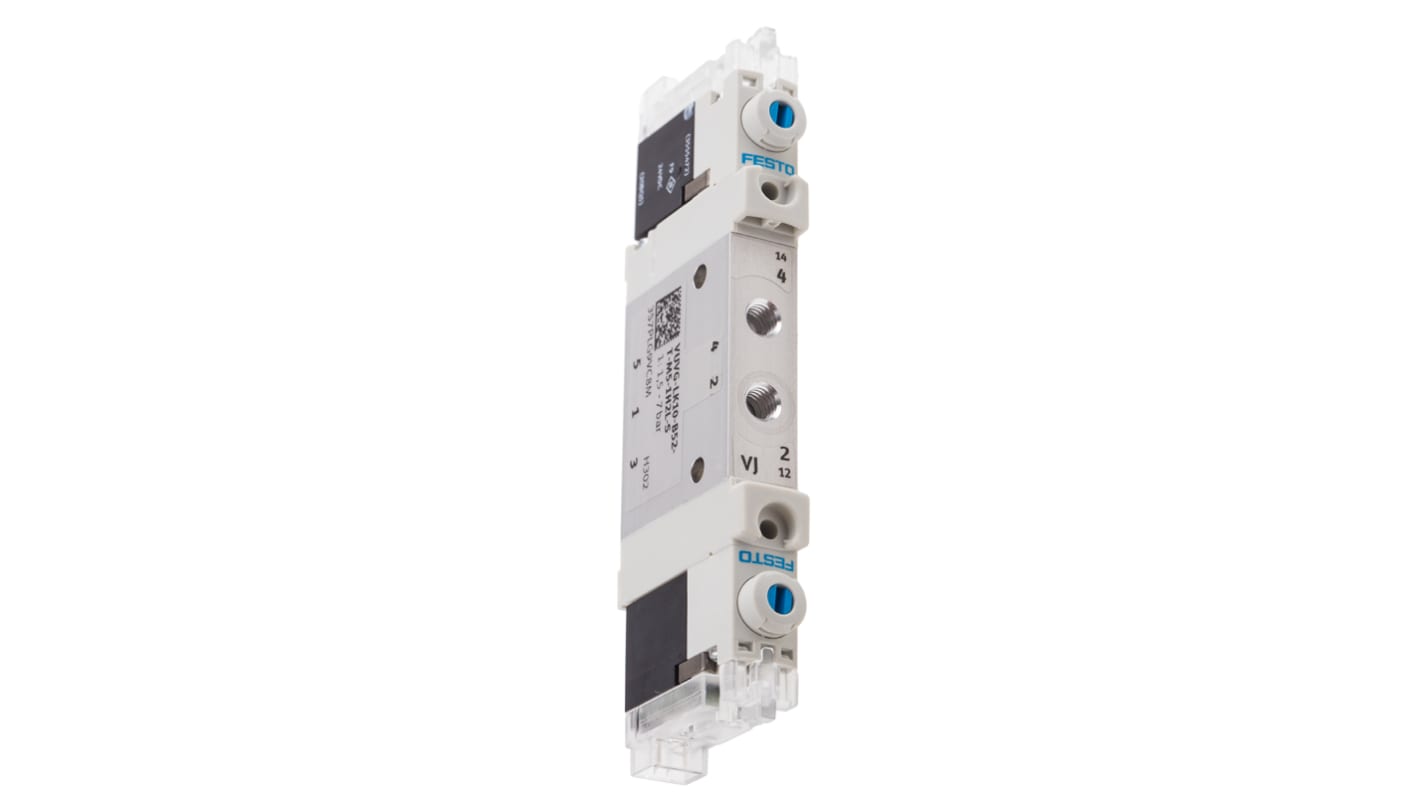

Festo Solenoid Valve, 0.7W Solenoid Power Consumption, Aluminium Alloy Body - VUVG-LK10-B52-T-M5-1H2L-S
If you're looking for a high-performance in a compact package, try this solenoid valve from Festo. Despite its 10mm valve size, this mini marvel can control the flow of compressed air in your pneumatic system up to a maximum flow rate of 195L/min. As the solenoid uses just 0.7W during operation, it's also an energy-efficient option. The 5/2 port and position configuration makes this unit a smart choice for controlling double-acting actuators.
Features & Benefits
M5 connection port thread for wide compatibility
Aluminium alloy body is tough and corrosion-resistant
Wide operating pressure range between 1.5 and 7 bar for versatile use
Inline mounting style saves space in a busy setup
Works effectively in a wide operating temperature range from -5°C to +50°C
Aluminium alloy body is tough and corrosion-resistant
Wide operating pressure range between 1.5 and 7 bar for versatile use
Inline mounting style saves space in a busy setup
Works effectively in a wide operating temperature range from -5°C to +50°C
Applications
Textile industry
Logistics centres
Mechanical workshops
Logistics centres
Mechanical workshops
Does this valve have an IP rating?
Yes. It has an IP40 rating, which means that it's protected against solid objects larger than 1mm. It's also touch-proof, so you can handle it safely without risking an electric shock.
How can I check the status of the valve?
It has an LED, so you can confirm the unit's signal status at a glance.
Specificaties
Kenmerk | Waarde |
---|---|
Function | 5/2 |
Connection Port Thread | Metric M5 |
Actuation Type | Solenoid/Solenoid |
Manufacturer Series | VUVG |
Mounting Style | Inline |
Solenoid Voltage | 24V dc |
Solenoid Fitted | Yes |
Number of Ports | 5 |
Body Material | Aluminium Alloy |
Maximum Flow Rate | 195L/min |
Solenoid Power Consumption | 0.7W |
Minimum Operating Pressure | 1.5bar |
Maximum Operating Pressure | 7bar |
Number of Positions | 2 |
Thread Size | M5 |
Maximum Operating Temperature | +50°C |
Minimum Operating Temperature | -5°C |
Configuration | 5/2 |
Thread Standard | Metric |
