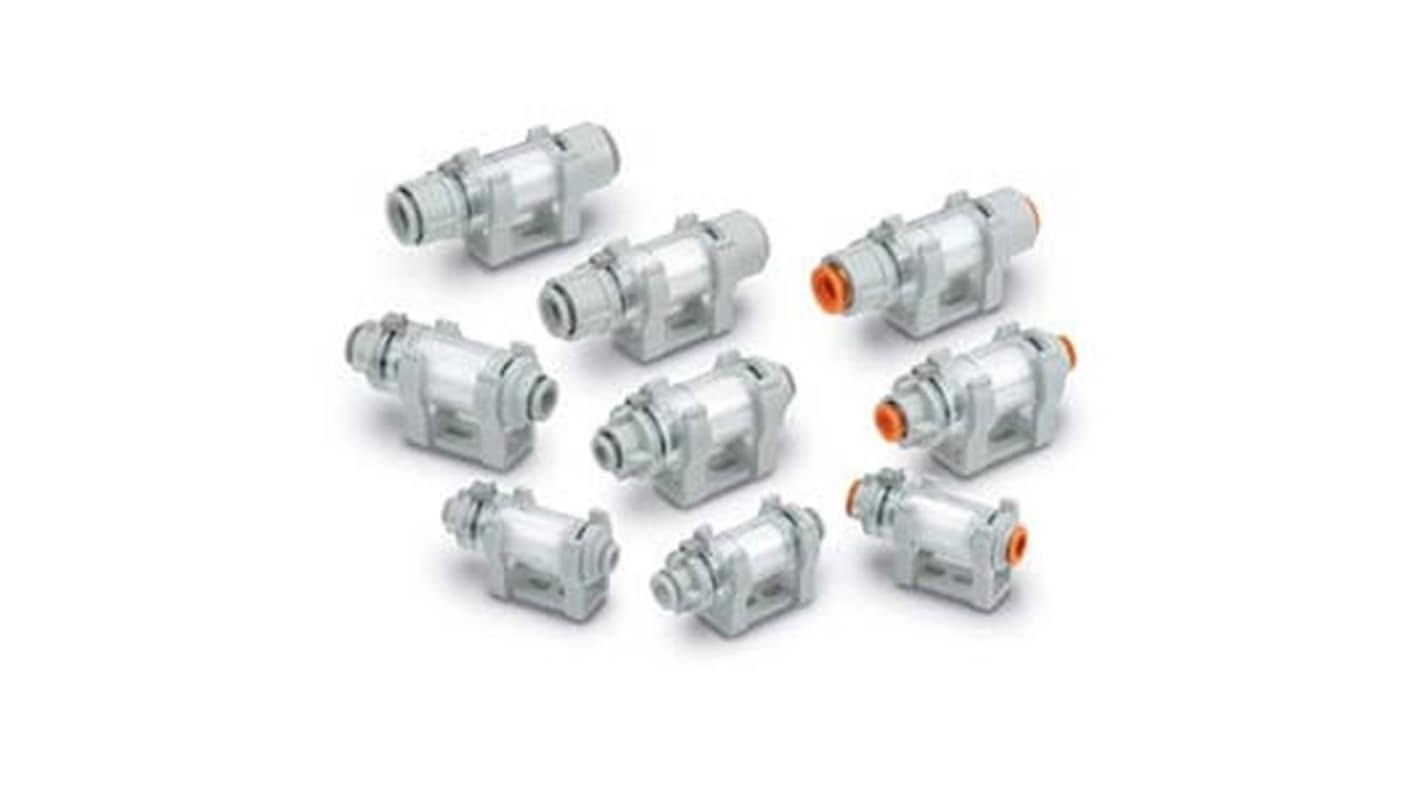

SMC Vacuum Filter - ZFC Series, 5 μm, 4 mm Port Connection
- RS-stocknr.:
- 391-932
- Fabrikantnummer:
- ZFC53-B-X01
- Fabrikant:
- SMC
Subtotaal (1 eenheid)*
€ 14,86
(excl. BTW)
€ 17,98
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 10 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 14,86 |
*prijsindicatie
- RS-stocknr.:
- 391-932
- Fabrikantnummer:
- ZFC53-B-X01
- Fabrikant:
- SMC
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SMC | |
| Port Size | 4 mm | |
| Product Type | Vacuum Filter | |
| Filtration Size | 5μm | |
| Series | ZFC | |
| Housing Material | Polycarbonate | |
| Maximum Flow Rate | 20L/min | |
| Seal Material | Halogenated Nitrile Rubber | |
| Element Material | Plastic | |
| Maximum Operating Pressure | 1 Mpa | |
| Maximum Operating Temperature | 60°C | |
| Minimum Operating Temperature | 0°C | |
| Minimum Operating Pressure | -100kPa | |
| Standards/Approvals | RoHS | |
| Alles selecteren | ||
|---|---|---|
Merk SMC | ||
Port Size 4 mm | ||
Product Type Vacuum Filter | ||
Filtration Size 5μm | ||
Series ZFC | ||
Housing Material Polycarbonate | ||
Maximum Flow Rate 20L/min | ||
Seal Material Halogenated Nitrile Rubber | ||
Element Material Plastic | ||
Maximum Operating Pressure 1 Mpa | ||
Maximum Operating Temperature 60°C | ||
Minimum Operating Temperature 0°C | ||
Minimum Operating Pressure -100kPa | ||
Standards/Approvals RoHS | ||
- Land van herkomst:
- JP
The SMC In-line air filter from the series ZFC delivers exceptional filtration efficiency for applications where air quality is paramount. Designed with precision, it effectively caters to both positive and vacuum pressures, boasting a robust filtration rating. This filter’s advanced design allows for the seamless integration of components, ensuring reliable and efficient operation. Its versatile mounting options and easy installation make it suitable for various industrial environments. Additionally, the choice of materials guarantees durability while maintaining functionality even in challenging conditions. This product not only enhances equipment performance but also protects downstream components from particulate contamination.
Facilitates easy visual inspection of element condition for maintenance efficiency
Includes options for different tubing sizes to meet diverse application needs
Designed to efficiently operate under a wide pressure range, ensuring versatility
Features a compact design that saves valuable installation space
