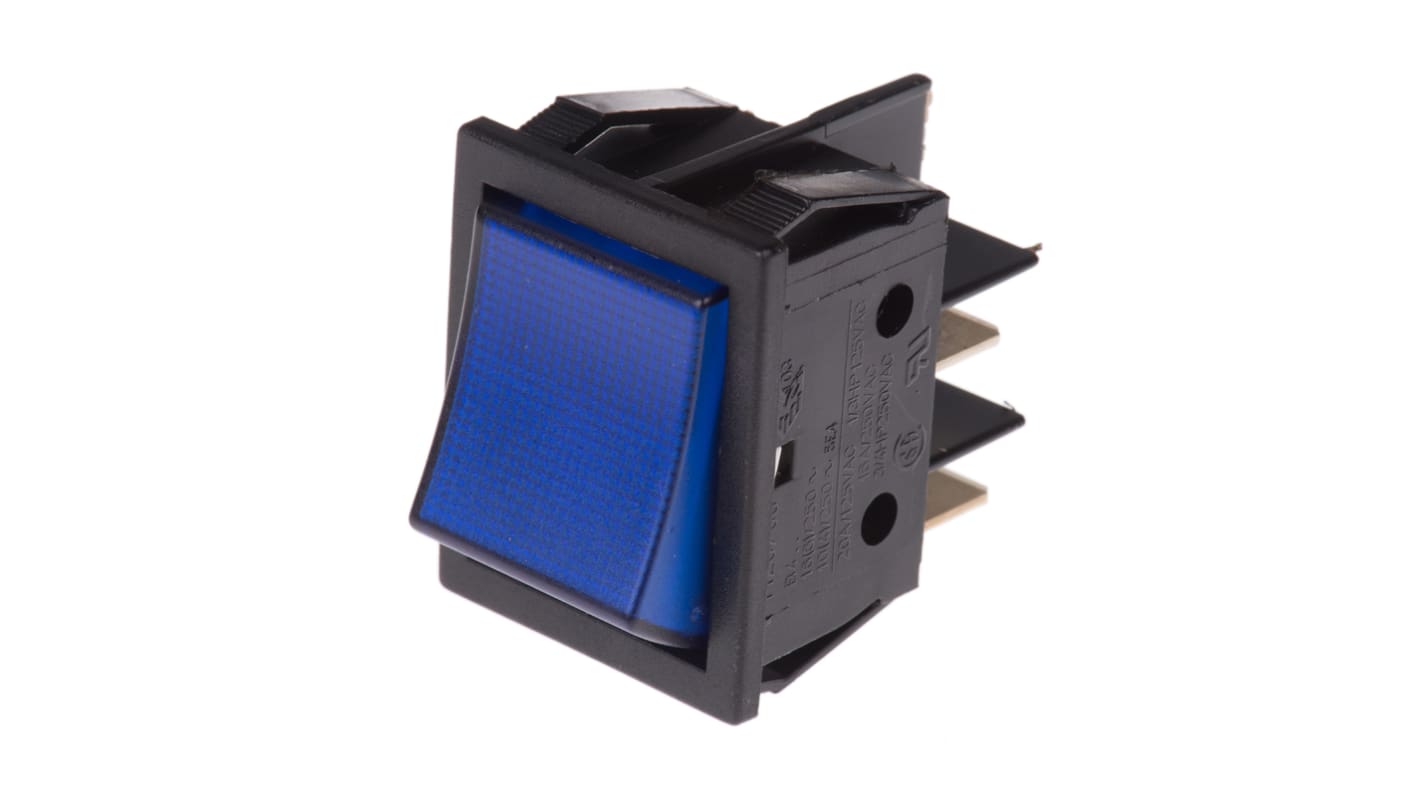

Molveno Illuminated DPST, On-None-Off Rocker Switch Panel Mount
- RS-stocknr.:
- 528-7858
- Fabrikantnummer:
- B418C1F000000
- Fabrikant:
- Molveno
- RS-stocknr.:
- 528-7858
- Fabrikantnummer:
- B418C1F000000
- Fabrikant:
- Molveno
Wetgeving en compliance
- Land van herkomst:
- IT
Productomschrijving
B4 Series Illuminated
Double pole illuminated rocker switch
Electrical Life; 50000 operations
Polycarbonate actuator
Contact gap; ≥ 3mm
IP Protection; IP40
Electrical Life; 50000 operations
Polycarbonate actuator
Contact gap; ≥ 3mm
IP Protection; IP40
Specificaties
Kenmerk | Waarde |
|---|---|
| Contact Configuration | DPST |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 22mm |
| Panel Cut Out Height | 30.8mm |
| Contact Current Rating | 16 A |
| Illuminated | Yes |
| Actuator Colour | Blue |
| Mounting Type | Panel Mount |
| IP Rating | IP40 |
| Actuator Shape | Rectangular |
| AC Voltage Rating | 250V |
| Panel Cut Out Size | 30.8 x 22mm |
| Contact Resistance | 10mΩ |
| Mechanical Life | 50000Operations |
