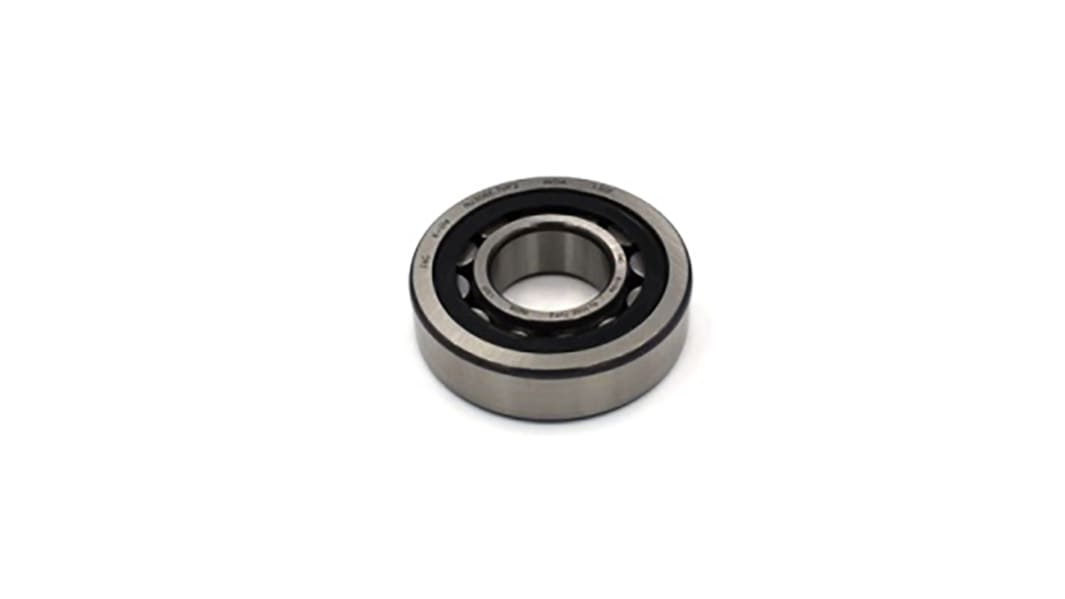

Cylindrical roller bearing 20mm id 52mm

  • RS-stocknr. 191-3907
  • Fabrikantnummer NJ304-E-XL-TVP2
  • Fabrikant INA
Datasheets
Wetgeving en compliance
Conform
Productomschrijving

Bearing arrangements are subjected to very high radial loads Not only high radial forces but also axial loads from one or both directions must be supported by the bearing position (semi-locating or locating bearing function) Bearing arrangements must have very high rigidity Axial displacements of the shaft relative to the housing must be compensated without constraint in the bearing (in the case of bearings with a non-locating or semi-locating bearing function) High radial loads and very high speeds occur but the very high radial load carrying capacity of full complement cylindrical roller bearings is not required The bearings should be separable (one bearing ring can be removed) for easier mounting

Specificaties
Kenmerk Waarde
Inside Diameter 20mm
Outside Diameter 52mm
Roller Bearing Type Cylindrical
Race Width 15mm
Bore Type Parallel
Static Load Rating 27000N
Cage Material Plastic
Number of Rows 1
Dynamic Load Rating 37500N
End Type Open
Fatigue Limit Load 3950N
3 op voorraad - levertijd is 1 werkdag(en).
Prijs Each
44,13
(excl. BTW)
53,40
(incl. BTW)
Aantal stuks
Per stuk
1 - 4
€ 44,13
5 - 9
€ 42,36
10 - 24
€ 41,48
25 +
€ 40,60
