- RS-stocknr.:
- 125-9492
- Fabrikantnummer:
- FPH
- Fabrikant:
- Rohde & Schwarz
2 op voorraad - levertijd is 1 werkdag(en)
Toegevoegd
Prijs Per stuk
€ 4.960,00
(excl. BTW)
€ 6.001,60
(incl. BTW)
Aantal stuks | Per stuk |
1 + | € 4.960,00 |
- RS-stocknr.:
- 125-9492
- Fabrikantnummer:
- FPH
- Fabrikant:
- Rohde & Schwarz
Wetgeving en compliance
- Land van herkomst:
- CZ
Productomschrijving
FPH Spectrum Rider Handheld Spectrum Analyser
The R&S®Spectrum Rider FPH is a versatile, user-friendly capacitive touch screen instrument in a rugged and appealing design. The frequency range of the basic analyzer is 5 kHz to 2 GHz. The upper frequency limit can easily be extended to 3 GHz or 4 GHz via keycode
Key Facts
Frequency ranges from 5 kHz to 2/3/4 GHz; upgrade via keycode
Solid RF performance
Ideal for field use: 8 hour battery life, 2.5 kg (5.5 lb) weight, backlit keypad, fast boot time, nonreflective display, small footprint, ruggedized housing
Large colour display with touch and gesture operation
Measurement wizard that supports measurement campaigns speeds up measurements and avoids errors
Features and options for various industries such as aerospace and defence, wireless communications, broadcasting, spectrum regulators and education
Easy and cost-efficient upgrades of all options via software keycode
Three-year warranty as standard (battery one year)
Features and Benefits
Small and lightweight with a long battery life
Wide range of accessories
Non-reflective display and backlit keypad designed for outdoor use
Ruggedized in line with MIL‑PRF‑28800F class 2
Solid RF performance for diagnostics in the lab
EMI debugging with optional near-field probes
Easy to use with smartphone-like gestures on the touchscreen
Configuration overview menu
Setting frequencies with channel tables
Supplied with
Lithium ion battery pack, USB cable, AC power supply with country-specific adapters for EU, GB, US, AUS, CH, CD-ROM with R&S®InstrumentView software and documentation, quick start guide, side strap

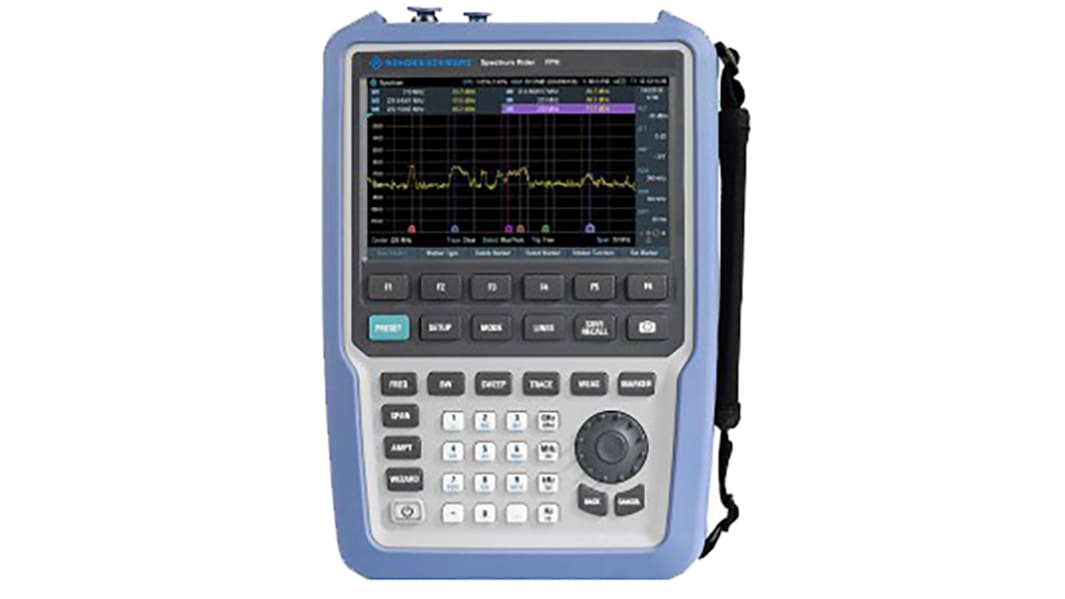

Rohde & Schwarz Spectrum Rider FPH Handheld Spectrum Analyser
Specificaties
Kenmerk | Waarde |
---|---|
Bandwidth | 5 kHz → 2 GHz |
Wave Traces | Reference |
Sweep Modes | Average, Continuous, Peak Hold |
Setting Modes | Span |
Series | Spectrum Rider |
Maximum Frequency | 2 GHz, 3 (with FPH-B3 Option) GHz, 4 (with FPH-B4 Option) GHz |
Minimum Frequency | 5 kHz |
Display Type | WVGA |
Screen Size | 800 x 480pixel |
Markers | Single |
RF Input | N Socket |
Interface Type | 10/100BASE-T, RJ45, USB |
Desktop/Handheld | Handheld |
Plug Type | Australia, Canada, China, Europe, Switzerland, UK, US |
Maximum Operating Temperature | +60°C |
Minimum Operating Temperature | -30°C |
Width | 202mm |
Height | 294mm |
Length | 76mm |
Model Number p | Spectrum Rider FPH |
Dimensions | 76 x 202 x 294mm |
Weight | 2.5kg |
Battery Life | 8 h |
Battery Type | Li-ion |
