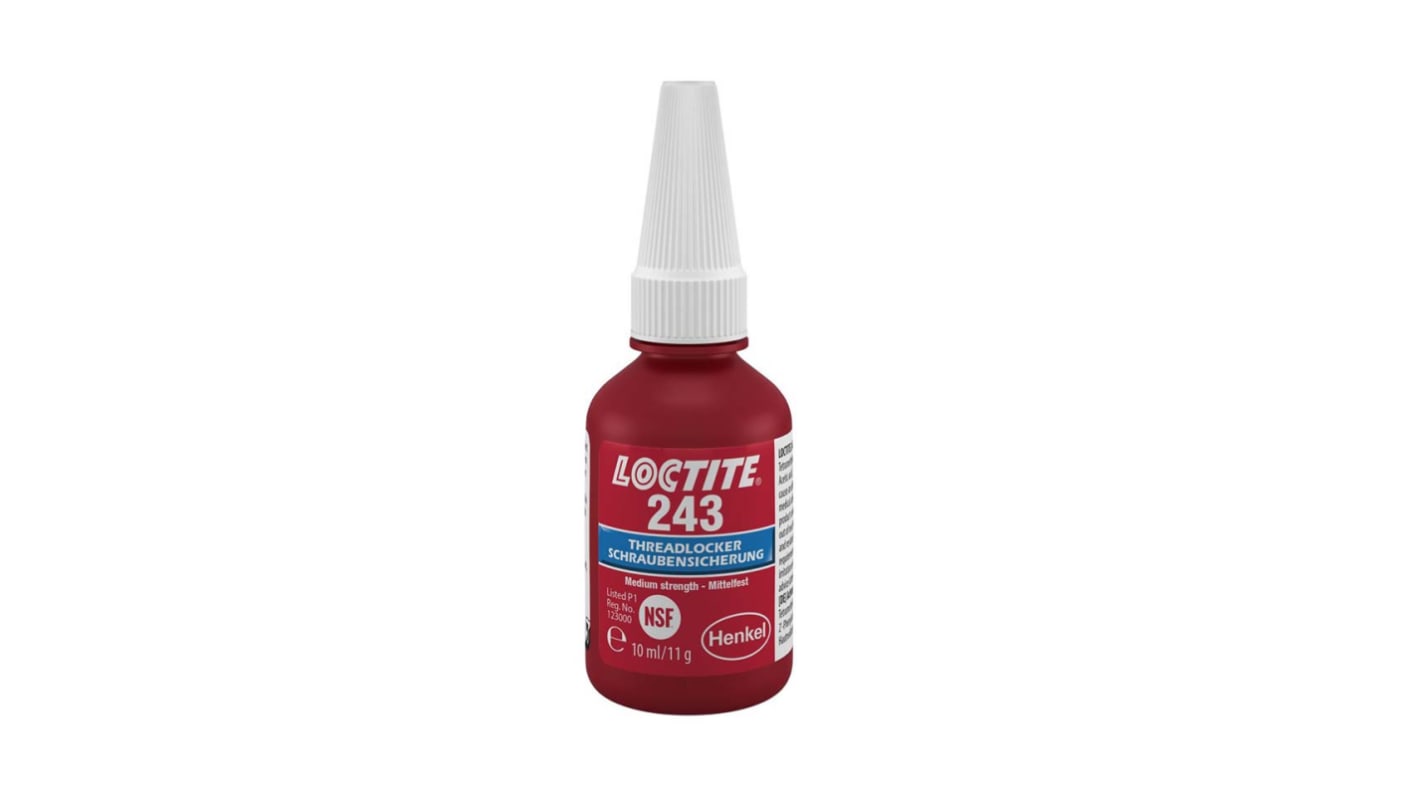

Loctite 243 Blue Thread lock, 10 ml, 2 h Cure Time

  • RS-stocknr. 208-6416
  • Fabrikantnummer 243, 10ML
  • Fabrikant Loctite
Datasheets
Wetgeving en compliance
Conform
Land van herkomst: IE
Productomschrijving

Loctite® 243 Threadlocking

Medium strength oil tolerant torque tension grade
General purpose threadlocking
Particularly suitable for less active surfaces e.g. stainless steel
Prevents loosening through vibration and leakage of threaded fasteners

Note

Testing should be carried out prior to contact with styrene, acrylic and polycarbonate based plastics to ensure compatibility.

Loctite Thread lock

The Loctite 10ml blue thread lock is designed for locking and sealing of threaded fasteners, which requires normal disassembly with standard hand tools. This product cures when confined in the absence of air between close-fitting metal surfaces and prevents loosening and leakage from shock and vibration. The thixotropic nature of Loctite 243 reduces the migration of liquid product after application to the substrate. It provides robust curing performance. It not only works on active metals (e. G. brass, copper) but also on passive substrates such as stainless steel and plated surfaces. This product offers high-temperature performance and oil tolerance. It tolerates minor surface contaminations from various oils, such as cutting, lubrication, anti-corrosion and protection fluids.
Note:
Testing should be carried out before contact with styrene, acrylic and polycarbonate-based plastics to ensure compatibility.

Features and Benefits

• Permits disassembly with hand tools for servicing
• Medium strength oil tolerant torque tension grade
• General-purpose thread locking
• Particularly suitable for less active surfaces like stainless steel
• Prevents loosening on vibrating assemblies
• Effective in all types of metal turning
• Cure time is 24 hours
• Viscosity is 1300 → 3000mPa/s
• Operating temperature ranges between -55⁰C and 180⁰C
• Chemical composition of dimethacrylate

Applications

• Pumps
• Motors
• Gearbox
• Presses

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007

Threadlocking and Retainers

Specificaties
Kenmerk Waarde
Trade Name Loctite 243
Application Threadlocking
Material Compatibility Metal
Threadlocking Strength Medium
Cure Time 24 h
Anaerobic Yes
Colour Blue
Product Form Liquid
Package Type Bottle
Package Size 10 ml
Maximum Operating Temperature +180°C
Minimum Operating Temperature -55°C
Operating Temperature Range -55 → +180 °C
Odour Characteristic
Special Features Anaerobic
Viscosity Description Medium Viscosity
Chemical Composition Dimethacrylate Ester
Viscosity Measurement 1300 → 3000mPa/s
707 op voorraad - levertijd is 1 werkdag(en)
Prijs Each
13,93
(excl. BTW)
16,86
(incl. BTW)
Aantal stuks
Per stuk
1 - 5
€ 13,93
6 - 14
€ 13,37
15 +
€ 13,10
