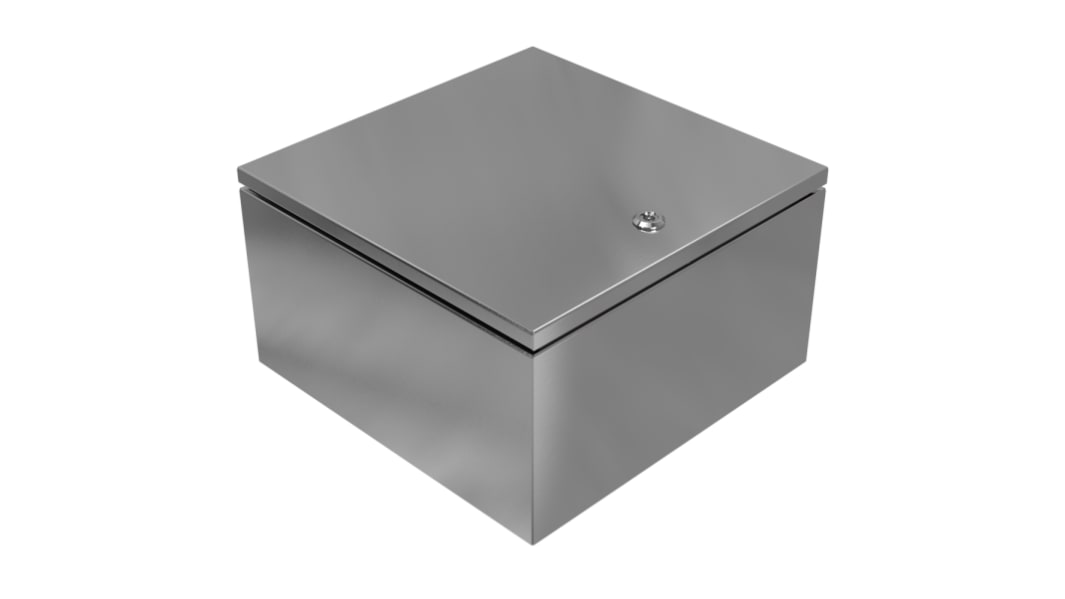

Rose Stainless Steel Enclosures Series Stainless Steel Wall Box, IP66, 380 mm x 380 mm x 217mm
- RS-stocknr.:
- 472-9519
- Fabrikantnummer:
- 370044210
- Fabrikant:
- Rose
Sorry, we konden onze voorraadniveaus nu niet controleren. Probeer de pagina te vernieuwen.
Toegevoegd
Prijs Per stuk
€ 523,29
(excl. BTW)
€ 633,18
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 + | € 523,29 |
- RS-stocknr.:
- 472-9519
- Fabrikantnummer:
- 370044210
- Fabrikant:
- Rose
Wetgeving en compliance
- Land van herkomst:
- DE
Productomschrijving
ROSE Stainless Steel Wall Box, 380mm Height, 217mm Depth - IGS Series - 37004421
If you need a spacious enclosure to store and protect electrical components in your industrial environments, turn to this wall box from ROSE. Its large dimensions of 380 (height) x 380 (width) x 217mm (depth) provide enough space for numerous devices, such as circuit breakers and relays. The stainless steel construction means that the box is durable and can withstand corrosion, so it's suitable for long-term use in harsh settings. This material is also non-absorptive and easy to clean, making it a hygienic choice for use in the food production industry.
Features & Benefits
• Comes with a hinged door for easy access to your components
• Suitable for both wall and DIN rail mounting for versatility
• Double ward lock prevents unauthorised entry for safety and security
• IP66 rating means it's dust-tight and protected against high-pressure water jets
• Suitable for both wall and DIN rail mounting for versatility
• Double ward lock prevents unauthorised entry for safety and security
• IP66 rating means it's dust-tight and protected against high-pressure water jets
Applications
• Airports
• Supermarkets and shopping centres
• Assembly lines
• Supermarkets and shopping centres
• Assembly lines
Can I use this wall box in extreme temperatures?
This wall box has a wide operating temperature range of -40°C to +80°C, so it's suitable for use in demanding environments.
Specificaties
Kenmerk | Waarde |
|---|---|
| External Height | 380 mm |
| External Width | 380 mm |
| External Depth | 217mm |
| Body Material | Stainless Steel |
| Transparent Door | No |
| IP Rating | IP66 |
| Chassis Plate | No |
| Door Lock Type | Screw |
| Gland Plate | No |
| Colour | Unpainted |
| Series | Stainless Steel Enclosures |
| External Mounting Type | Wall-Mounting Holes |
| Application | General Purpose |
| Special Features | Ingress protection, No gaps between lid/base, Optional individual sizes and versions from 25 off, Universal Industrial Enclosure |
| For Protection Of | EMC-endangered areas, Foodstuffs, Harsh or aggressive environments, Packaging Technology, Process engineering, Rail-transport technology |
| IK Rating | IK09 |
| Fixing Kit | No |
| Internal Mounting Type | Mounting Bar |
