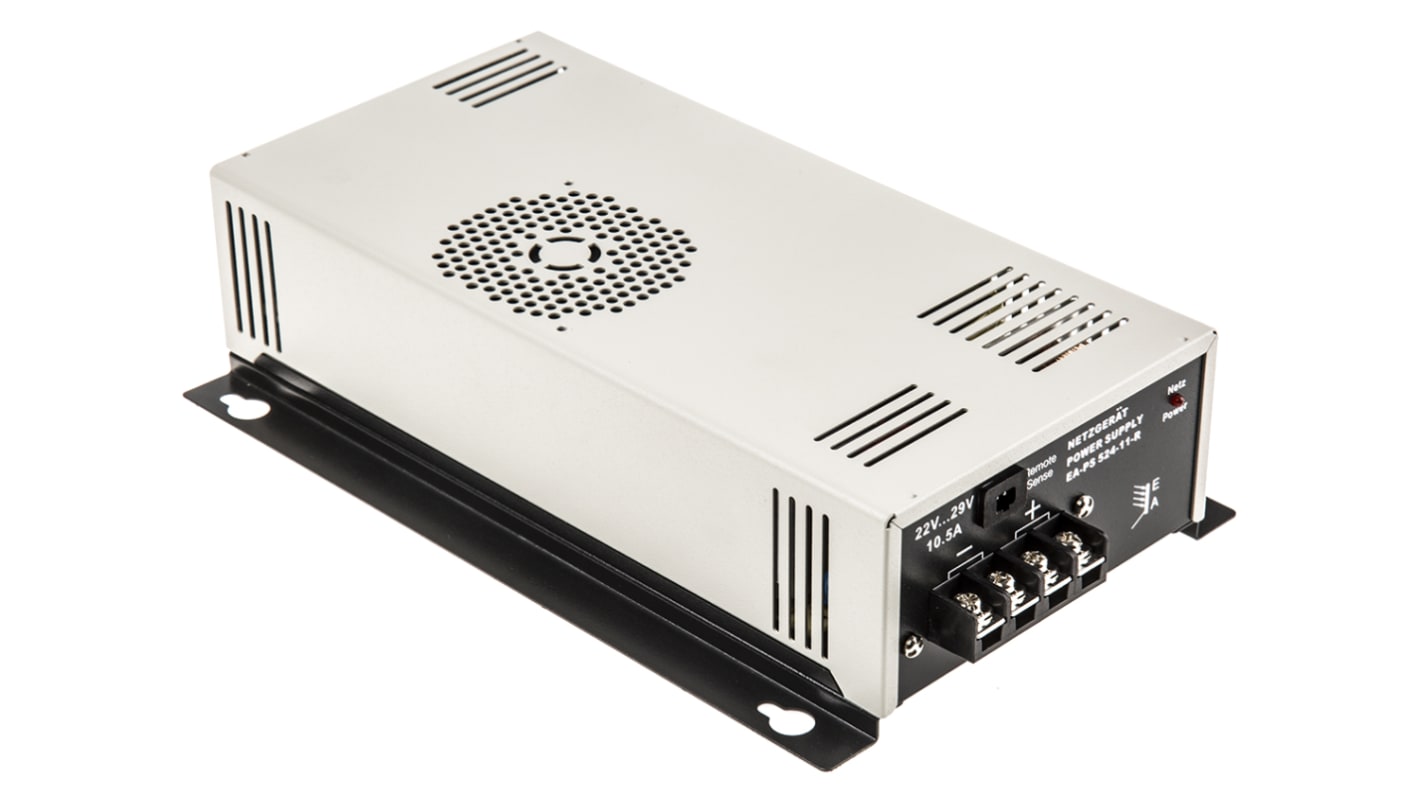

EA Elektro-Automatik EA-PS 500 Series Analogue Bench Power Supply, 22 → 29V, 10.5A, 1-Output, 300W
- RS-stocknr.:
- 538-9027
- Fabrikantnummer:
- EA-PS 524-11R
- Fabrikant:
- EA Elektro-Automatik
Momenteel niet beschikbaar
We weten niet of dit item nog op voorraad komt, RS is van plan dit binnenkort uit ons assortiment te halen.
- RS-stocknr.:
- 538-9027
- Fabrikantnummer:
- EA-PS 524-11R
- Fabrikant:
- EA Elektro-Automatik
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | EA Elektro-Automatik | |
| Series | EA-PS 500 | |
| Model Number | EA-PS 524-11R | |
| Number of Outputs | 1 | |
| Output Voltage | 22 → 29V | |
| Supply Voltage | 90 → 264V ac | |
| Output Current | 10.5A | |
| Power Rating | 300W | |
| Number of Displays | 0 | |
| Type | Analogue | |
| Bench Power Supply Type | Mini Power Supply | |
| Digital/Analogue | Analogue | |
| Output Connector | Screw Terminal | |
| Input Connector | IEC 320 | |
| Maximum Temperature | +40°C | |
| Minimum Temperature | 0°C | |
| Alles selecteren | ||
|---|---|---|
Merk EA Elektro-Automatik | ||
Series EA-PS 500 | ||
Model Number EA-PS 524-11R | ||
Number of Outputs 1 | ||
Output Voltage 22 → 29V | ||
Supply Voltage 90 → 264V ac | ||
Output Current 10.5A | ||
Power Rating 300W | ||
Number of Displays 0 | ||
Type Analogue | ||
Bench Power Supply Type Mini Power Supply | ||
Digital/Analogue Analogue | ||
Output Connector Screw Terminal | ||
Input Connector IEC 320 | ||
Maximum Temperature +40°C | ||
Minimum Temperature 0°C | ||
- Land van herkomst:
- CN
EA-PS 500 series
High performance despite very compact housing
Cycled switch controller with PFC
Table-top devices (... T) with 4 mm sockets
Wall-mounted devices (... R) with screw clamps
Output voltage adjustable up to +20 / -10% with one screwdriver
Remote detection (sense)
Dimensions (W x H x D): 110 x 58 x 226 mm
Cycled switch controller with PFC
Table-top devices (... T) with 4 mm sockets
Wall-mounted devices (... R) with screw clamps
Output voltage adjustable up to +20 / -10% with one screwdriver
Remote detection (sense)
Dimensions (W x H x D): 110 x 58 x 226 mm
Standards
EN 60950, EN55014 parts 1 & 2
