- RS-stocknr.:
- 217-7970
- Fabrikantnummer:
- QS3861QG
- Fabrikant:
- Renesas Electronics
Dit product is momenteel niet beschikbaar voor nabestelling.
We hebben dit product helaas niet op voorraad en het is op dit moment niet beschikbaar voor nabestelling.
Toegevoegd
Prijs Elk (in een pakket van 25)
€ 0,793
(excl. BTW)
€ 0,96
(incl. BTW)
Aantal stuks | Per stuk | Per pak* |
25 - 75 | € 0,793 | € 19,825 |
100 - 475 | € 0,648 | € 16,20 |
500 - 975 | € 0,513 | € 12,825 |
1000 - 2475 | € 0,41 | € 10,25 |
2500 + | € 0,37 | € 9,25 |
*prijsindicatie |
- RS-stocknr.:
- 217-7970
- Fabrikantnummer:
- QS3861QG
- Fabrikant:
- Renesas Electronics
Datasheets
Wetgeving en compliance
Productomschrijving

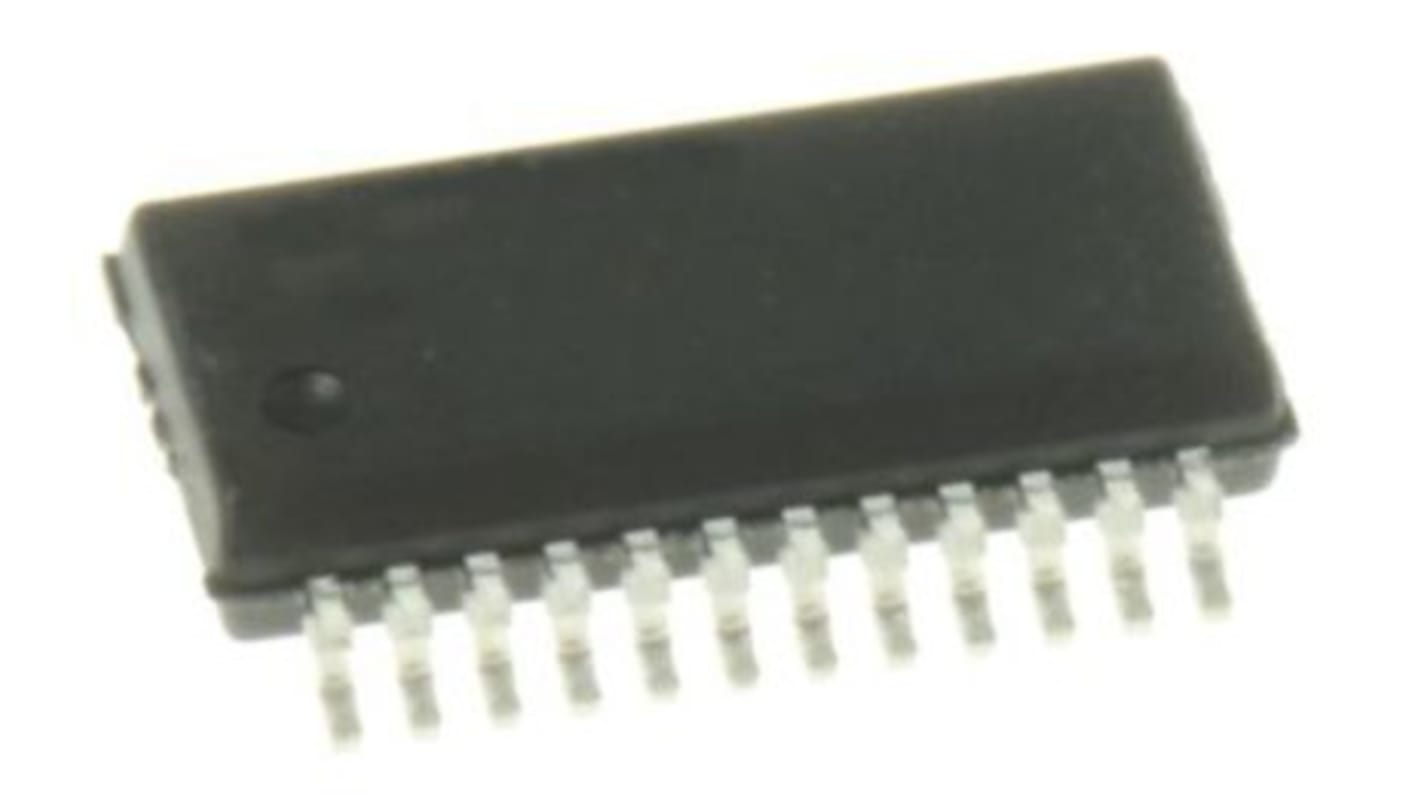

The Renesas Electronics QS3861 provides a set of ten high-speed CMOS TTL-compatible bus switches. The low ON resistance (5 ohm) of the QS3861 allows inputs to be connected without adding propagation delay and without generating additional ground bounce noise. The Bus Enable (BE) signal turns the switches on. The QS3861 operates at -40C to +85C.
Enhanced N channel FET with no inherent diode to Vcc
5 ohm bidirectional switches connect inputs to outputs
Zero propagation delay, zero ground bounce
Undershoot clamp diodes on all switch and control inputs
Available in 24 pin QSOP and TSSOP packages
5 ohm bidirectional switches connect inputs to outputs
Zero propagation delay, zero ground bounce
Undershoot clamp diodes on all switch and control inputs
Available in 24 pin QSOP and TSSOP packages
Specificaties
Kenmerk | Waarde |
---|---|
Logic Family | CMOS |
Configuration | 1 x 1:1 |
Number of Elements per Chip | 24 |
Number of Inputs per Chip | 21 |
Number of Outputs per Chip | 20 |
Package Type | QSOP |
Pin Count | 24 |
