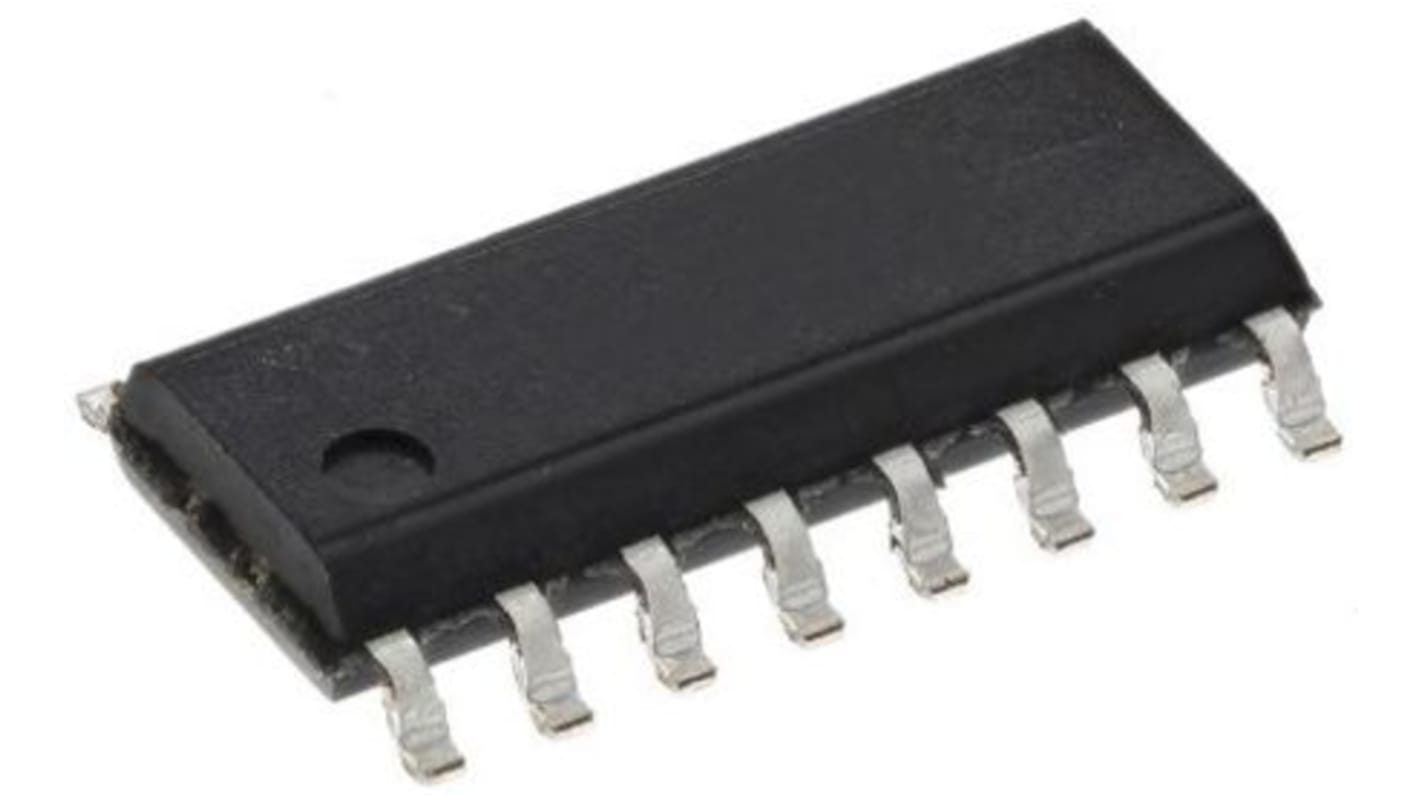

Renesas Electronics QS3VH125QG, Bus Switch, 4 x 1:1, 16-Pin QSOP
- RS-stocknr.:
- 217-7974
- Fabrikantnummer:
- QS3VH125QG
- Fabrikant:
- Renesas Electronics
Dit product is momenteel niet beschikbaar voor nabestelling.
We hebben dit product helaas niet op voorraad en het is op dit moment niet beschikbaar voor nabestelling.
Toegevoegd
Prijs Elk (in een pakket van 25)
€ 0,624
(excl. BTW)
€ 0,755
(incl. BTW)
| Aantal stuks | Per stuk | Per pak* |
| 25 - 25 | € 0,624 | € 15,60 |
| 50 - 75 | € 0,607 | € 15,175 |
| 100 - 475 | € 0,591 | € 14,775 |
| 500 - 975 | € 0,576 | € 14,40 |
| 1000 + | € 0,562 | € 14,05 |
| *prijsindicatie | ||
- RS-stocknr.:
- 217-7974
- Fabrikantnummer:
- QS3VH125QG
- Fabrikant:
- Renesas Electronics
Datasheets
Wetgeving en compliance
Productomschrijving
The Renesas Electronics QS3VH125 is a high bandwidth, Quad bus switch. The QS3VH125 has very low ON resistance, resulting in under 250ps propagation delay through the switch. The switches can be turned ON under the control of individual LVTTL-compatible active low Output Enable signals for bidirectional data flow with no added delay or ground bounce. The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the QS3VH125 ideal for high performance communications applications. The QS3VH125 operates from -40C to +85C.
N channel FET switches with no parasitic diode to VCC – Isolation under power-off conditions – No DC path to VCC or GND – 5V tolerant in OFF and ON state
5V tolerant I/Os
Low RON - 4 ohm typical
Flat RON characteristics over operating range
Rail-to-rail switching 0 - 5V
5V tolerant I/Os
Low RON - 4 ohm typical
Flat RON characteristics over operating range
Rail-to-rail switching 0 - 5V
Specificaties
Kenmerk | Waarde |
|---|---|
| Logic Family | LVTTL |
| Configuration | 4 x 1:1 |
| Number of Elements per Chip | 8 |
| Number of Inputs per Chip | 12 |
| Number of Outputs per Chip | 8 |
| Package Type | QSOP |
| Pin Count | 16 |
