RS PRO ICMA5 Clamp Meter, Max Current 200A ac CAT III 1000 V, CAT IV 600 V With RS Calibration

Datasheets
Wetgeving en compliance
Conform
Land van herkomst: TW
Productomschrijving

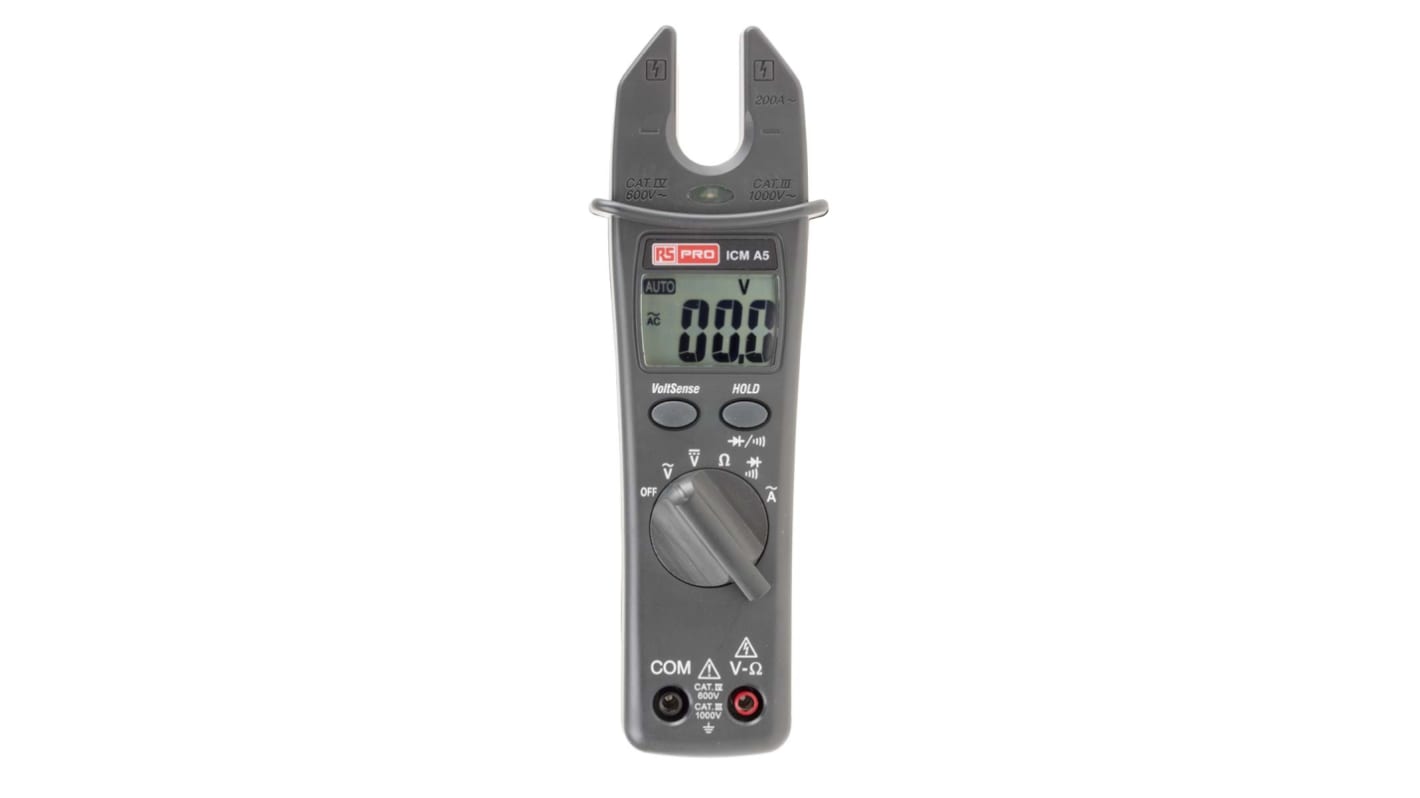

RS PRO ICMA5 Open Jaw Clampmeter

From the trusted RS PRO brand, the ICMA5 Slimline clamp meter is used to check voltage, resistance, continuity and current. The integral non-contact ac voltage detector enables fast identification of the presence of mains voltages. The open jaw current clamp enables safe, non-intrusive measurement of ac currents up to 200 A.

Battery-powered for maximum portability, this multifunction current clamp meter is ideal for on-the-go applications in almost any environment.

Features and Benefits

• 2000 Counts large LCD display
• Open jaw technology - 16 mm dia. conductor size
• 200 A ac measurement capability
• 750 V ac / 1000 V dc measurement range
• Integral non-contact AC voltage detector with visual & audible indication
• 20 MΩ resistance range
• Continuity and Diode Test
• Display hold
• Auto-power off
• Conforms to EN61010-1 (safety rating) CAT IV 600 V, CAT III 1000 V

Applications

This current clamp meter is designed for current measurement in electrical testing, and combines a digital multimeter with a clamping current sensor. The nature of the clamp means that it can fit around a wire at any point to sense AC current, voltage and continuity. This has the advantage of allowing electricians to take a reading from a conductor without touching it, which is both more convenient and safer than other methods. As this is an open clamp clampmeter, it is ideal for quicker readings

This current clamp is used for measuring high levels of current in service and maintenance applications. It can also be used when installing electrical equipment.

Why RS PRO?

RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.

When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.

Supplied with

PP3 9V alkaline battery, test leads and instruction manual

Specificaties
Kenmerk Waarde
Absolute Maximum AC Current Measurement 200A ac
Absolute Maximum AC Voltage Measurement 750V ac
Absolute Maximum Resistance Measurement 2000Ω
Model Number ICMA5
Calibrated RSCAL
Clamp Meter Type Current, Voltage
Best AC Current Accuracy ±3% +3 digits
Best AC Voltage Accuracy ±1.5% + 3 Digits
Best DC Voltage Accuracy ±1% + 2 Digits
Maximum Conductor Size 16 (Dia.)mm
Battery Life 250 h
Dimensions 66 x 46 x 198mm
Battery Type IEC 6F22, NEDA 1604, 9V
Safety Category Voltage 600 V, 1000 V
Width 46mm
Height 198mm
Minimum Operating Temperature -20°C
Jaw Capacity Busbars 16 (Dia.)mm
Maximum Operating Temperature +50°C
Length 66mm
Power Source Battery
Best Resistance Measurement Accuracy ±1% + 2 Digits
Safety Category CAT III 1000 V, CAT IV 600 V
Functions Measured AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Resistance
Safety Category Level CAT III, CAT IV
Weight 280g
20 op voorraad - levertijd is 1 werkdag(en) plus 1 dag extra in verband met gekalibreerd artikel. Gekalibreerde producten kunnen niet worden geretourneerd.
Prijs Each
144,73
(excl. BTW)
175,12
(incl. BTW)
Aantal stuks
Per stuk
1 +
€ 144,73
