RS PRO ILCM06R Clamp Meter, Max Current 100A ac CAT III 300 V With UKAS Calibration
- RS-stocknr.:
- 136-7825
- Fabrikant:
- RS PRO
Tijdelijk niet op voorraad – voor levertijd of een alternatief product neem contact op via Live Chat of zoek een vergelijkbaar product op de website.
Toegevoegd
Prijs Per stuk
€ 429,11
(excl. BTW)
€ 519,22
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 + | € 429,11 |
- RS-stocknr.:
- 136-7825
- Fabrikant:
- RS PRO
Wetgeving en compliance
- Land van herkomst:
- TW
Productomschrijving

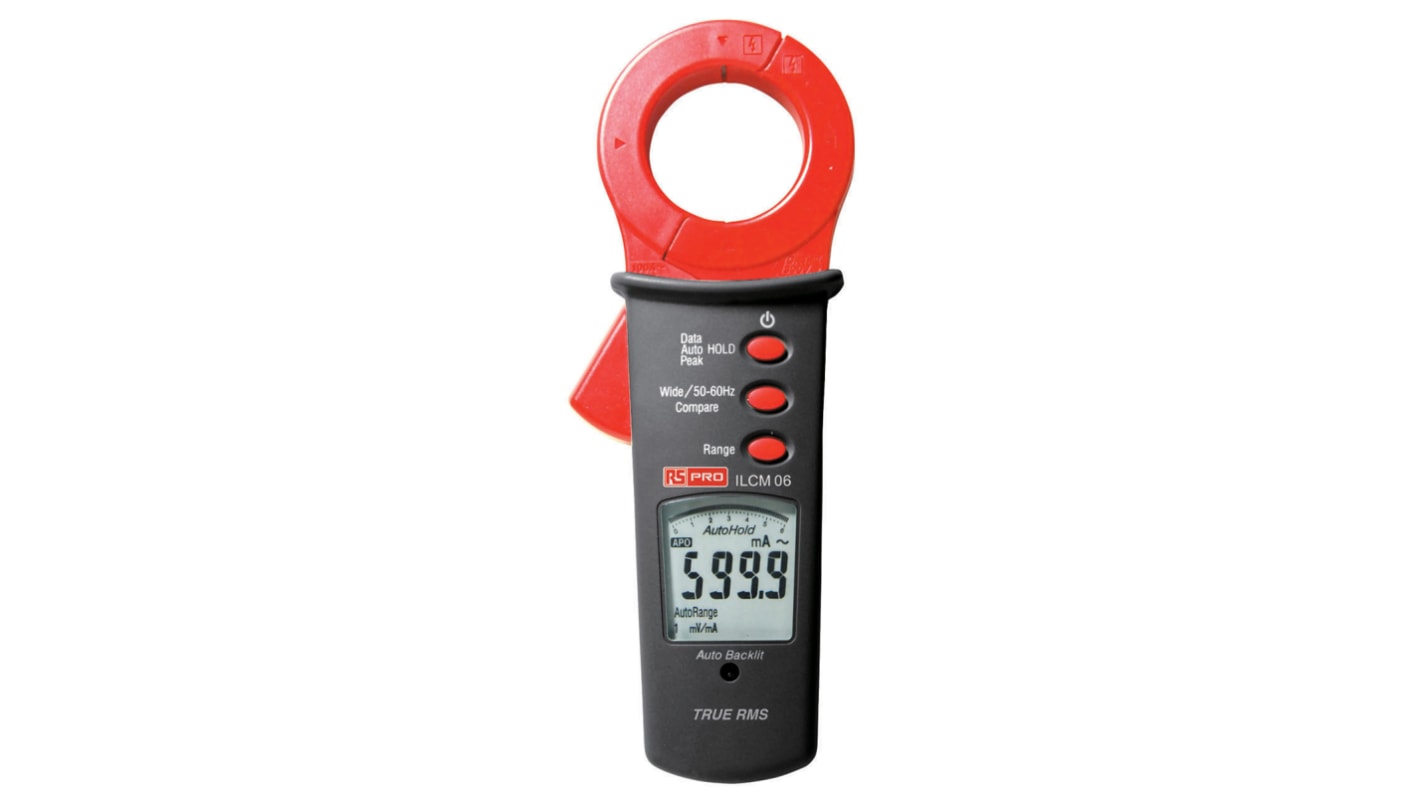

RS Pro Leakage Current Clamp Meter RMS, ILCM 06R
RS Pro ILCM 06R is a great value leakage current clamp designed for safe, non-intrusive AC current measurement up to 60 A. It offers five ranges, with high resolution 10 μA on the 40 mA range. Features include fast bar graph display of up to 30 times/second and large jaw clamp.
Features and Benefits
• True RMS
• 6000 Count large-scale digital display
• Analog bar graph
• AC 100.0 Amps capability
• AC 0.001 mA Resolution
• Auto Ranging
• Auto Hold
• Data Hold
• Peak Hold
• Comparator
• Low Pass Filter with high stability
• Analog Output
• Auto Power Off (Disable)
• Up to 40 mm dia. (750MCM) Conductor Size
• 4 feet Drop Proof
• Deluxe Carrying Case
• Hand Guard and Stream Line Designed
• Convenient Battery Door
• CAT III 300 V Safety Standard
Supplied with
Clamp Meter, carrying case, alkaline battery (installed) and user manual
RS PRO Leakage Current Clamp Meter
The RS PRO ILCM 06R leakage current clamp meter is a great value leakage current clamp designed for safe, non-intrusive AC measurement up to 100A AC. It offers five ranges, with high-resolution 10μA on the 40mA range. The features include fast bar graph display of up to 30 times/second and a large jaw clamp. It includes carrying case, alkaline battery (installed), and a user’s manual.
Features and Benefits
True RMS
6000 count large-scale digital display
Analog bar graph
AC 0.001 mA resolution
Auto ranging
Auto hold
Data hold
Peak hold
Comparator
Low pass filter with high stability
Analogue output
Auto power off (disable)
Up to 40 mm dia. (750MCM) conductor size
4 feet drop proof
Deluxe carrying case
Hand guard and Streamline designed
Convenient battery door
Operating temperature ranges between 0°C and 50°C
6000 count large-scale digital display
Analog bar graph
AC 0.001 mA resolution
Auto ranging
Auto hold
Data hold
Peak hold
Comparator
Low pass filter with high stability
Analogue output
Auto power off (disable)
Up to 40 mm dia. (750MCM) conductor size
4 feet drop proof
Deluxe carrying case
Hand guard and Streamline designed
Convenient battery door
Operating temperature ranges between 0°C and 50°C
Applications
Petrochemical
Oil and gas
Food and beverage
Pharmaceutical
Oil and gas
Food and beverage
Pharmaceutical
Certifications
IEC 61010-1
CAT III 300V safety rated
CAT III 300V safety rated
Specificaties
Kenmerk | Waarde |
|---|---|
| Absolute Maximum AC Current Measurement | 100A ac |
| Model Number | ILCM06R |
| Calibrated | UKAS |
| AC Current Measurement Resolution | 0.001mA |
| Clamp Meter Type | Leakage Clamp Meter |
| Best AC Current Accuracy | ±1 % 8 Digits |
| Functions Measured | AC Current |
| True RMS | Yes |
| Safety Category | CAT III 300 V |
| Maximum Operating Temperature | +50°C |
| Dimensions | 78 x 42 x 203mm |
| Power Source | Battery |
| Minimum Operating Temperature | 0°C |
| Battery Type | 1.5 V AAA, Alkaline |
| Height | 203mm |
| Safety Category Level | CAT III |
| Weight | 300 (with Battery)g |
| Battery Life | 60 h |
| Maximum Conductor Size | 40 (Dia.)mm |
| Length | 78mm |
| Width | 42mm |
| Safety Category Voltage | 300V |
