- RS-stocknr.:
- 765-7038
- Fabrikantnummer:
- FLUKE 325
- Fabrikant:
- Fluke
98 op voorraad - levertijd is 3 à 5 werkdagen . Gekalibreerde producten kunnen niet worden geretourneerd.
Toegevoegd
Prijs Per stuk
€ 389,00
(excl. BTW)
€ 470,69
(incl. BTW)
Aantal stuks | Per stuk |
1 + | € 389,00 |
- RS-stocknr.:
- 765-7038
- Fabrikantnummer:
- FLUKE 325
- Fabrikant:
- Fluke
Wetgeving en compliance
N.v.t.
- Land van herkomst:
- CN
Productomschrijving

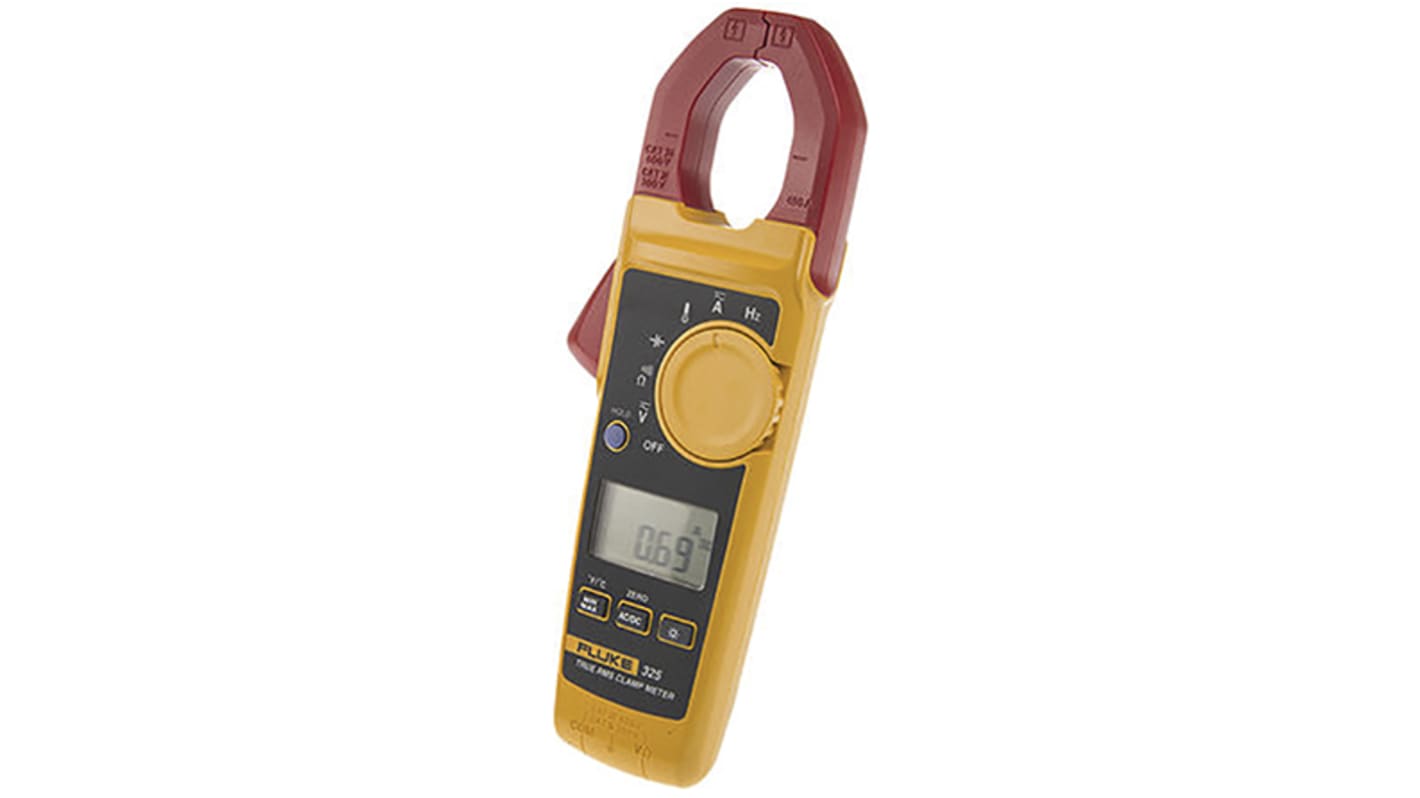

FLUKE Clamp Meter, Backlit Display, 5 to 500Hz Frequency Measurement Range - 320 Series - FLUKE 325
Get a good grasp of the power levels in your wiring with this clamp meter from FLUKE. It has a hinged jaw, so you can simply close it around your cable to take its energy measurement. The device detects multiple features, from resistance and frequency to continuity and capacitance, not forgetting AC/DC voltage and current. This makes it a versatile option to keep in your toolbox. You can also view minimum and maximum values to keep up with the highs and lows of your circuit.
Features & Benefits
• Backlit display ensures measurements are visible in low-light settings
• Data hold lets you conveniently capture results
• Frequency measurement range between 5 and 500Hz for wide compatibility
• Data hold lets you conveniently capture results
• Frequency measurement range between 5 and 500Hz for wide compatibility
Applications
• HVAC systems
• Assembly plants
• Repair workshops
• Security systems
• Assembly plants
• Repair workshops
• Security systems
What's the voltage and current measurement range of this meter?
This meter has a wide voltage measurement range between 0 and 600V AC and a current measurement range between 40 and 400A AC/DC to sense low and high power levels.
How accurate is the current measurement of this meter?
With an accuracy rating of 2% at ±5 digits for AC and DC current, this device works with a low risk of errors.
Buy a Fluke, Get one Free is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends €150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.com/en/freefluke
A proof of purchase in the form of a receipt or invoice is required.
Note: Offer not available in South Africa
Between March 1st, 2024 and August 31st, 2024, the customer spends €150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.com/en/freefluke
A proof of purchase in the form of a receipt or invoice is required.
Note: Offer not available in South Africa
Supplied with
Fluke 325 True-RMS Clamp Meter
TL75 Test Leads
Type K Thermocouple
Two AAA Batteries (Installed)
Soft Case
TL75 Test Leads
Type K Thermocouple
Two AAA Batteries (Installed)
Soft Case
Specificaties
Kenmerk | Waarde |
---|---|
Absolute Maximum AC Current Measurement | 400A ac |
Absolute Maximum DC Current Measurement | 400A dc |
Absolute Maximum AC Voltage Measurement | 600V ac |
Absolute Maximum DC Voltage Measurement | 600V dc |
Absolute Maximum Resistance Measurement | 40kΩ |
Model Number | 325 |
Calibrated | RSCAL |
AC Current Measurement Resolution | 10mA |
DC Current Measurement Resolution | 10mA |
Best DC Current Accuracy | ±(2% rdg +5 Digits) |
Clamp Meter Type | AC/DC Clamp Meter |
Best AC Current Accuracy | ±(2% rdg +5 Digits) |
Best AC Voltage Accuracy | ±(1.5% rdg +5 Digits) |
Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Resistance, Temperature |
True RMS | Yes |
Best DC Voltage Accuracy | ±(1% rdg +5 Digits) |
Jaw Capacity Busbars | 30mm |
AC Voltage Measurement Range | 600 V |
Maximum Conductor Size | 30mm |
Width | 75mm |
DC Current Measurement Range | 40 A, 400 A |
Dimensions | 207 x 75 x 34mm |
Safety Category Voltage | 300 V, 600V |
Minimum Operating Temperature | -10°C |
Height | 34mm |
AC Voltage Measurement Resolution | 100mV |
AC Current Measurement Range | 40 A, 400 A |
Safety Category Level | CAT III, CAT IV |
Temperature Measurement Resolution | 0.1°C |
Absolute Maximum Temperature Measurement | +400°C |
Weight | 283g |
Maximum Operating Temperature | +50°C |
DC Voltage Measurement Resolution | 100mV |
Resistance Measurement Resolution | 100mΩ |
Battery Type | AAA |
Length | 207mm |
Power Source | Battery |
Safety Category | CAT III 600 V, CAT IV 300V |
Best Resistance Measurement Accuracy | 1.0% ± 5 Digits |
Display Type | LCD |
