Grasslin Taxxo 9612 Wrench, 7 Digit LCD 24V dc
- RS-stocknr.:
- 286-840
- Fabrikantnummer:
- 05.25.0006.1
- Fabrikant:
- Grasslin
Niet beschikbaar
RS heeft dit product niet meer op voorraad.
- RS-stocknr.:
- 286-840
- Fabrikantnummer:
- 05.25.0006.1
- Fabrikant:
- Grasslin
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Grasslin | |
| Product Type | Counter | |
| Display Type | LCD | |
| Function | Wrench | |
| Connection Type | Screw | |
| Reset Method | No Reset | |
| Number of Digits | 7 | |
| Mount Type | Built-In | |
| Maximum Supply Voltage | 24V dc | |
| Count Direction | Forward | |
| Maximum Operating Temperature | 70°C | |
| Depth | 50mm | |
| Standards/Approvals | EN 60-335 | |
| Cutout Height | 45.2mm | |
| Cutout Width | 45.2mm | |
| Series | Taxxo 9612 | |
| Alles selecteren | ||
|---|---|---|
Merk Grasslin | ||
Product Type Counter | ||
Display Type LCD | ||
Function Wrench | ||
Connection Type Screw | ||
Reset Method No Reset | ||
Number of Digits 7 | ||
Mount Type Built-In | ||
Maximum Supply Voltage 24V dc | ||
Count Direction Forward | ||
Maximum Operating Temperature 70°C | ||
Depth 50mm | ||
Standards/Approvals EN 60-335 | ||
Cutout Height 45.2mm | ||
Cutout Width 45.2mm | ||
Series Taxxo 9612 | ||
- Land van herkomst:
- DE

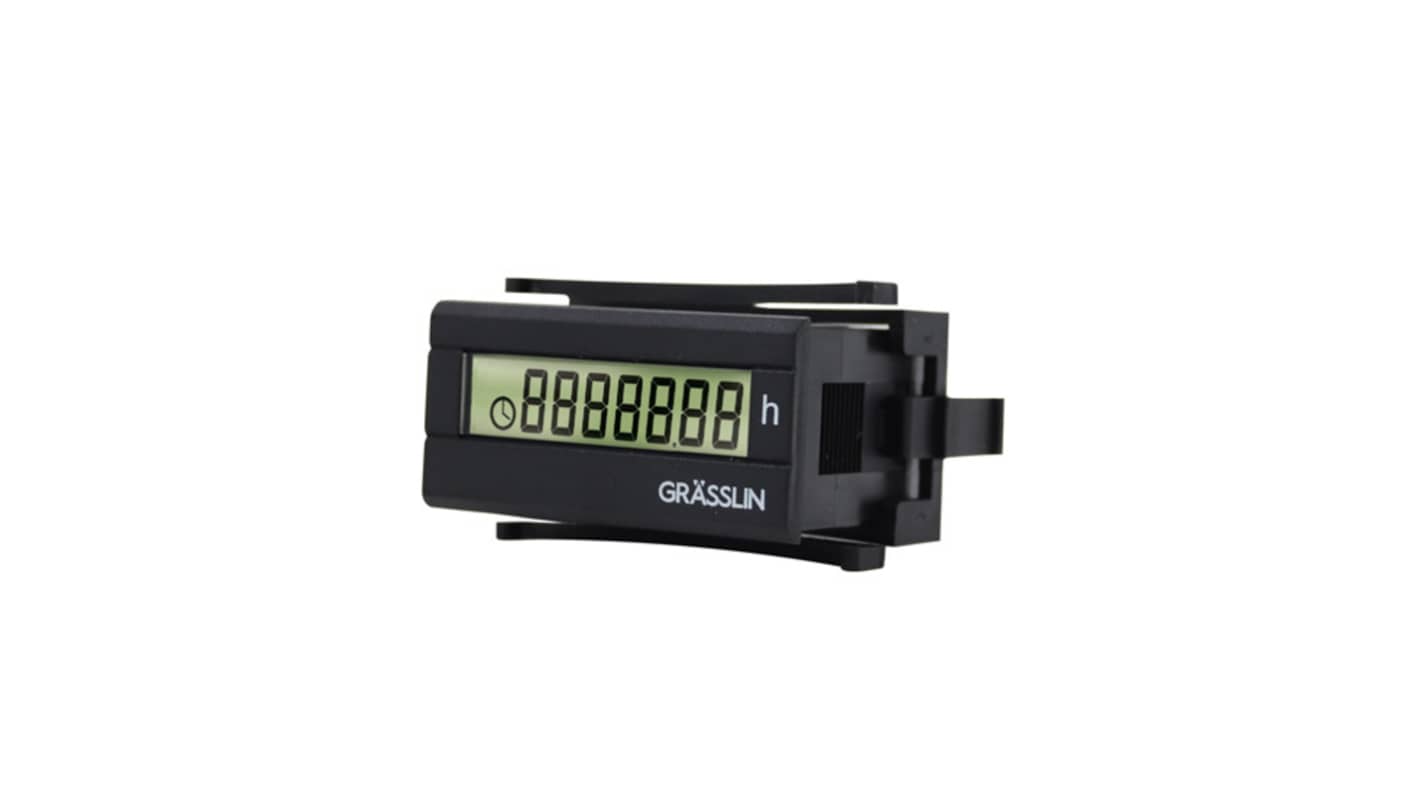

The Grasslin Hour Counter is digital operated. It features EEPROM memory to ensure reliable elapsed time counting, even during a loss of power. It is designed for control panel installation and has a 7-digit high-contrast LCD display. The device includes terminal screws and an on-screen progress display.
Tension clamp brackets for walls up to 5mm thick
Quartz controlled version
