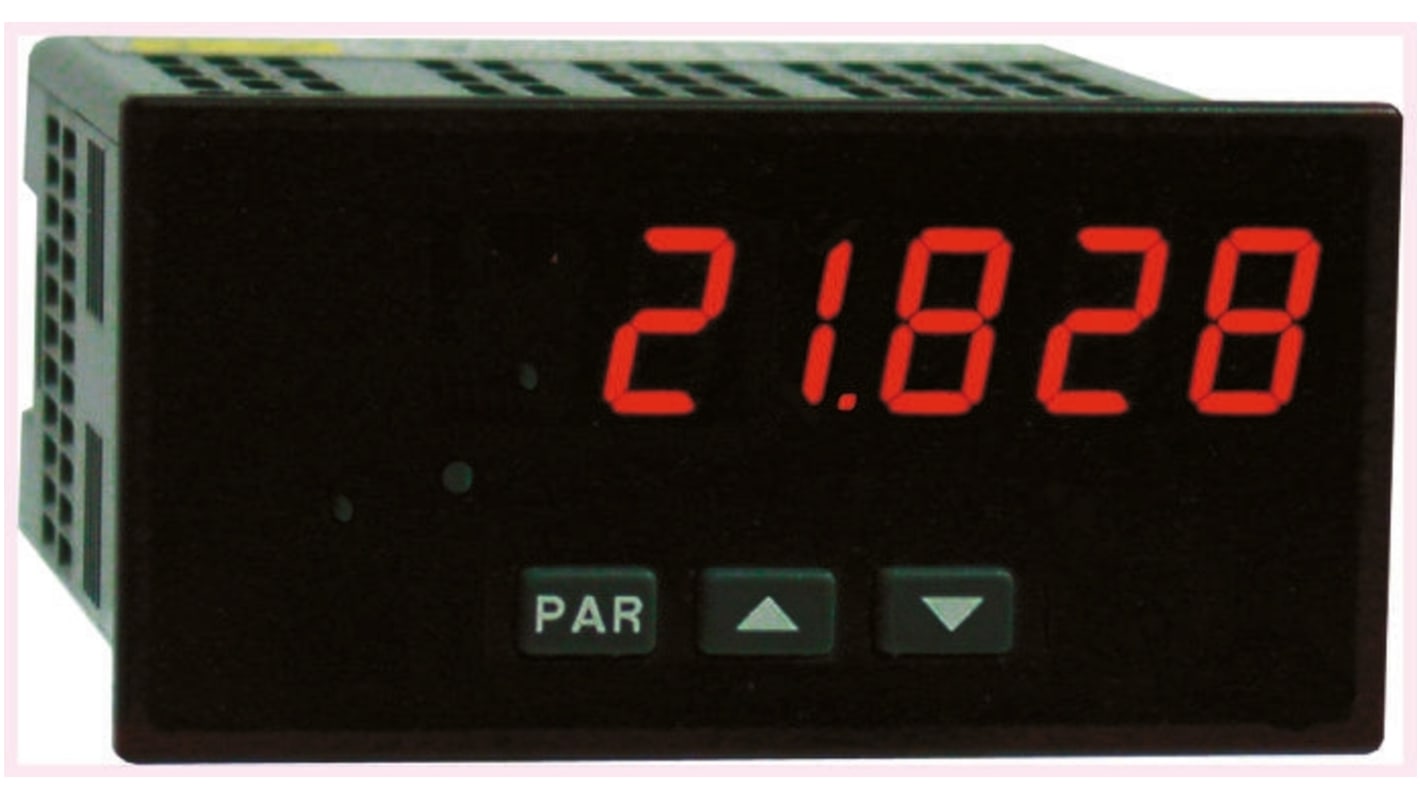

Red Lion 6 Digit, LED, Digital Counter, 35kHz, 85 → 250 V ac

  • RS-stocknr. 466-1249
  • Fabrikantnummer PAXLR000
  • Fabrikant Red Lion
Datasheets
Wetgeving en compliance
N.v.t.
Land van herkomst: US
Productomschrijving

PAX LITE - Tachometer, LED, 14 mm

6-digit tachometer with LED display
Leading zero suppression provides very good readability
Input max. 35 kHz, can be adapted to virtually all sensors
High precision through continuous period measurement
Decimal point can be freely configured
Easy programming using keyboard
With sensor power 12 Vdc

Approvals

CE

Supplied with

Device, fixing frame, seal, operating instructions

Specificaties
Kenmerk Waarde
Supply Voltage 85 → 250 V ac
Count Mode Seconds
Display Type LED
Input Type Voltage
Number of Digits 6
Mounting Type Panel Mount
Count Direction Bi-Directional
Digit Height 14 mm
Maximum Count Frequency 35kHz
Display Range 0.00001 to 9.9999
Measurement Range 0.00001 → 9.9999
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
3 op voorraad - levertijd is 2 werkdag(en).
Prijs Each
182,77
(excl. BTW)
221,15
(incl. BTW)
Aantal stuks
Per stuk
1 +
€ 182,77
