Ruland, 33.3 mm OD 12 mm, 42.9 mm Length Coupler 10 mm

RS-stocknr.:: 174-7286
Fabrikantnummer:: MBC33-12-10-A
Fabrikant:: Ruland

Ruland, 33.3 mm OD 12 mm, 42.9 mm Length Coupler 10 mm

Bulkkorting beschikbaar

Subtotaal (1 eenheid)*

€ 141,58

(excl. BTW)

€ 171,31

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

2 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 - 4	€ 141,58
5 - 9	€ 137,21
10 +	€ 132,95

*prijsindicatie

RS-stocknr.:: 174-7286
Fabrikantnummer:: MBC33-12-10-A
Fabrikant:: Ruland

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Ruland
	Product Type	Coupler
	Outside Diameter	33.3 mm
	Length	42.9mm
	Maximum Speed	10000rpm
	Torque Rating	13.6Nm
	Moment of Inertia	2.751 x 10-6 kg/m²
	Misalignment - Angular	1.5°
	Misalignment - Parallel	0.15mm
	Hub Material	Aluminium
	Style	Clamp
	Misalignment - Axial	0.4mm
	Bellows Material	Stainless Steel
	Bore Size A	12mm
	Bore Size B	10mm
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	93°C
	Standards/Approvals	RoHS3, REACH, DIN 912 12.9
	Screw Size	M3

	Alles selecteren
	Merk Ruland
	Product Type Coupler
	Outside Diameter 33.3 mm
	Length 42.9mm
	Maximum Speed 10000rpm
	Torque Rating 13.6Nm
	Moment of Inertia 2.751 x 10-6 kg/m²
	Misalignment - Angular 1.5°
	Misalignment - Parallel 0.15mm
	Hub Material Aluminium
	Style Clamp
	Misalignment - Axial 0.4mm
	Bellows Material Stainless Steel
	Bore Size A 12mm
	Bore Size B 10mm
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 93°C
	Standards/Approvals RoHS3, REACH, DIN 912 12.9
	Screw Size M3

Ruland Coupling

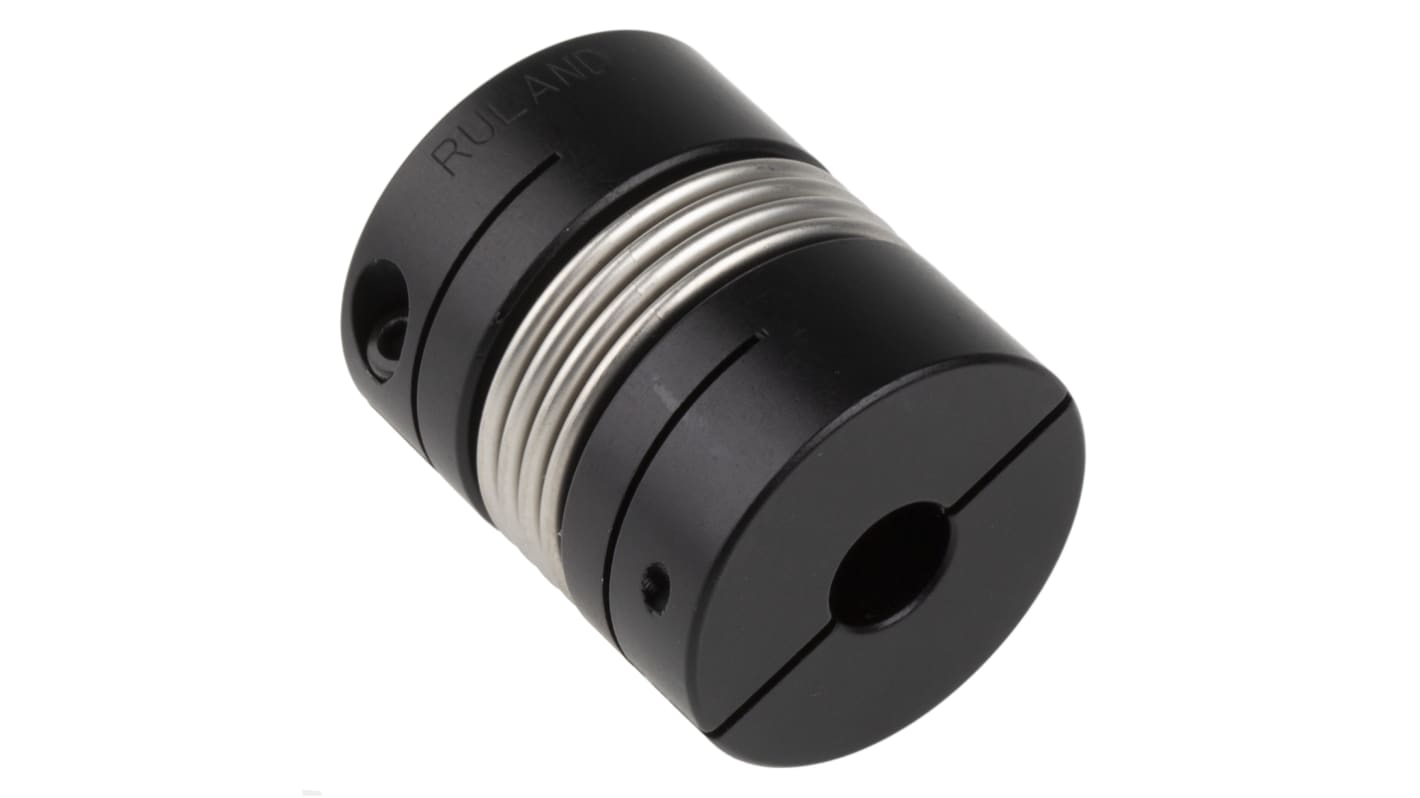

The Ruland bellows coupling has a 33mm OD, 42.9mm length and 12mm x 10mm bore with clamp fastening. This is readily accommodated by any combination of axial motion, angular and parallel misalignment. It is comprised of two anodized aluminium hubs and a stainless steel bellows. This bellow is able to flex while remaining rigid under torsional loads. Its balanced design reduces vibrations at high speed.

Features and Benefits

• Zero backlash

• Black-oiled alloy steel fasteners for strength and corrosion resistance

• Precision bellows coupling with excellent kinematic properties

• Maximum speed of 10,000rpm

• Hardware is metric and tested beyond DIN standard for high torque capabilities

• Set screw material is alloy steel with black oxide finish

• Service temperature range from -40°C and 93°C

• Low inertia coupling

• Lightweight

Applications

• Stepper and servo drives

• Encoders

• General purpose light-duty power transmission

Certifications

• REACH certification

• Conflict Minerals compliant

• DIN 912 12.9

• ISO9001:2015
