- RS-stocknr.:
- 245-5733
- Fabrikantnummer:
- 19-14-10-RS
- Fabrikant:
- Southco
Bekijk alle Door Latches
88 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
187 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
Prijs Each
€ 18,72
(excl. BTW)
€ 22,65
(incl. BTW)
Aantal stuks | Per stuk |
1 - 4 | € 18,72 |
5 - 9 | € 17,78 |
10 - 29 | € 16,83 |
30 + | € 15,72 |
- RS-stocknr.:
- 245-5733
- Fabrikantnummer:
- 19-14-10-RS
- Fabrikant:
- Southco
Datasheets
Wetgeving en compliance
N.v.t.
Productomschrijving

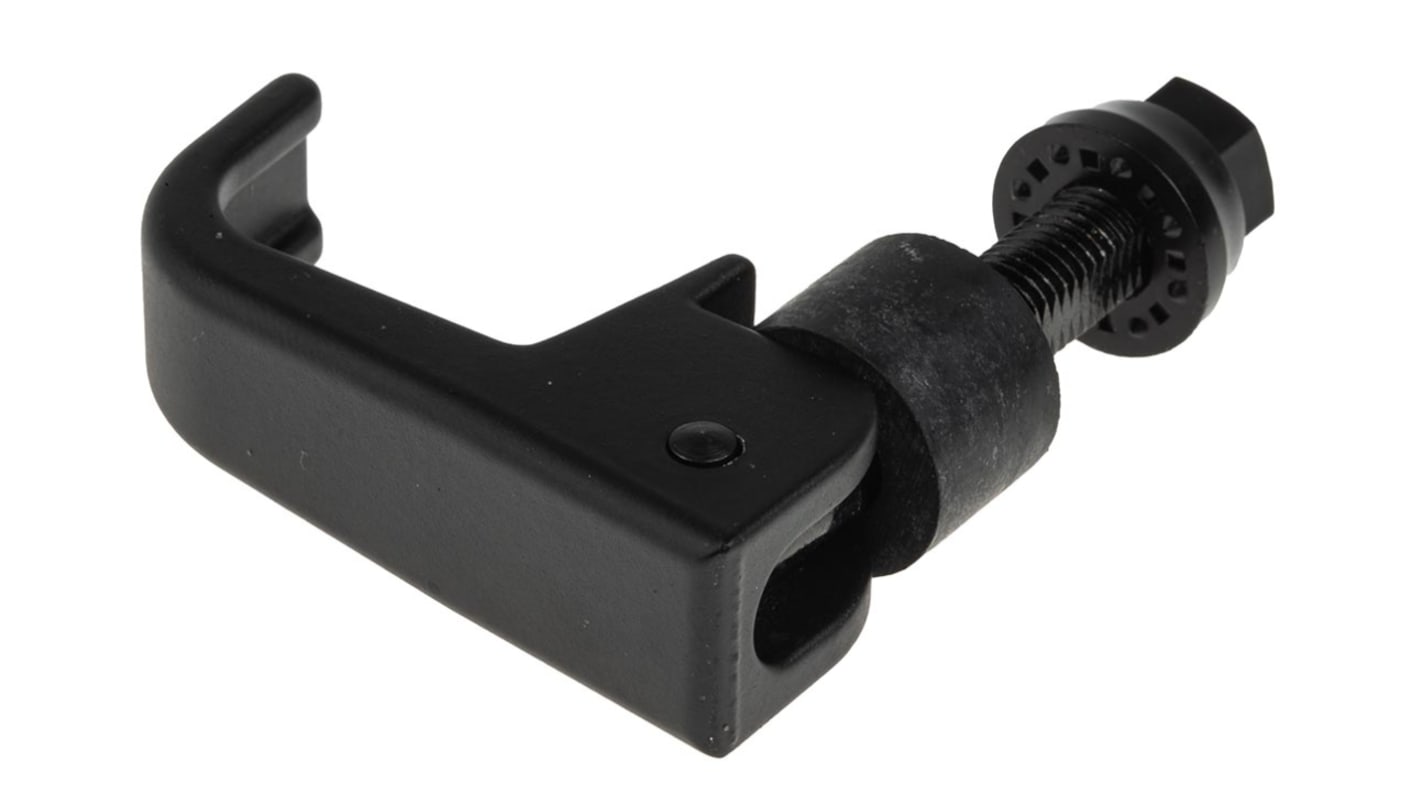

Heavy Duty Swell Latch
Able to latch in various frame thicknesses
Accommodates misalignment between the door and frame (max. door thickness is 6.4mm)
Suitable for use with glass, metal or plastic
Ideal for blind applications and is vibration resistant
Die cast construction
Accommodates misalignment between the door and frame (max. door thickness is 6.4mm)
Suitable for use with glass, metal or plastic
Ideal for blind applications and is vibration resistant
Die cast construction




Specificaties
Kenmerk | Waarde |
---|---|
Latch Type | Swell Latch |
Operating Tension | 222N |
Dimensions | 57 x 19 x 96.6mm |
Depth | 97 mm |
Length | 57mm |
Width | 19mm |
