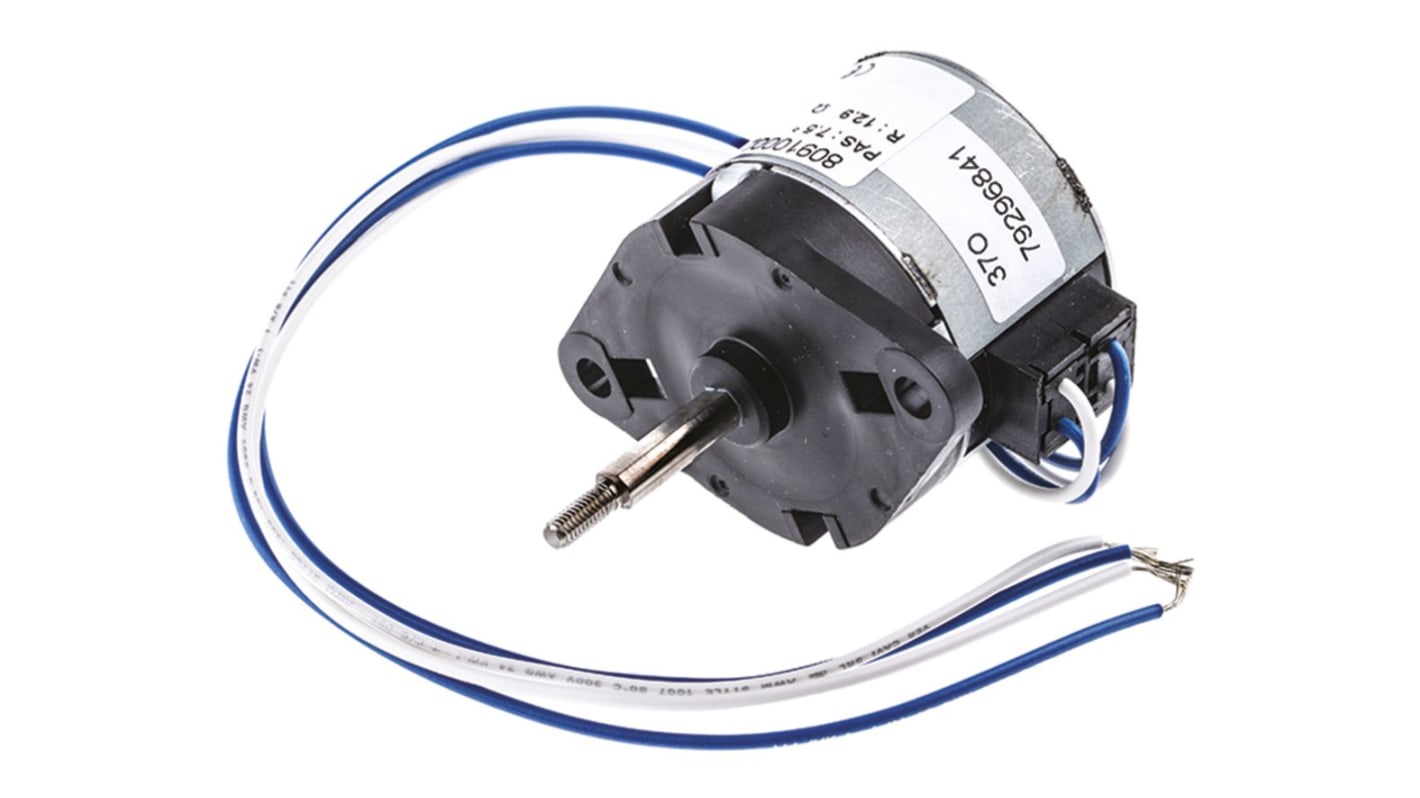

Crouzet 10 mm, 58N 5.6 V 3.33mm/s
- RS-stocknr.:
- 389-697
- Fabrikantnummer:
- 80910002
- Fabrikant:
- Crouzet
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 68,46
(excl. BTW)
€ 82,84
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 80,00
Laatste voorraad RS
- Laatste 837 stuk(s), klaar voor verzending vanaf een andere locatie
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 68,46 |
| 5 - 9 | € 65,03 |
| 10 - 24 | € 61,60 |
| 25 - 49 | € 58,21 |
| 50 + | € 54,77 |
*prijsindicatie
- RS-stocknr.:
- 389-697
- Fabrikantnummer:
- 80910002
- Fabrikant:
- Crouzet
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Crouzet | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 10mm | |
| Maximum Load | 58N | |
| Maximum Speed | 3.33mm/s | |
| Voltage | 5.6 V | |
| Series | 80 910 0 | |
| Motor Technology | Stepper Motor | |
| Maximum Force | 45N | |
| IP Rating | IP40 | |
| Piston Rod Thread | M3 | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 75°C | |
| Weight | 90g | |
| Standards/Approvals | EN 55 014, EN 60 034 / CEI 529, EN 55 022, EN 60 335-1 CEI 85 | |
| Alles selecteren | ||
|---|---|---|
Merk Crouzet | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 10mm | ||
Maximum Load 58N | ||
Maximum Speed 3.33mm/s | ||
Voltage 5.6 V | ||
Series 80 910 0 | ||
Motor Technology Stepper Motor | ||
Maximum Force 45N | ||
IP Rating IP40 | ||
Piston Rod Thread M3 | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 75°C | ||
Weight 90g | ||
Standards/Approvals EN 55 014, EN 60 034 / CEI 529, EN 55 022, EN 60 335-1 CEI 85 | ||
- Land van herkomst:
- FR
Linear Movement Actuators
A range of stepper or synchronous motors offering linear movement without rotation of the output shaft.
Stepper Motor
Both 4 phase - Unipolar and 2 phase - Bipolar operated motors.
Synchronous Motor
Constant speed 3.33mm/s at 240Vac, 50Hz
Wire Length 250mm +/-10mm
Note
The Synchronous Motor (stock no. 494-7256) requires the use of capacitor, typical stock no. 494-9858.
