Festo, 200mm, 24V dc, 24kg, 210mm/s, 8118274
- RS-stocknr.:
- 216-6331
- Fabrikantnummer:
- EPCS-BS-32-200-8P-A-ST-M-H1-PLK-AA
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 906,76
(excl. BTW)
€ 1.097,18
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Tijdelijk niet op voorraad
- Verzending vanaf 09 februari 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 906,76 |
*prijsindicatie
- RS-stocknr.:
- 216-6331
- Fabrikantnummer:
- EPCS-BS-32-200-8P-A-ST-M-H1-PLK-AA
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Maximum Stroke Length | 200mm | |
| Maximum Load | 24kg | |
| Input Voltage | 24V dc | |
| Series | EPCS-BS | |
| Maximum Speed No Load | 210mm/s | |
| Maximum Force Lifting | 150N | |
| Motor Technology | Stepper Motor | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Model Number | 8118274 | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Maximum Stroke Length 200mm | ||
Maximum Load 24kg | ||
Input Voltage 24V dc | ||
Series EPCS-BS | ||
Maximum Speed No Load 210mm/s | ||
Maximum Force Lifting 150N | ||
Motor Technology Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Model Number 8118274 | ||
- Land van herkomst:
- DE

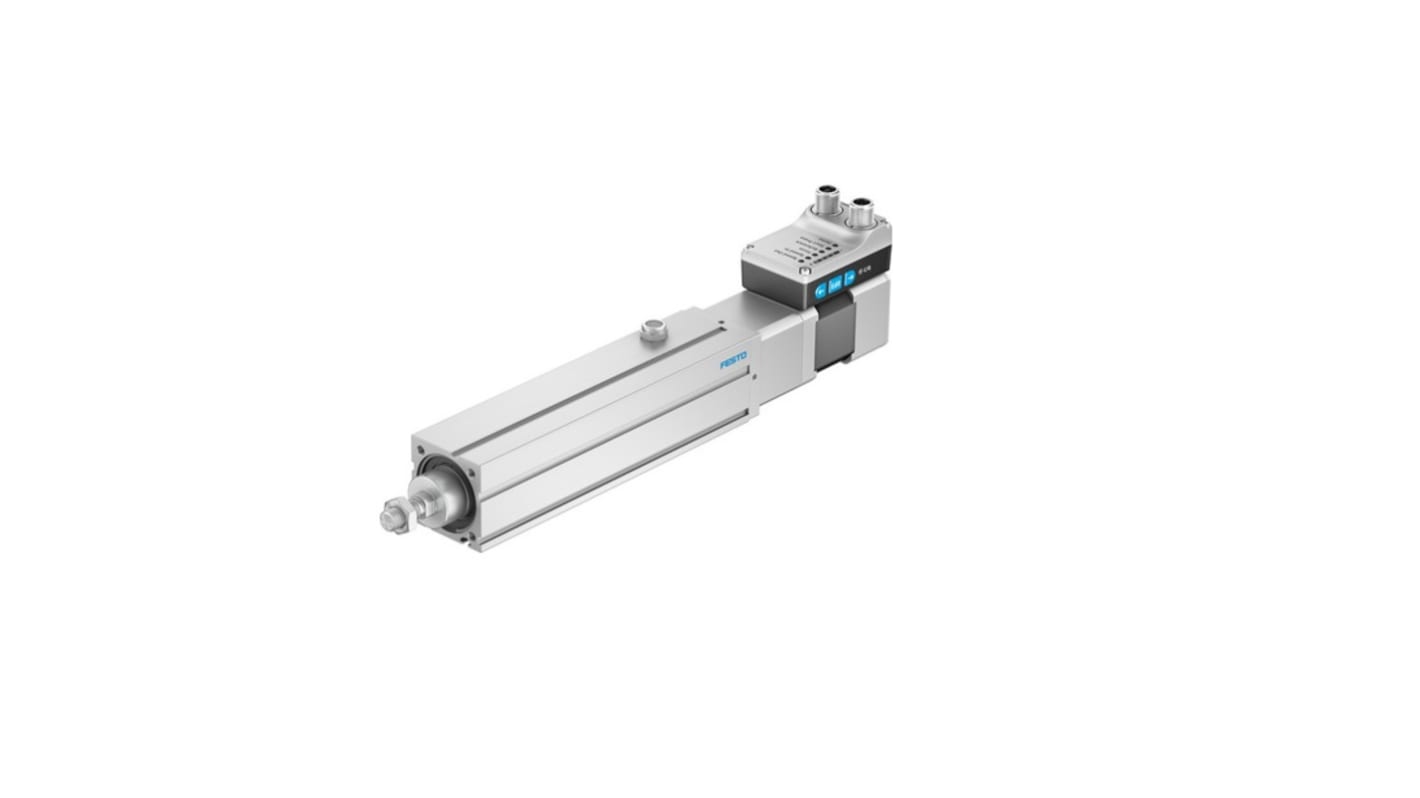

Festo EPCS-BS Series Micro Linear Actuator, 200mm Maximum Stroke Length, 24 kg Maximum Load - EPCS-BS-32-200-8P-A-ST-M-H1-PLK-AA, Numeric Part Number:8118274
This micro linear actuator is designed for precision motion control in various applications. With a maximum stroke length of 200mm, this electric cylinder unit delivers reliable performance and caters to diverse industrial automation needs. It utilises a stepper motor for efficient movement and can handle loads of up to 24 kg, making it ideal for tasks requiring exceptional strength and accuracy. The device operates on a 24V DC supply, ensuring compatibility with most electronic systems.
Features & Benefits
• 100% duty cycle allows continuous operation without overheating
• High-speed performance with a no-load speed of 210mm/s
• Integrated drive with a ball screw system enhances efficiency
• Repetition accuracy of ±0.02mm ensures precise positioning
• IP40 rating offers protection against dust and solid objects
• User-friendly interface with LED display for status indication
• High-speed performance with a no-load speed of 210mm/s
• Integrated drive with a ball screw system enhances efficiency
• Repetition accuracy of ±0.02mm ensures precise positioning
• IP40 rating offers protection against dust and solid objects
• User-friendly interface with LED display for status indication
Applications
• Utilised for precise motion in assembly systems
• Employed in robotics for accurate positioning tasks
• Suitable for material handling in production lines
• Applied in testing and measurement equipment for consistent results
• Employed in robotics for accurate positioning tasks
• Suitable for material handling in production lines
• Applied in testing and measurement equipment for consistent results
What is the maximum load capacity for lifting tasks?
The actuator is rated to lift a maximum load of 24 kg, providing strength for various applications.
How does the speed of the actuator compare under load conditions?
It achieves a maximum speed of 210mm/s with no load, although speed may decrease under heavier loads due to operational limits.
What kind of feedback does the actuator provide for performance monitoring?
It features a magnetic absolute single-turn encoder that allows for precise rotor position sensing.
Can the actuator be operated in various mounting positions?
Yes, the design supports optional mounting positions, providing flexibility for specific installation requirements.
